Q-100-0457

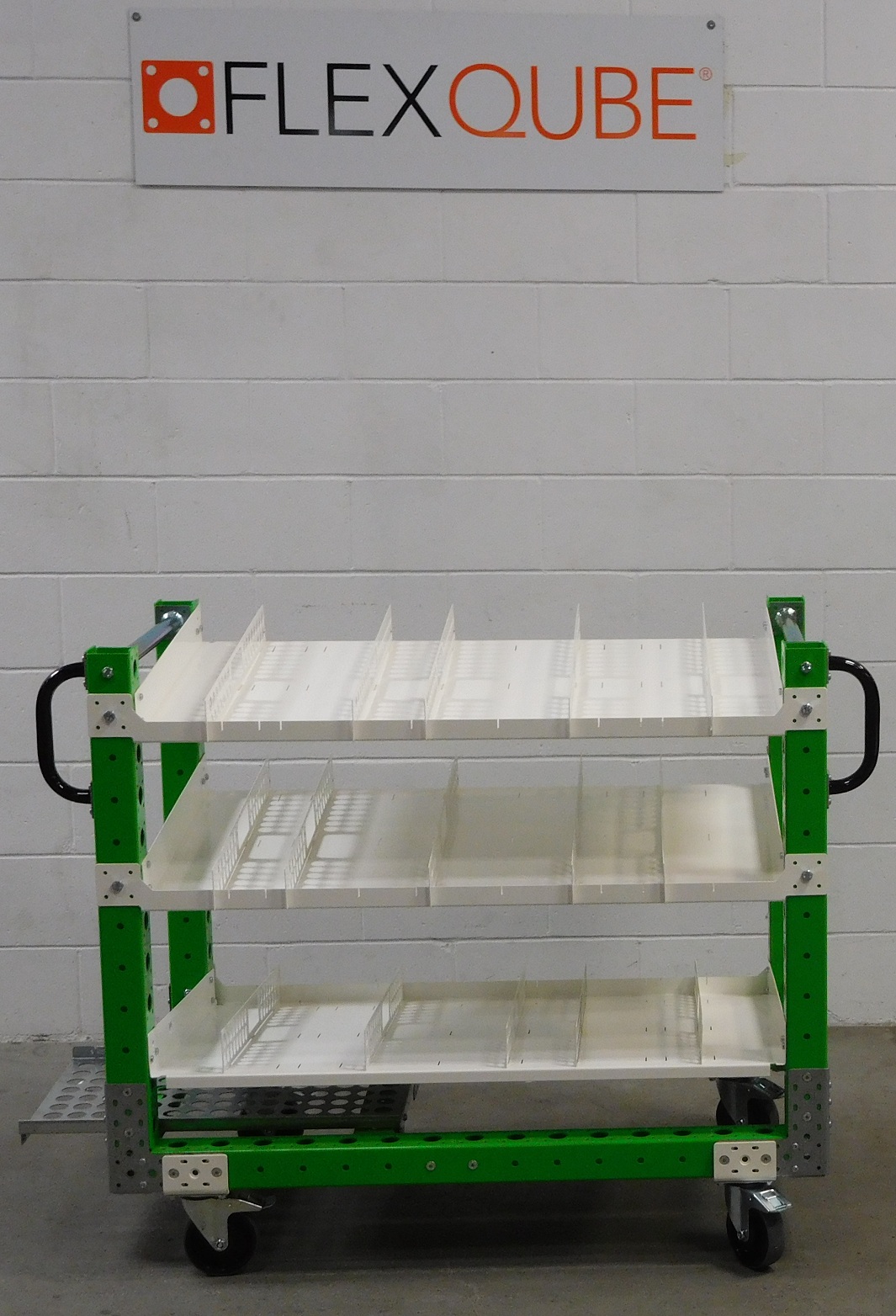

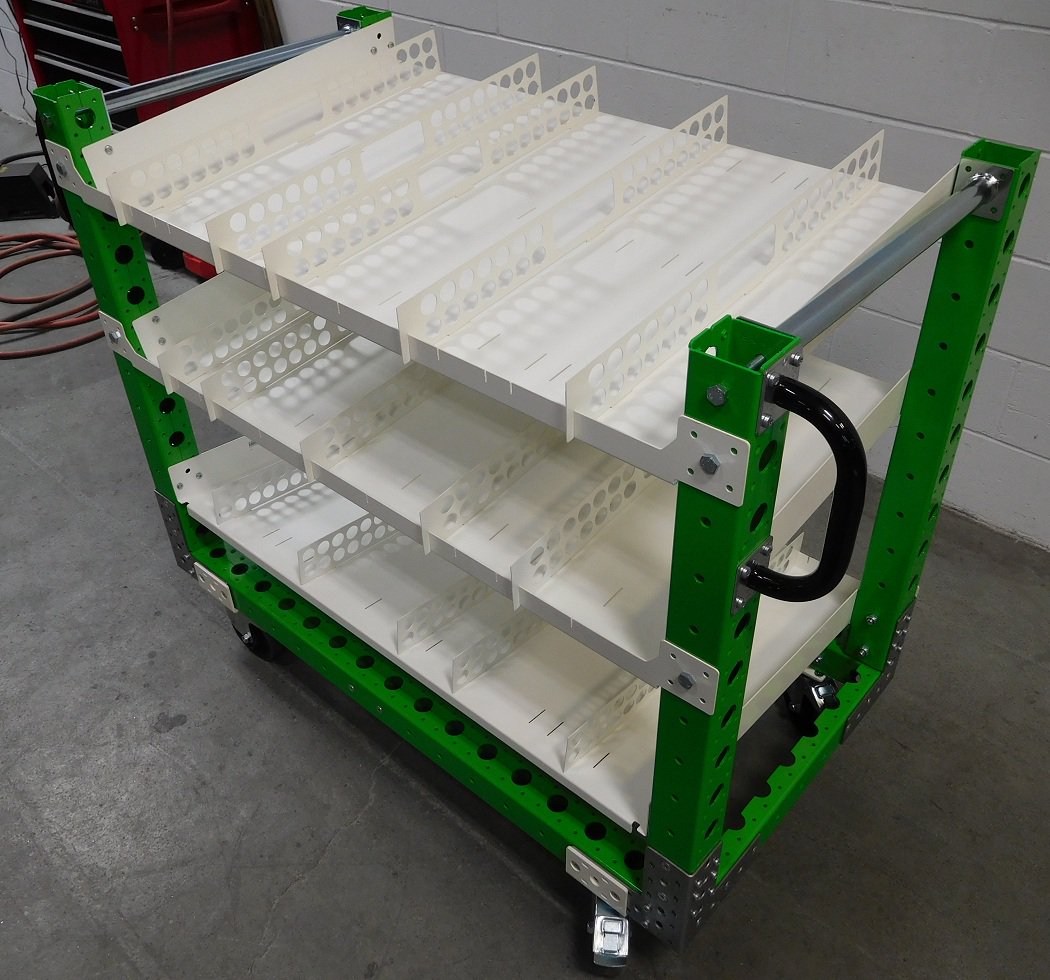

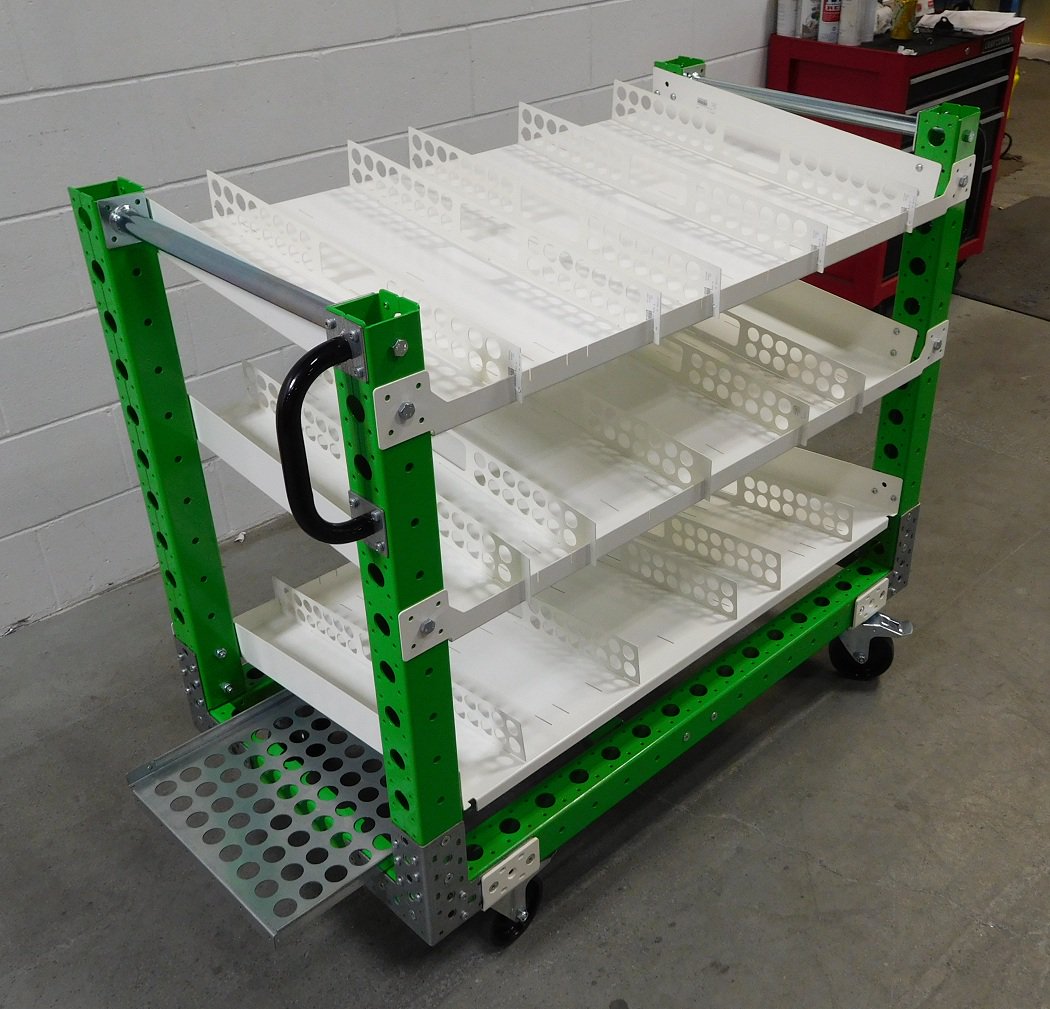

Flow Shelf Cart – 1190 x 630 mm

Cart used for storing and transporting totes and boxes. The shelves are equipped with dividers. The cart is also equipped with four nylon swivel casters and handlebars.

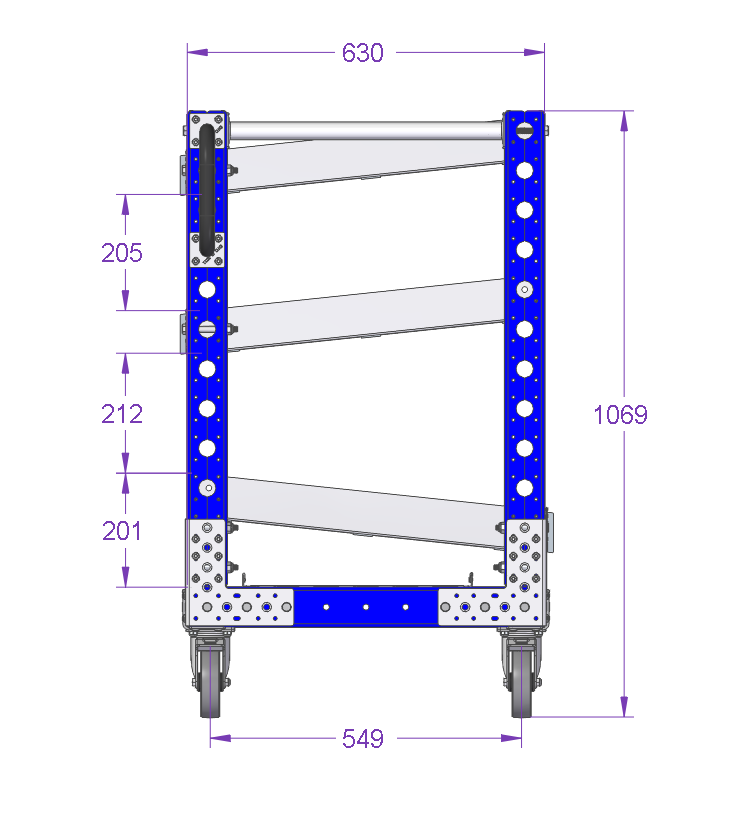

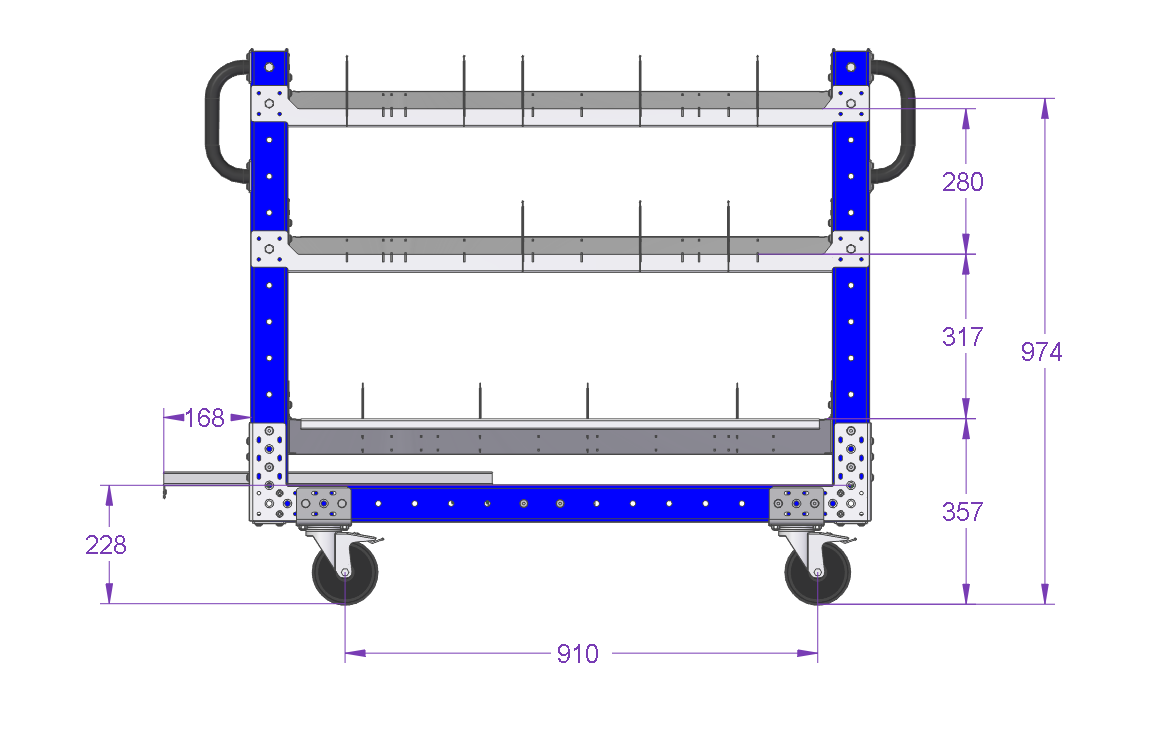

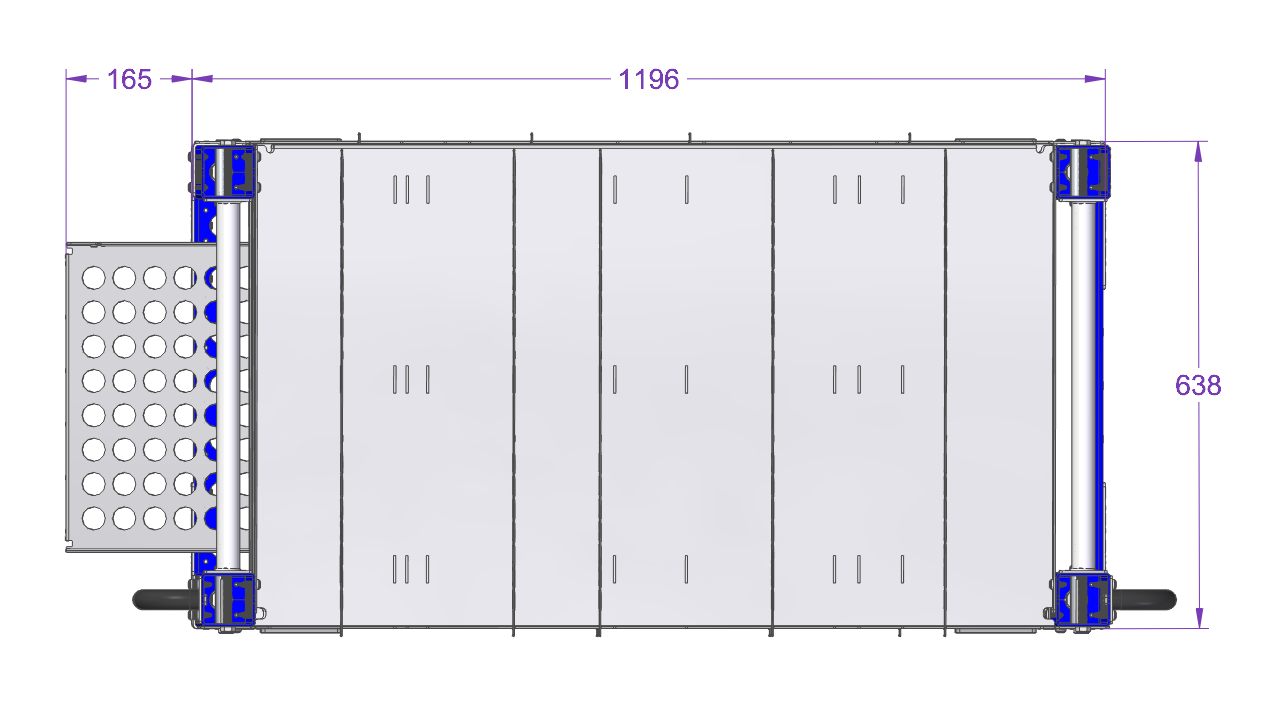

Technical specifications

Transportation method: Manual

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Length: 47 inch

Width: 25 inch

Load capacity: 463 lbs

Caster size: 5 inch

Caster Type: Gray

More info

This cart is used for storing and transporting totes and boxes. The shelves are equipped with dividers which can be moved to accomodate for different tote sizes. The two top levels are used for incoming material and the bottom level as a return shelf. The cart is also equipped with four nylon swivel casters, two with brakes and two handlebars making it easy to maneuver in tight areas.

Parts included
FlexTube™ 490 mm 2 Q-000-1247
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 840 mm FE 8 Q-001-1405
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ 490 mm FE 1 Q-001-1410
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 4 Q-002-1162
125 mm Swivel Caster with Brake 4 Q-004-1364
L Bracket Joint 2 Q-005-0031
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
RTE Plug 4 Q-005-1289
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Fully Threaded - M10 x 120 mm 4 Q-006-1037
Locking Nut M10 36 Q-006-1042
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 4 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 94 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Flow Shelf 1050 x 632 mm 3 Q-016-0232
Daughter Cart Shelf - 632 x 405 mm 1 Q-016-1049
