Kit cart for cardboard - 1240 x 820 mm
Kit cart for cardboard - 1240 x 820 mm
Kit cart for cardboard - 1240 x 820 mm
Kit cart for cardboard - 1240 x 820 mm
Q-100-0912

Kit cart for cardboard - 1240 x 820 mm

Custimized kit cart for transporting cardboard more efficiently.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 32 inch

Length: 49 inch

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Cardboard

Load capacity: 441 lbs

More info

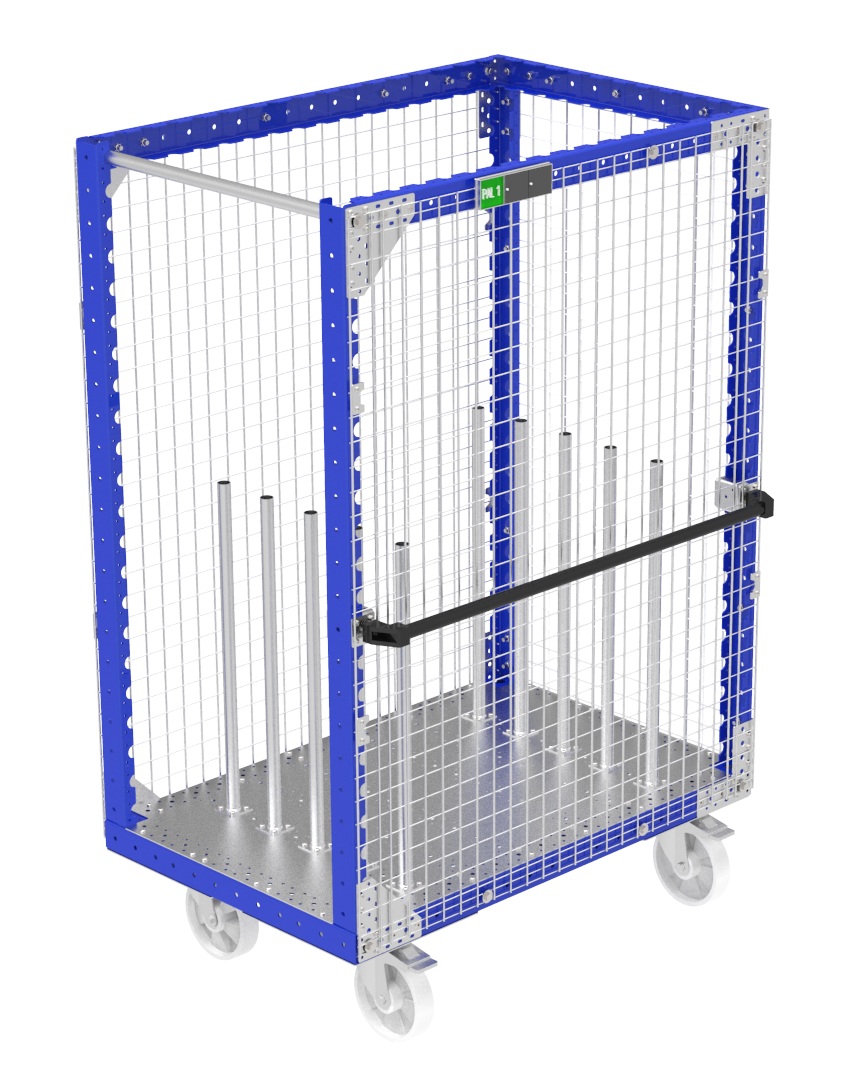

This kit-cart has been specially designed to hold cardboard in place. It is equipped with tubes coming up from the flat steel deck which act as a guide to hold the cardboard in place. It is equipped with wire mesh on the outside to ensure that the cardboard dont fall out of place. It is also equipped with a handle bar for manual transportation.

Parts included
FlexTube (One plate) 770 mm 10 Q-000-0141
FlexBeam STS FE - 820 mm 3 Q-001-0010
FlexQube 2 Q-001-1078
FlexBeam™ - 1470 mm FE 2 Q-001-1503
FlexBeam™ 1540 mm FE 2 Q-001-1504
FlexPlate™ 2 Q-002-1001
Flexplate™ M10 12 Q-002-1162
FlexPlate™ half 8 Q-002-1369
Swivel 200 mm Nylon Brake Center 2 Q-004-0044
Spring Threaded Tube Connectors 2 Q-005-0469
Triangle Joint 4 Q-005-0483
Triangular Caster Attachment w Edge 4 Q-005-0489
Label Adapter Plate - 210 x 70 mm 1 Q-005-0667
Handle for 30 mm Tube 2 Q-005-1240
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 4 Q-005-1426
M6 x 20 K6S 10.9 Round Head (black) 16 Q-006-1018
Washer 10,5 x 30 x 2,5 25 Q-006-1030
Locking Nut M10 63 Q-006-1042
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 30 mm 19 Q-006-1161
Hex Head - M10 x 40 2 Q-006-1208
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 136 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 60 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 26 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 4 Q-006-1502
Top Plate - 1240 x 820 mm 1 Q-016-0312
Outer Tube (No Plate) - 820 mm 1 Q-025-0820
Outer tube (No plate) - 1130 mm 1 Q-025-1130
