Kit Cart - 70 x 41 Inch
Kit Cart - 70 x 41 Inch
Kit Cart - 70 x 41 Inch
Kit Cart - 70 x 41 Inch
Q-100-0871

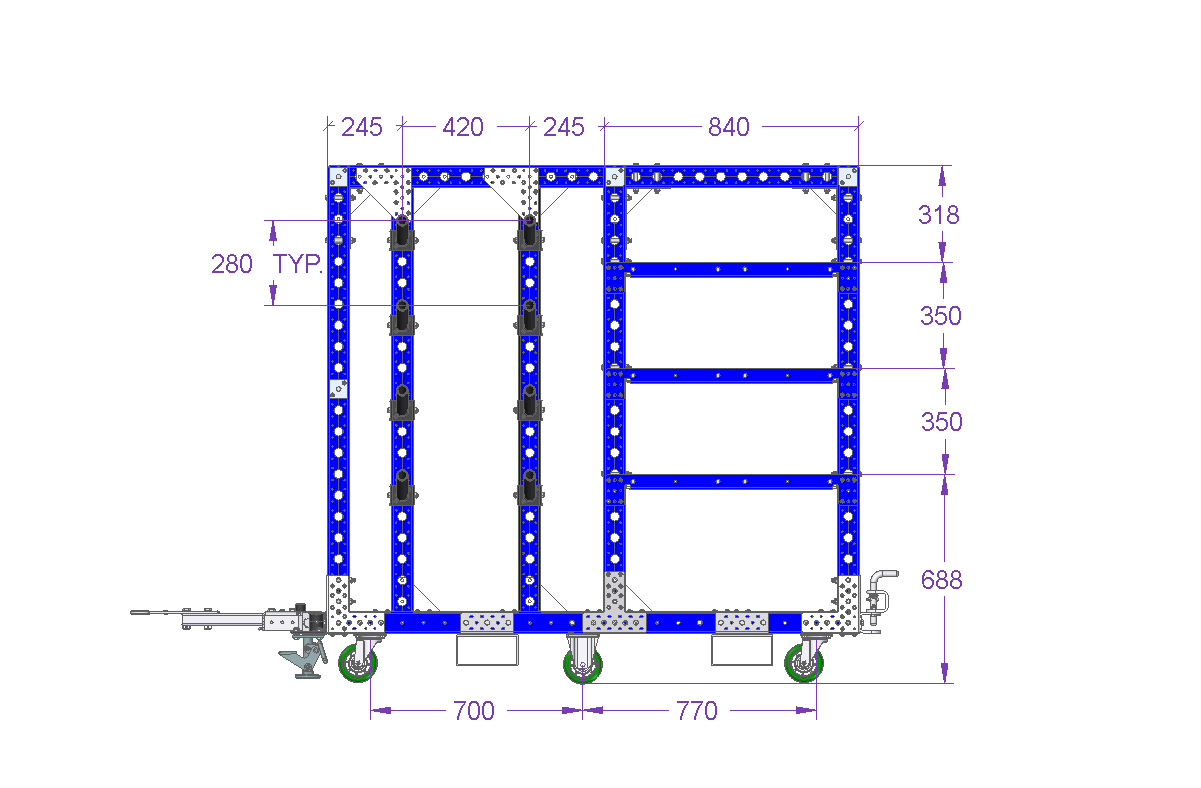

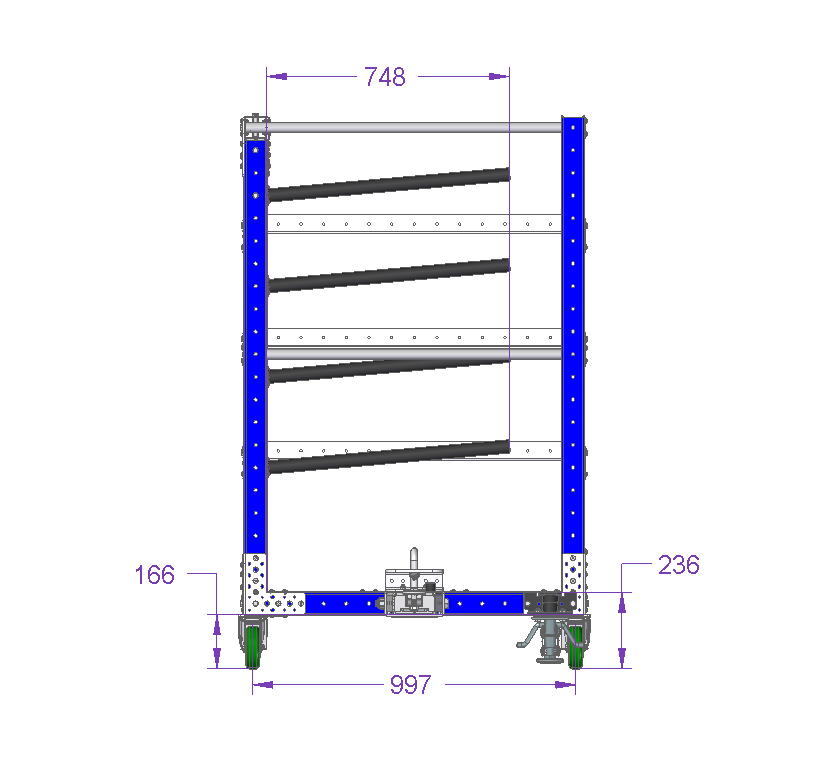

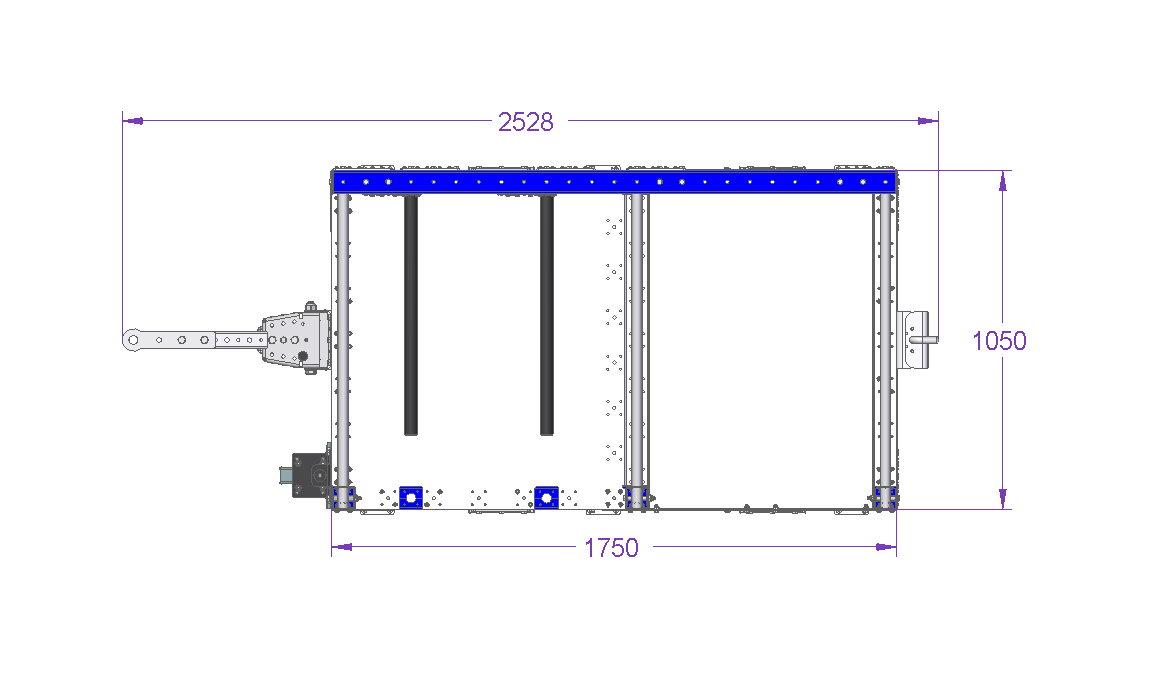

Kit Cart - 70 x 41 Inch

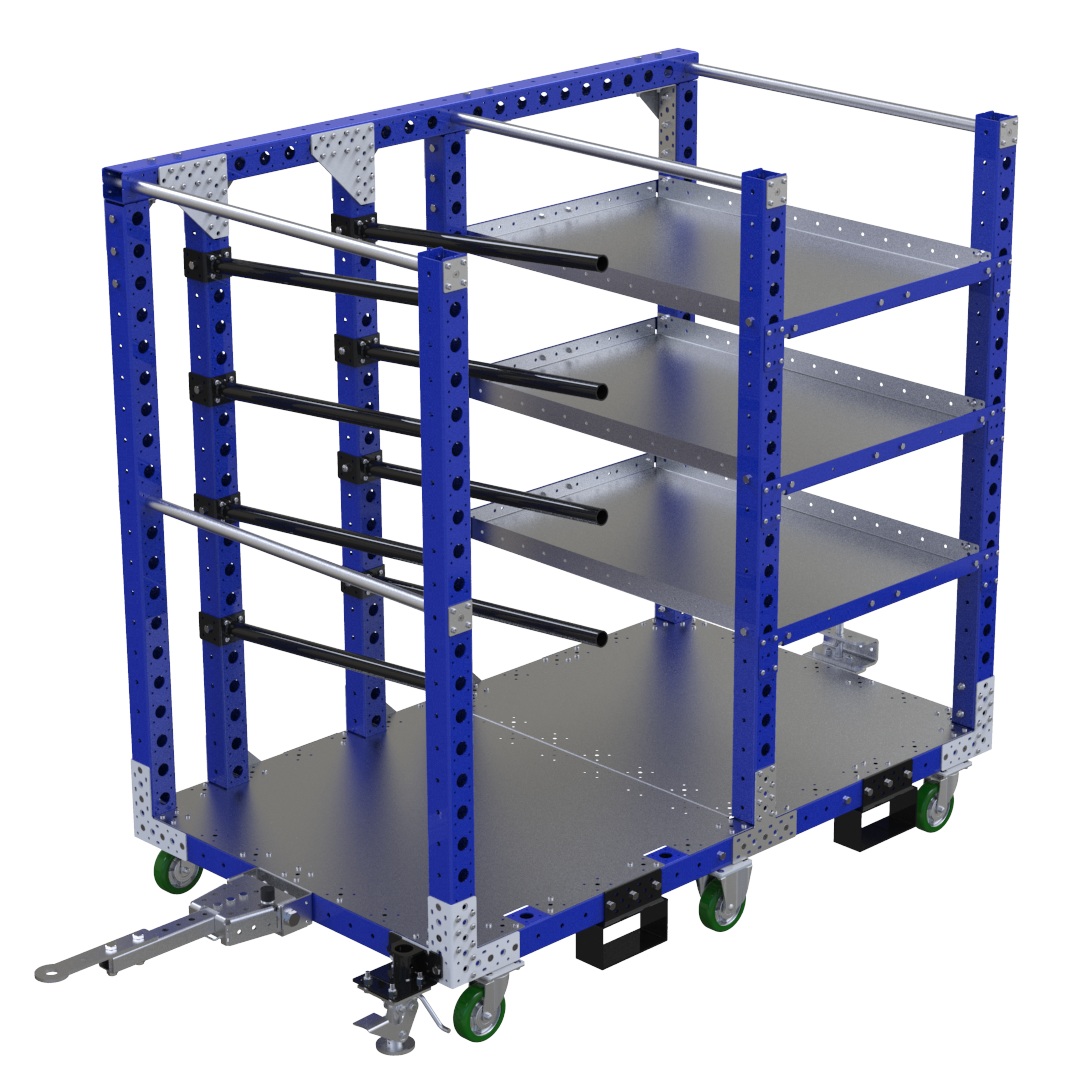

Kit cart with shelves and hangers, equipped with a tow bar, floor brake, fork pockets and six polyurethane casters.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Length: 69 inch

Width: 41 inch

Levels: 12

Load capacity: 904 lbs

Load Capacity per Level: 40 lbs, 198 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

Tuggable kit cart equipped with shelves and hangers is ideal for transporting two different types of materials. This industrial cart is equipped with a tow bar and handle bars on the short end for ergonomic handling. The cart is also equipped with specially designed fork tunnels to be lifted by a forklift.

Parts included
FlexBeam STS - 1680 mm 4 Q-001-1293
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 4 Q-001-1404
FlexBeam™ - 1400 mm FE 10 Q-001-1502
FlexBeam™ - 1470 mm FE 6 Q-001-1503
FlexBeam STS FE - 1750 mm 2 Q-001-1507
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 5 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
L Bracket Joint 7 Q-005-0031
T-Joint 1 Q-005-0065
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Fork Tunnel US - 80 mm 4 Q-005-0431
Spring Threaded Tube Connectors 8 Q-005-0469
Triangle Joint 10 Q-005-0483
Angled Tube Hanger - 750 mm 8 Q-005-0786
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 36 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 16 Q-006-1041
Locking Nut M10 110 Q-006-1042
Washer M10 16 Q-006-1043
Hex Head - M8 x 16 mm 24 Q-006-1120
Hex Head - M10 x 90 mm 64 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 48 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Countersunk - M8 x 20 8 Q-006-1282
Extra Low Head - M10 x 90 mm 25 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 305 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 1 Q-006-1502
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Angled Plate - 828 mm 6 Q-016-0289
Standard Flat Shelf - 805 x 910 mm 3 Q-016-0308
Top plate - 1050 x 910 mm 1 Q-016-0474
Top Plate Half - 1050 x 840 mm 1 Q-016-0475
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
Outer Tube (No Plate) - 1050 mm 4 Q-025-1050
