Kit Cart 41 x 30 inch
Kit Cart 41 x 30 inch
Kit Cart 41 x 30 inch
Kit Cart 41 x 30 inch
Q-100-0376

Kit Cart 41 x 30 inch

Push kit cart with three shelves, two fixed and one extendable as well as a handlebar and four nylon swivel casters.

100% free. No commitment.

Automotive 478 lbs
load capacity
Get a quote
Close

Kit Cart 41 x 30 inch

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications
Transportation method Manual
Category Flat Shelf, Kitting Carts
Industry Automotive, Commercial Vehicles, Tier One Suppliers
Length 58 inch
Load capacity 478 lbs
Levels 2
Load Capacity per Level 198 lbs
Width 30 inch
Caster size 8 inch
Caster Type Nylon
More info

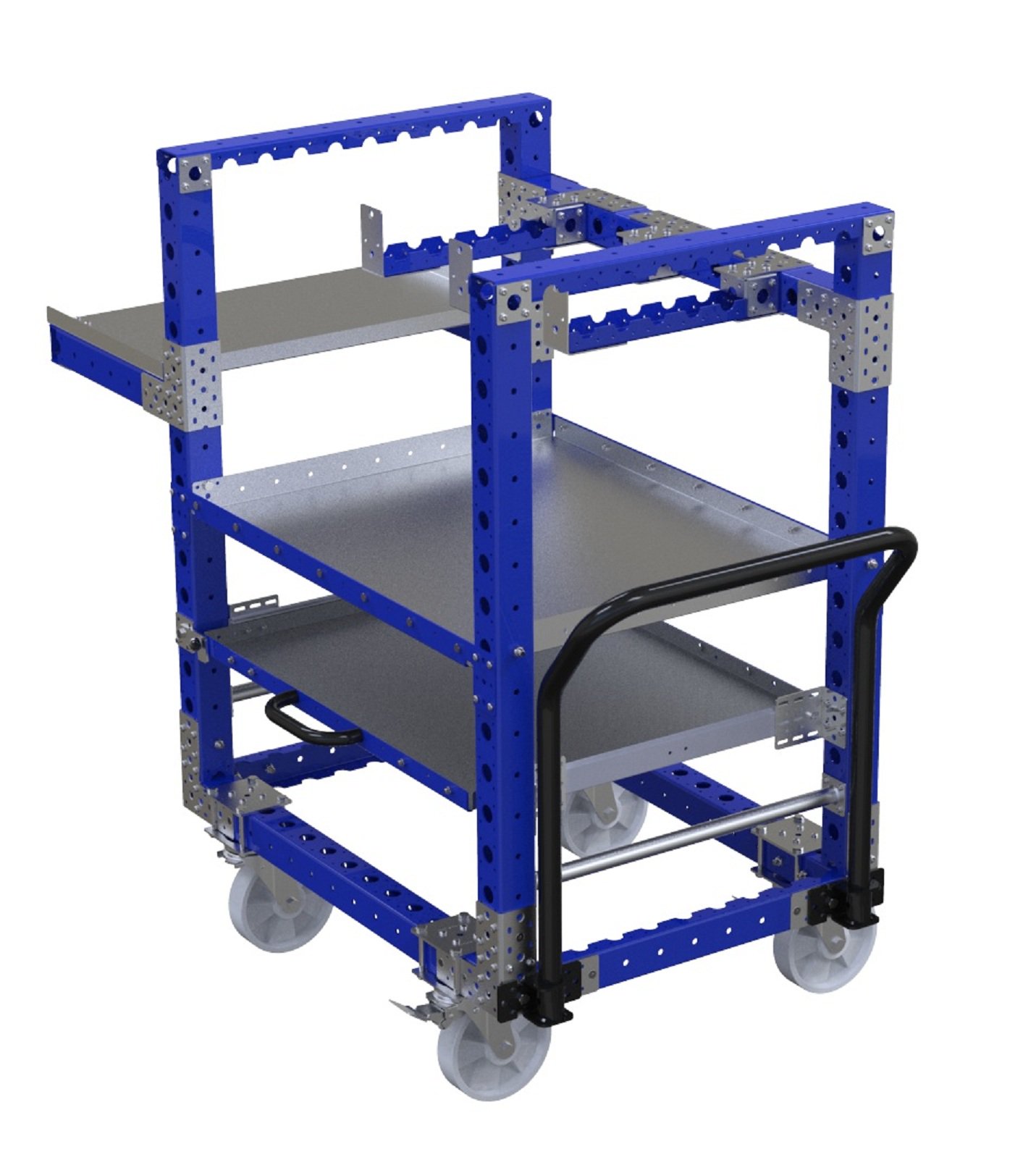

This push kit cart was custom designed to transport a mix of boxes, coils, and hoses. The cart has three shelves, one extendable at the bottom, one fixed flat shelf, and one smaller side shelf. On top, we find three robust hangers in the form of FlexBeams. The cart is also equipped with a handlebar and four nylon swivel casters, two with brakes making it easy to maneuver in tight areas.

Parts included
FlexTube™ 630 mm 2 Q-000-1312
FlexQube 3 Q-001-1078
FlexBeam™ 1120 mm 8 Q-001-1301
FlexBeam™ 980 mm 4 Q-001-1303
FlexBeam™ 420 mm 4 Q-001-1311
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ 770 mm FE 5 Q-001-1406
FlexBeam™ 420 mm FE 3 Q-001-1411
FlexPlate™ 20 Q-002-1001
Stiffener - Outside 3 Q-002-1050
Flexplate™ M10 1 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Modular attachment plate for telescopic lists 4 Q-005-0149
5321-0070 Telescopic Slide 700 mm - Closed 2 Q-005-0261
Spherical Knob 1 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 14 Q-005-1426
Heavy Duty Joint M10 7 Q-005-1580
Locking Handle Plate 1 Q-005-1880
M6 x 20 K6S 10.9 Round Head (black) 6 Q-006-1018
Hex Head Fully Threaded - M8 x 20 mm 2 Q-006-1019
Hex Head - M10 x 25 mm 5 Q-006-1041
Locking Nut M10 62 Q-006-1042
Locking Nut M6 18 Q-006-1050
Round Head - M6 x 12 mm 12 Q-006-1051
Old Part: M6 x 12 mm Allen Head 2 Q-006-1080
Hex Head - M8 x 16 mm 24 Q-006-1120
Hex Head - M10 x 90 mm 20 Q-006-1132
Locking Nut M8 24 Q-006-1181
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 320 Q-006-1384
Low Allen Head - M10 x 16 mm 10 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Handle Bar 210 mm M8 1 Q-015-1037
Top plate with edge lip - 700 x 455 mm 1 Q-016-0186
Telescopic Shelf - 871 x 700 mm 1 Q-016-0187
Flat Shelf - 910 x 770 mm 1 Q-016-0188
Angled Plate - 1038 mm 2 Q-016-0189
Angled plate for Telescopic Shelf - 861 mm 2 Q-016-0190
