Q-100-1042

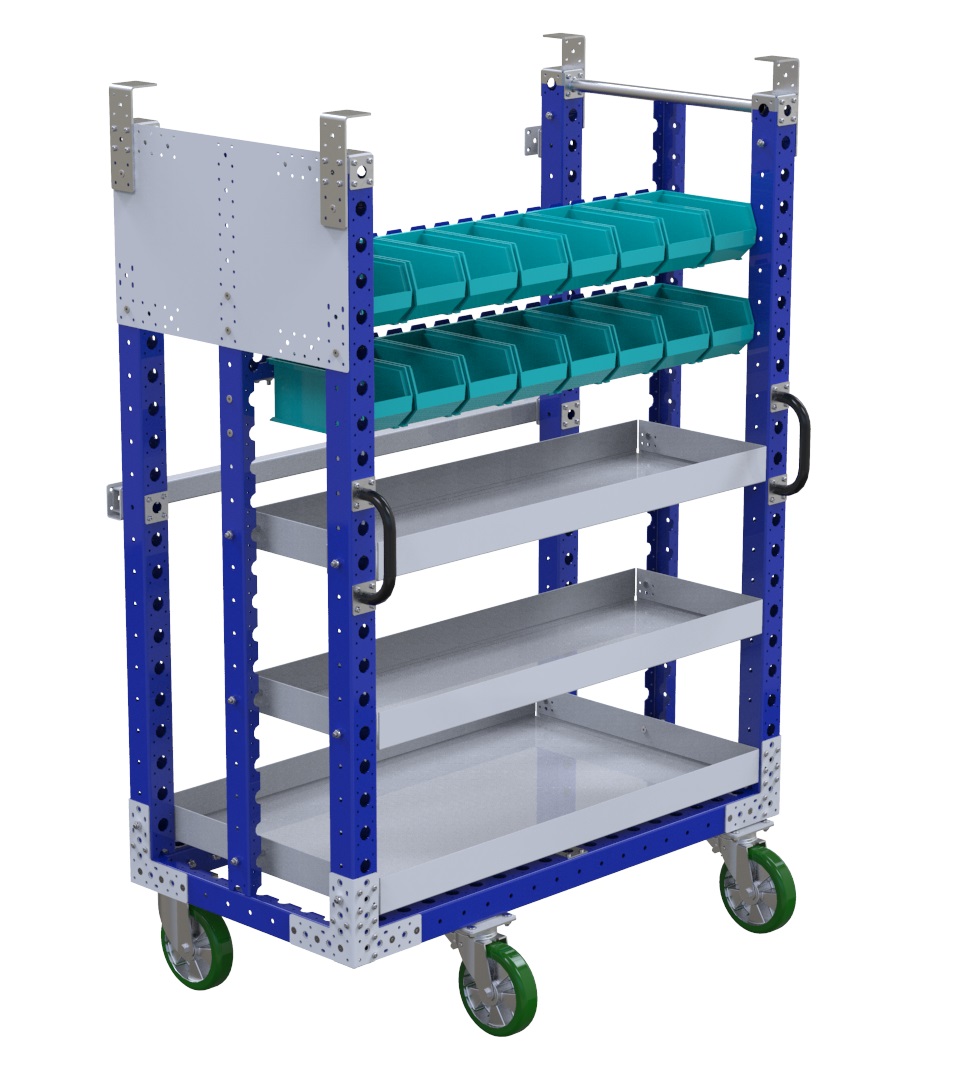

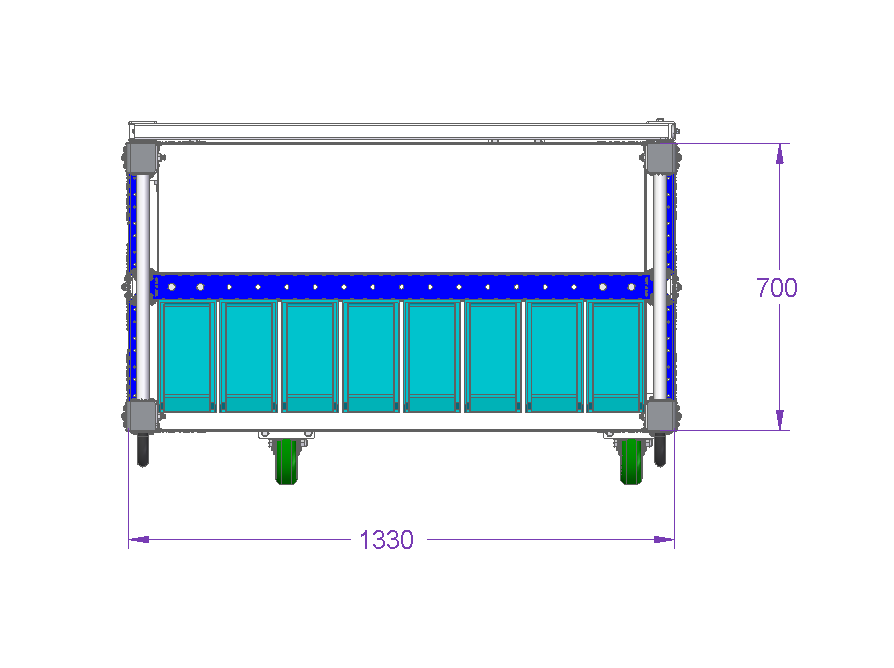

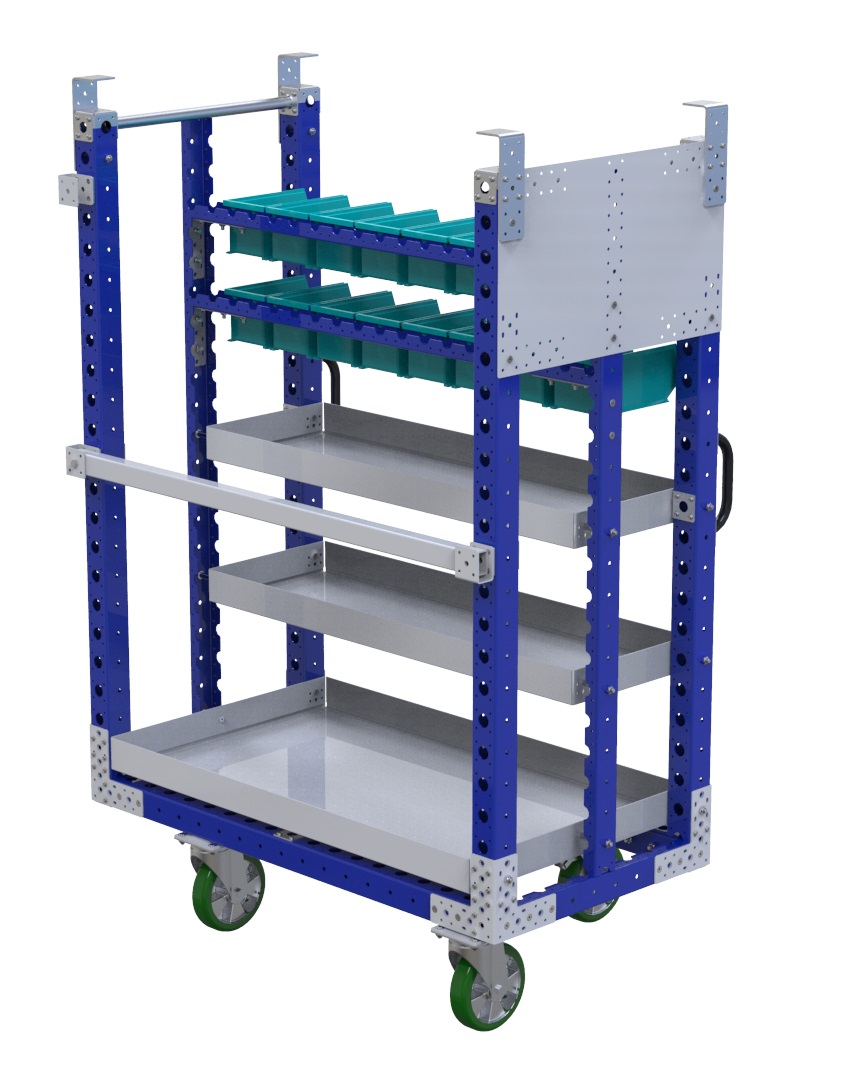

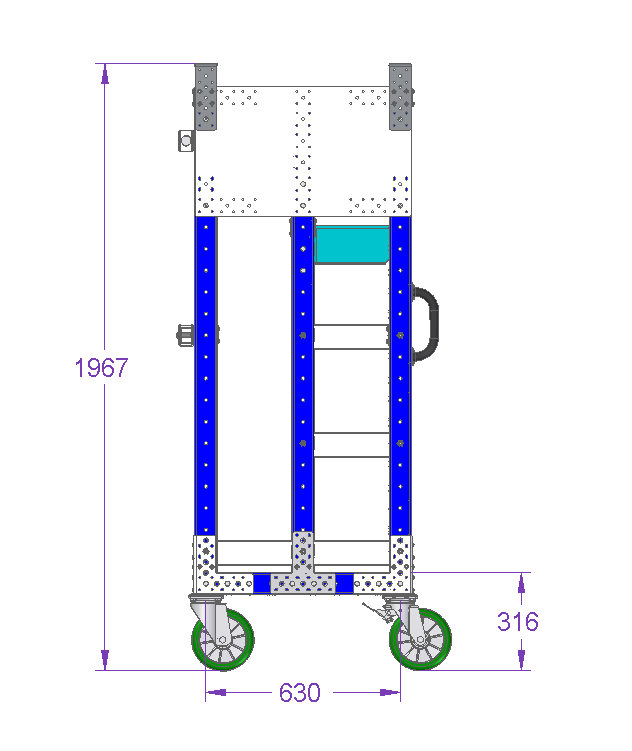

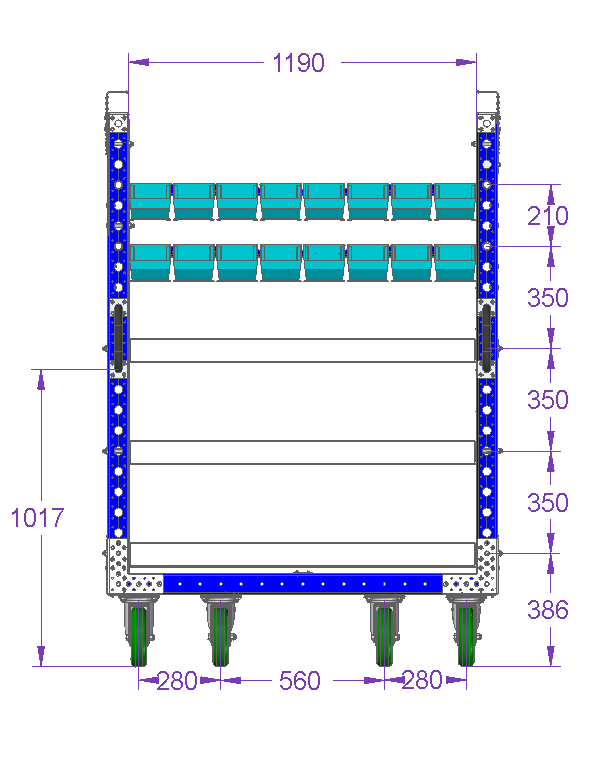

Kit cart - 1330 x 700 mm

Specially designed kit cart for presenting materials to the operators along the assembly line

Technical specifications

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Caster size: 8 inch

More info

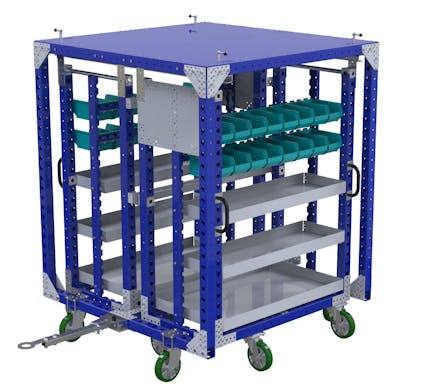

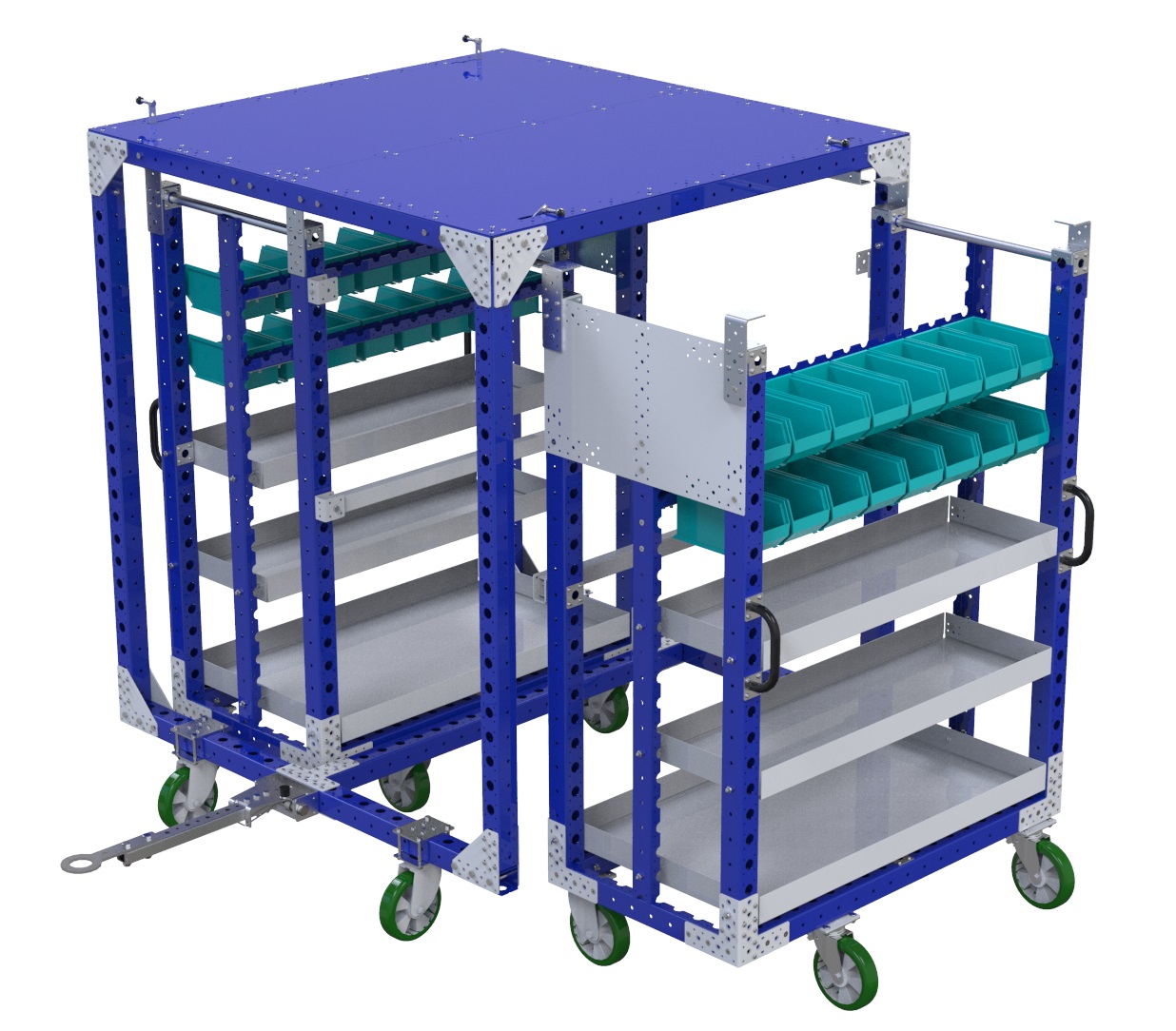

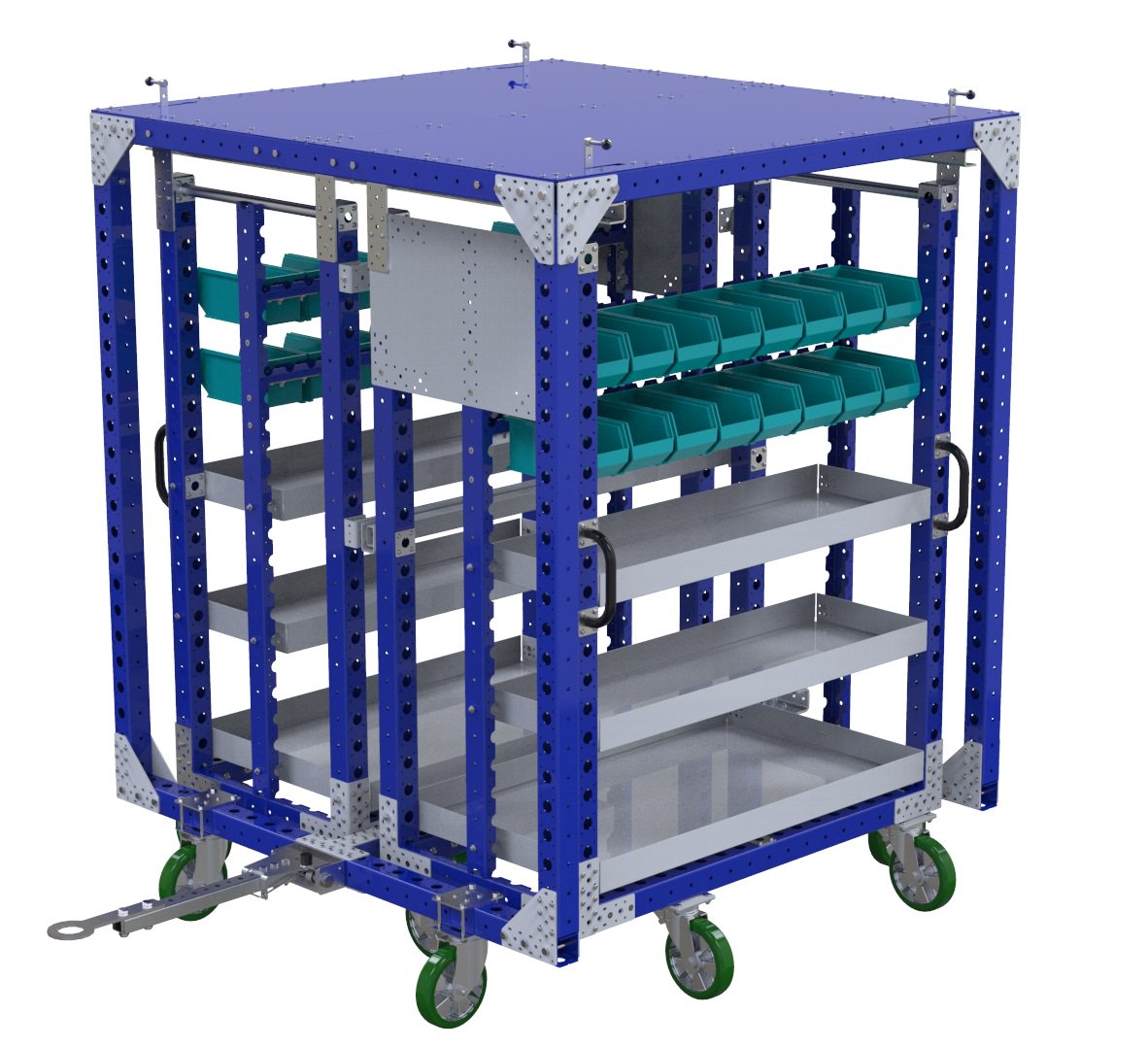

This kit-cart is designed to fit into one of FlexQube’s mother frames (learn more about mother-daughter solutions). This kit cart is equipped with small flat shelves all equipped with an edge to hold bins, totes and boxes in place. It also has hanging bins across the top to hold smaller materials. This kit-cart was designed to be disconnected from the mother frame and left at work and assembly stations. The mother frame for this kit cart is Q-100-1043.

Parts included
FlexTube™ 560 mm 2 Q-000-1182
FlexQube 4 Q-001-1078
FlexBeam™ - 1540 mm 10 Q-001-1295
FlexBeam™ - 1260 mm 6 Q-001-1299
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 16 Q-002-1001
Flexplate™ M10 10 Q-002-1162
Polyurethan 200 mm with Brake IP2 2 Q-004-1210
Caster Polyurethane - 200 mm Swivel 2 Q-004-1211
L Bracket Joint 4 Q-005-0031
L-shape Daughter cart guide 4 Q-005-0258
M10 - Collet 40 mm 1 Q-005-0397
Daughter locking/ Rotation plate 3 Q-005-0400
Cylindrical magnet w.threaded rod - 32 mm 1 Q-005-0410
Countersunk Wheel Attachment - 105 x 77.5 mm 4 Q-005-0647
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 18 Q-005-1426
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 73 Q-006-1042
Washer M10 28 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 70 mm 1 Q-006-1117
Hex Head - M8 x 16 mm 4 Q-006-1120
M8 Washer 4 Q-006-1183
Extra Low Head - M10 x 90 mm 28 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 28 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 36 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Flat shelf w. 3- edge lip - 1190 x 700 mm 1 Q-016-0424
Flat shelf w. 3"- edge lip - 1190 x 385 mm 2 Q-016-0468
Steel label plate - 700 x 420 mm 1 Q-016-0478
US Daughter Cart Locking VKR 1300 mm 1 Q-017-0061
