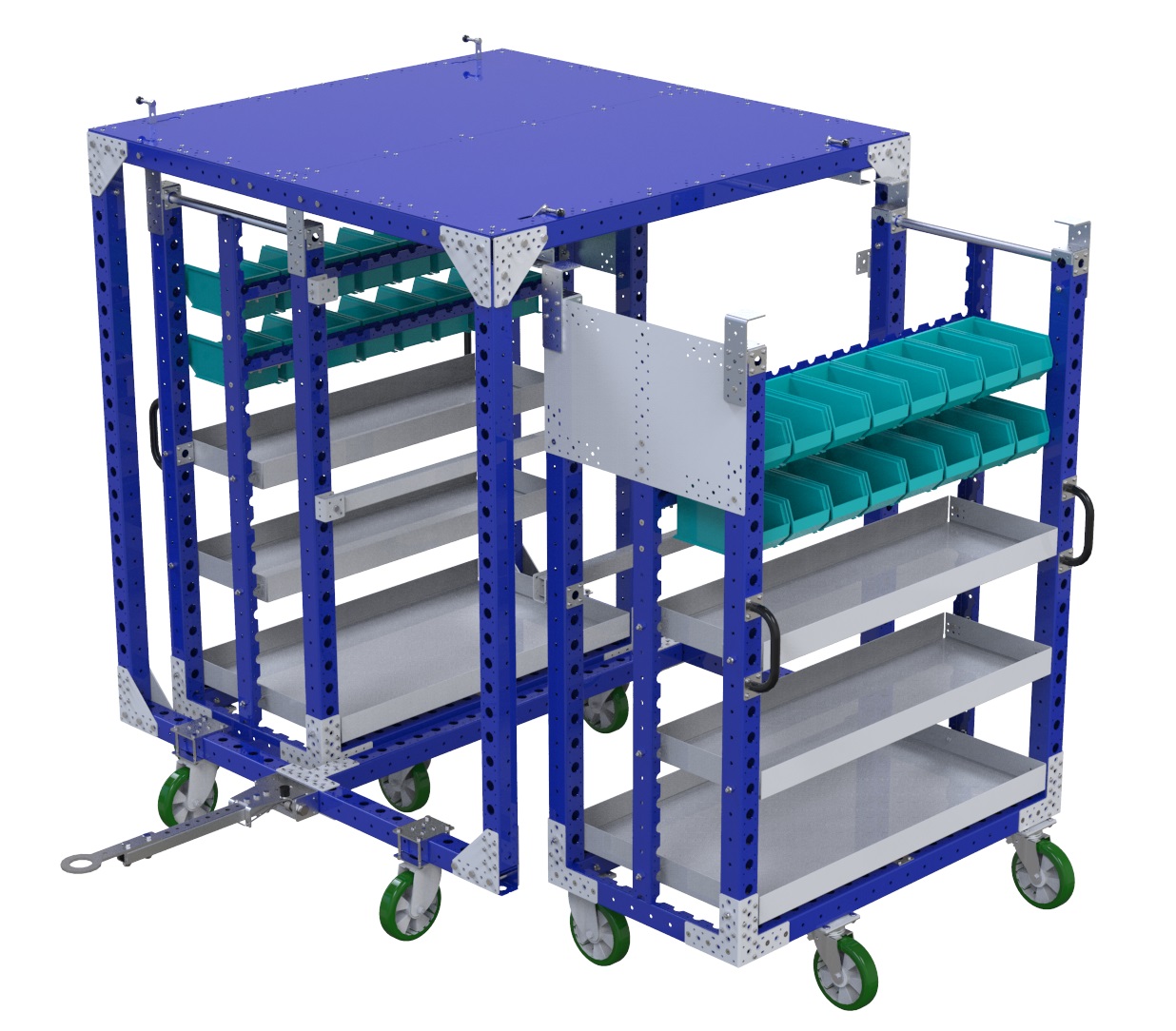

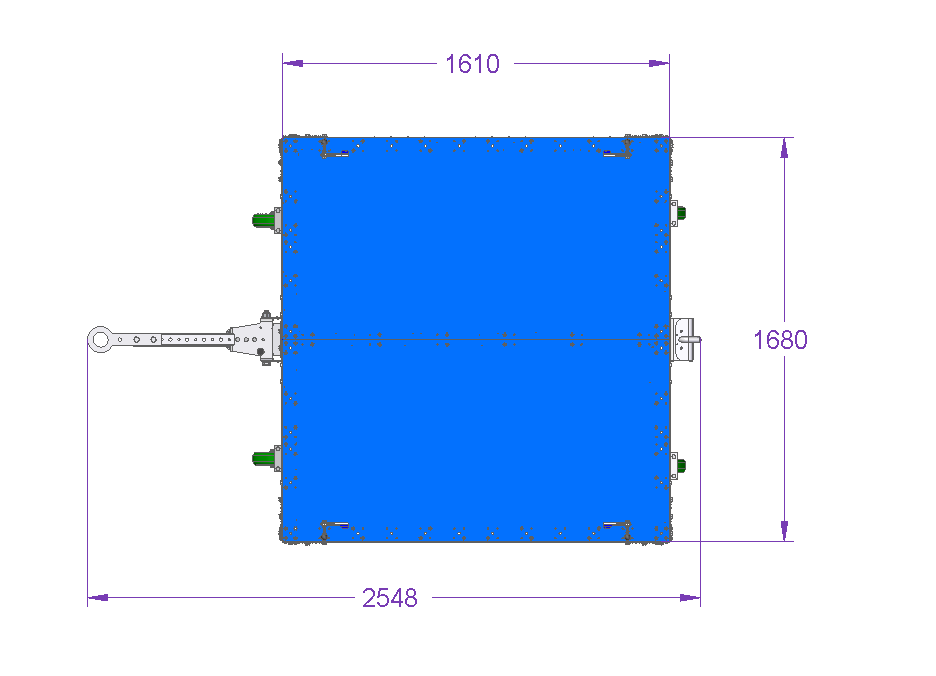

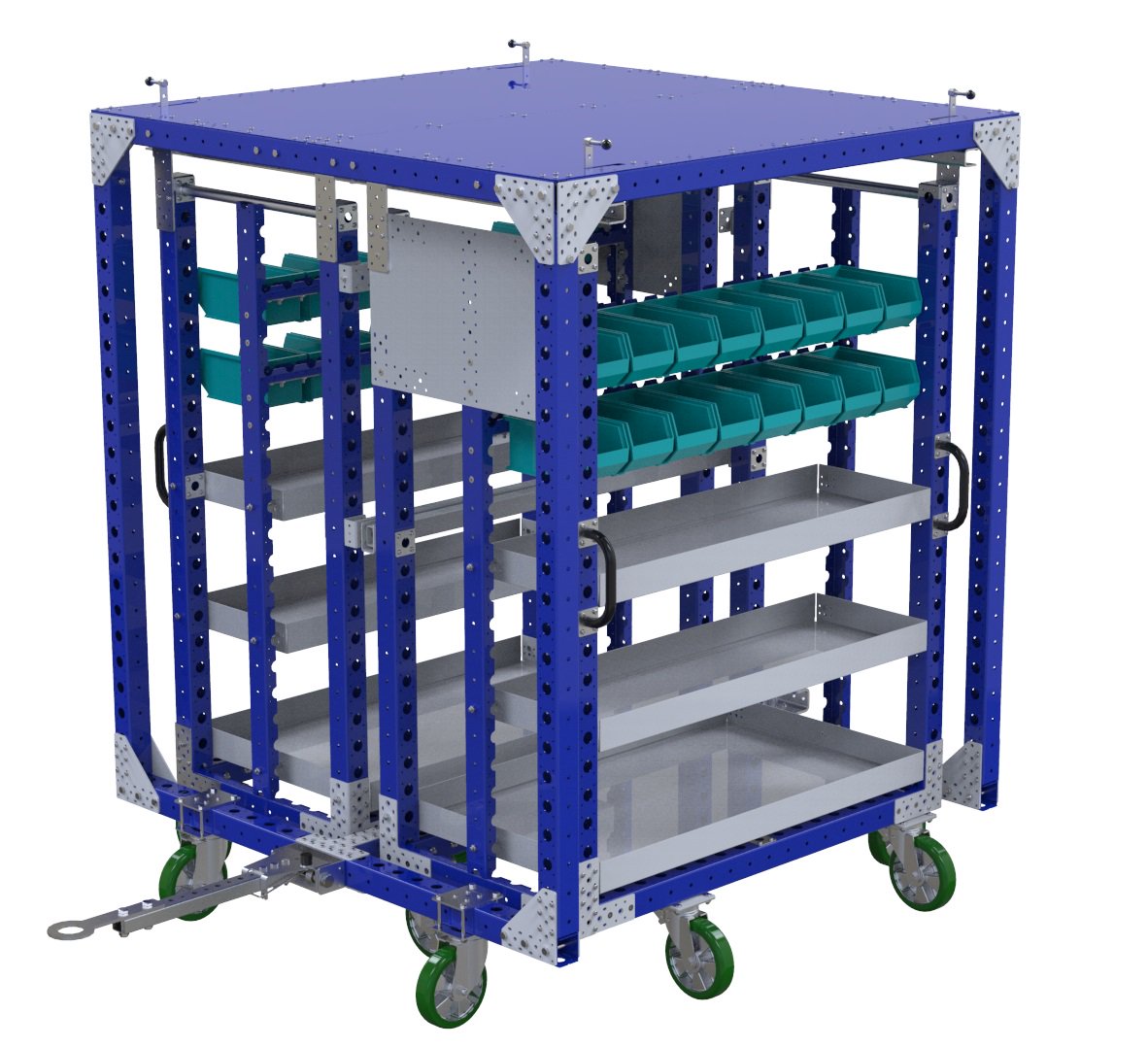

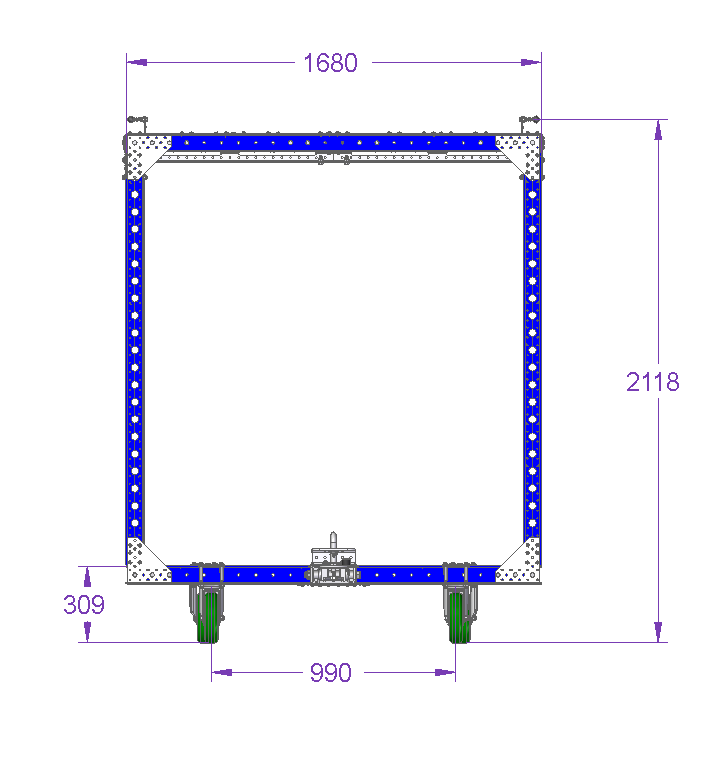

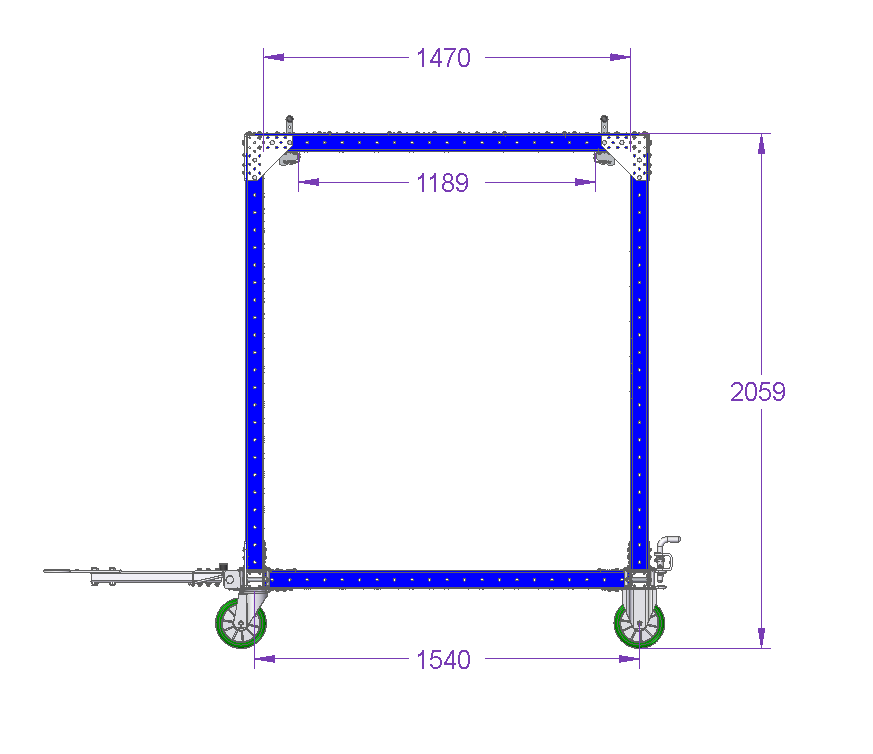

Back Back Q-100-1043 Mother cart 2 in 1 - 1680 x 1610 mm Standard two in 1 mother frame to improve facilityi efficiency. Get a quote 100% free. No commitment. Get a quote Close Mother cart 2 in 1 – 1680 x 1610 mm Email Phone Location Comments (optional) Attach a file (optional) Upload Maximum file size is 10mb. We will get back to you within 24 hours. (Unless it’s during holidays.) Create your own cart Boost Efficiency Heavy-duty & modular Technical specifications Transportation method Mother-Daughter Cart, Tugger Industry Automotive, Commercial Vehicles, Tier One Suppliers Length 66 inch Width 63 inch Height 81 inch Caster size 8 inch Type of tow bar Tongue and Hitch Parts included FlexBeam™ - 1540 mm 4 Q-001-1295 FlexBeam™ - 1470 mm FE 4 Q-001-1503 FlexBeam™ 1540 mm FE 2 Q-001-1504 FlexBeam STS FE - 1680 mm 14 Q-001-1506 Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065 Caster Polyurethane - 200 mm Swivel 2 Q-004-1211 Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212 L Bracket Joint 8 Q-005-0031 T-Joint 2 Q-005-0065 Daughter Cart Catcher - 840 mm 4 Q-005-0077 M10 - Collet - 6 mm 4 Q-005-0105 Triangle Joint 18 Q-005-0483 M8 Damper - GN352-30-25-M8-S-55 2 Q-005-0648 Towing Hole 2 Q-005-1056 Spherical Knob 4 Q-005-1146 64 mm FlexBeam™ Collet 36 Q-005-1426 Daughter Cart Locking Plate 4 Q-005-1730 Allen Head - M6 x 30 mm 1 Q-006-1012 Washer 10,5 x 30 x 2,5 2 Q-006-1030 Hex Head - M14 x 60 mm 2 Q-006-1036 Locking Nut M14 2 Q-006-1039 Hex Head - M10 x 25 mm 16 Q-006-1041 Locking Nut M10 87 Q-006-1042 Washer M10 2 Q-006-1043 Locking Nut M6 1 Q-006-1050 Hex Head - M10 x 95 mm 16 Q-006-1088 Hex Head - M10 x 90 mm 50 Q-006-1132 Hex Head - M10 x 30 mm 2 Q-006-1161 Locking Nut M8 2 Q-006-1181 Nut M10 4 Q-006-1195 Self Tapping Screw M6 Torx H60 x 16 264 Q-006-1384 Hex Head Fully Threaded - M10 x 60 mm 7 Q-006-1502 Compression Spring for US Tow Hitch 1 Q-012-0007 Top Plate for Mother - 1610 x 840 mm 2 Q-016-0532 US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014 Handle for Tow Hole 1 Q-017-0022 Tow Hinge Module 1 Q-017-0059 Towing Lip - 2,5 Inch 1 Q-017-1012 Show all More info This 2 in 1 Mother cart is designed to house 2 kit-carts inside. The kit-carts can then be unlocked from this frame and stored at different work and assembly stations, this improves the efficiency of the work flow within the facility (learn more about mother-daughter solutions). This mother frame is equipped with a drop pin and hitch tow bar to be towed using a tugger train system (learn more about transitioning from forklifts to tugger trains here). The kit-carts to fit into this mother frame are Q-100-1042.
