Flow Rack - 2170 x 7350 mm
Flow Rack - 2170 x 7350 mm
Flow Rack - 2170 x 7350 mm
Flow Rack - 2170 x 7350 mm
Flow Rack - 2170 x 7350 mm
Q-100-1494

Flow Rack - 2170 x 7350 mm

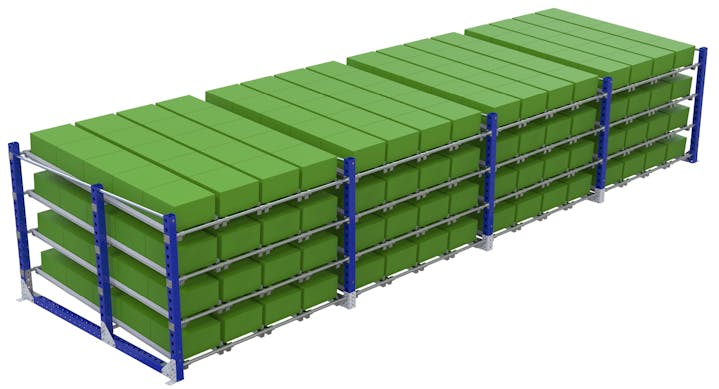

This four-level roller rack station is designed to improve the flow of bins totes and boxes.

Technical specifications

Transportation method: Manual

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

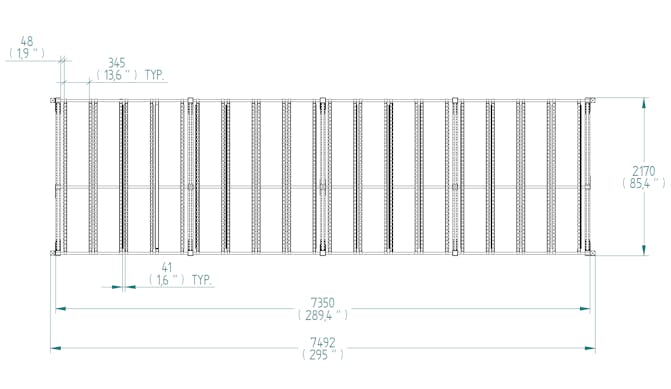

Length: 289 inch

Width: 85 inch

Load capacity: 4799 lbs

More info

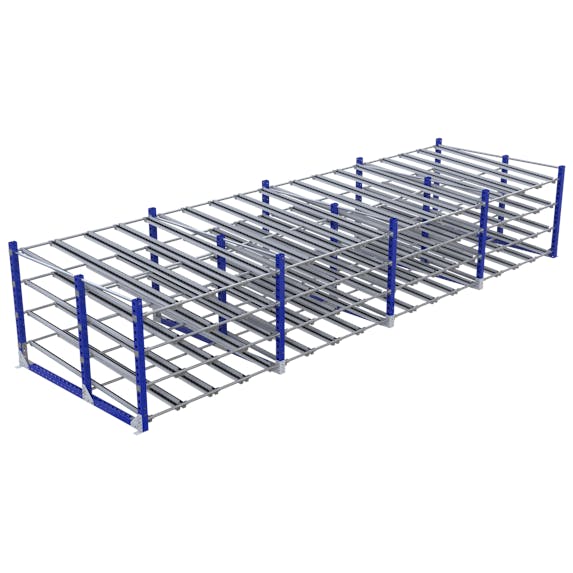

This large flow rack is used to store and move boxes. It is equipped with four flow shelves which are equipped with high-quality steel rollers which are installed according to the customer’s operation. This is a straightforward but yet robust solution for handling your materials. The quantity of levels and rollers is customizable depending on the requirements.

Parts included
Flexplate™ M10 80 Q-002-1162
RR Guide 10 mm Offset - 1980 mm 128 Q-003-0166
Roller Rail - 2040 mm 128 Q-003-0167
Rail Support No Stop 128 Q-003-1021
Rail Support Drop 30 mm Stop 128 Q-003-1022
L Bracket Joint 10 Q-005-0031
T-Joint 6 Q-005-0065
L-Bracket Joint - 70 x 70 mm 4 Q-005-0429
Spring Threaded Tube Connectors 208 Q-005-0469
Triangle Joint 6 Q-005-0483
64 mm FlexBeam™ Collet 40 Q-005-1426
Heavy Duty Joint M10 6 Q-005-1580
Fully Threaded - M10 x 120 mm 8 Q-006-1037
Locking Nut M10 55 Q-006-1042
Hex Head - M10 x 90 mm 28 Q-006-1132
Hex Head Fully Threaded - M10 x 50 mm 16 Q-006-1343
Extra low head [1,5 mm] M10x40 mm 72 Q-006-1361
Extra Low Head - M10 x 90 mm 21 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 496 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 26 Q-006-1410
FlexBeam FE - 1330 mm 10 Q-021-1330
FlexBeam™ FE - 2030 mm 10 Q-021-2030
Outer Tube (No Plate) - 840 mm 5 Q-025-0840
Outer Tube (No Plate) - 1120 mm 5 Q-025-1120
Outer Tube (No Plate) - 1744 mm 24 Q-025-1744
Outer Tube (No Plate) - 1817 mm 24 Q-025-1817
