Flow Rack - 1820 x 1540 mm
Flow Rack - 1820 x 1540 mm
Flow Rack - 1820 x 1540 mm
Flow Rack - 1820 x 1540 mm
Q-100-0873

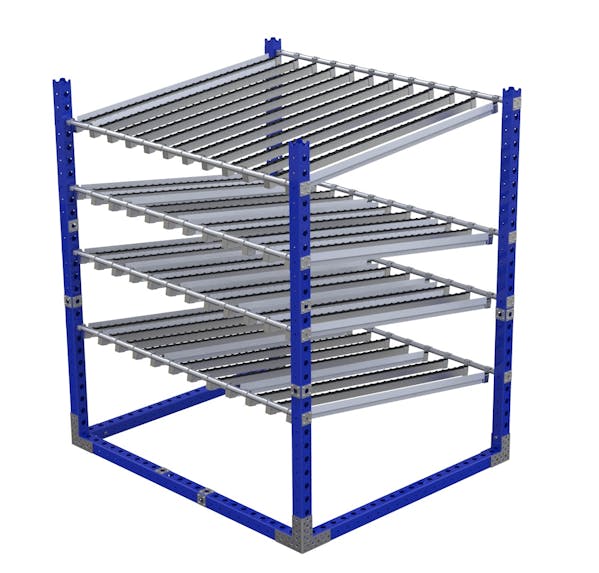

Flow Rack - 1820 x 1540 mm

Standard flow rack for presenting materials at the assembly line.

Technical specifications

Category: Conveyor, Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 72 inch

Width: 61 inch

Levels: 4

Load capacity: 1323 lbs

Load Capacity per Level: 331 lbs

Transportation method: Manual

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This Flow Rack is designed for the presentation of materials. It is a stand alone fixture (casters & tow bar can be added). It is designed for efficient material handling through gravity and the use of rollers. Ideal for bins, totes or boxes.

Parts included
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 1050 mm 2 Q-001-1302
FlexBeam™ 770 mm 8 Q-001-1306
FlexBeam™ 700 mm 2 Q-001-1307
FlexBeam™ - 1470 mm FE 2 Q-001-1503
FlexBeam™ 1540 mm FE 2 Q-001-1504
FlexPlate™ 24 Q-002-1001
Flexplate™ M10 16 Q-002-1162
Roller rail - 1558 mm 48 Q-003-0003
Rail Support Drop 30 mm Stop 96 Q-003-1022
Spring Threaded Tube Connectors 16 Q-005-0469
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Locking Nut M10 18 Q-006-1042
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 196 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 18 Q-006-1410
