Flat Shelf Tugger Cart 70 x 36 inch - 2 Shelves
Flat Shelf Tugger Cart 70 x 36 inch - 2 Shelves
Flat Shelf Tugger Cart 70 x 36 inch - 2 Shelves
Flat Shelf Tugger Cart 70 x 36 inches – 2 Shelves
Q-100-0394

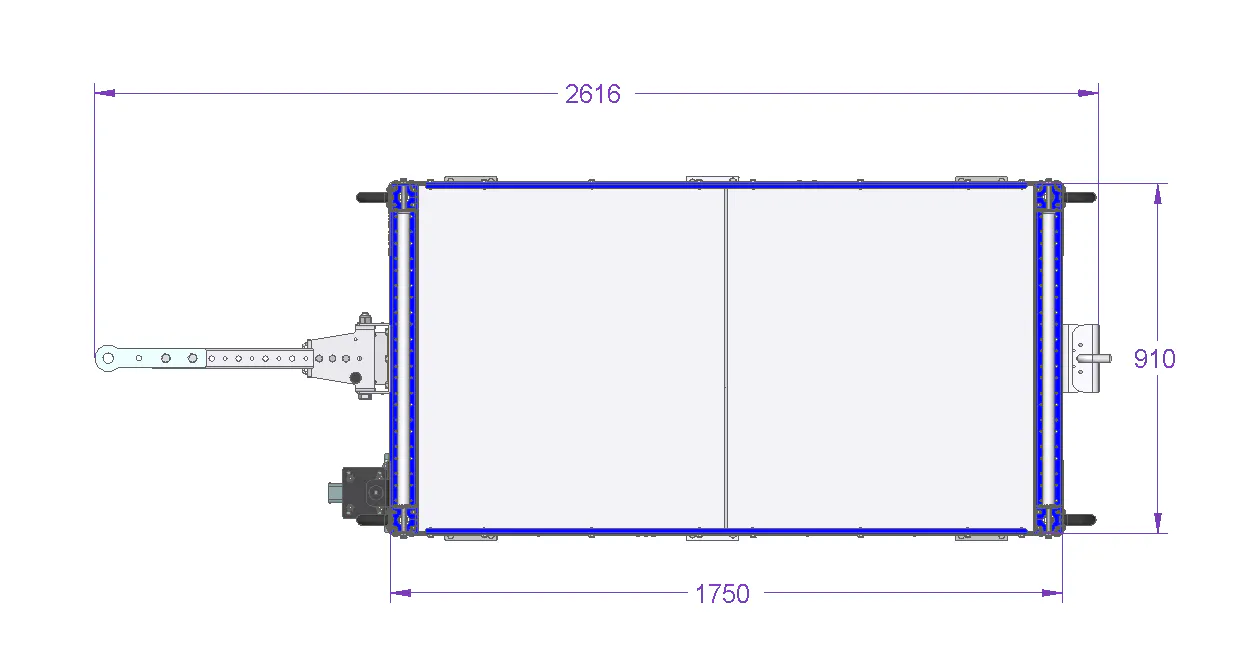

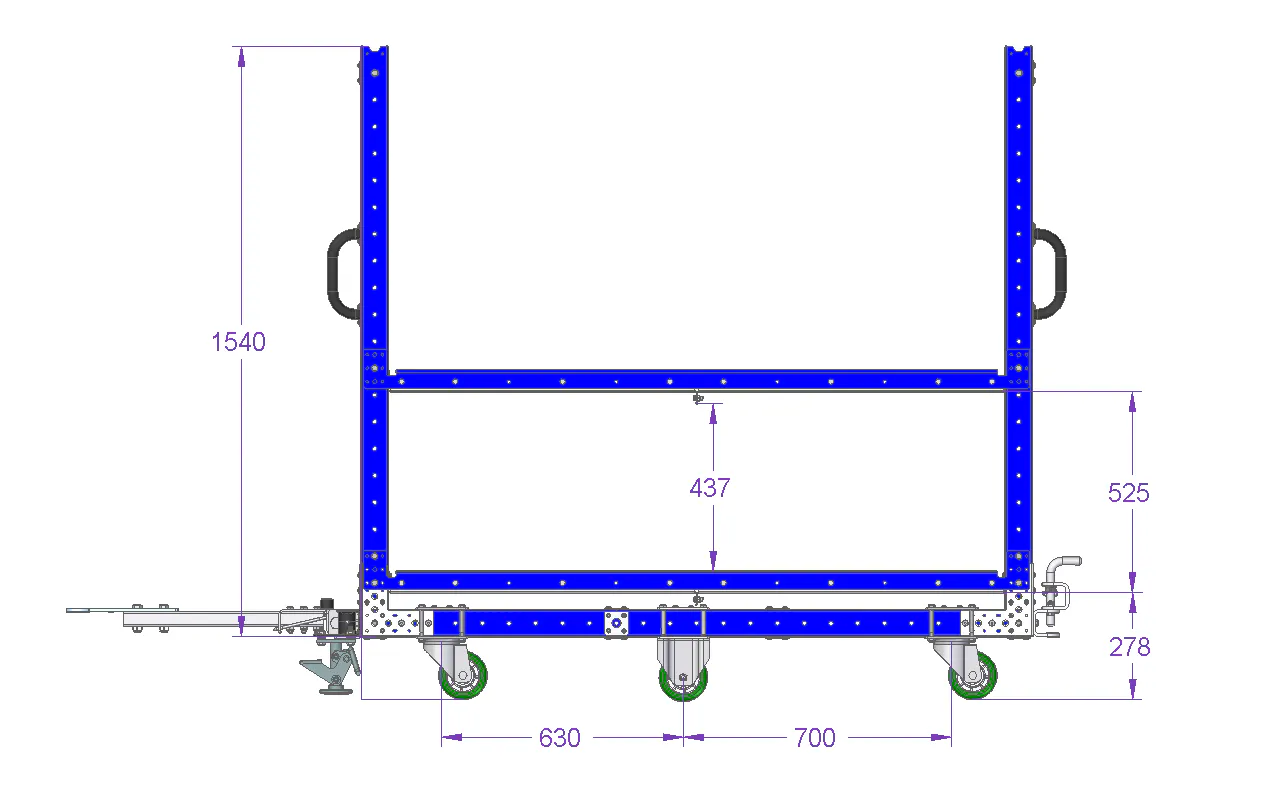

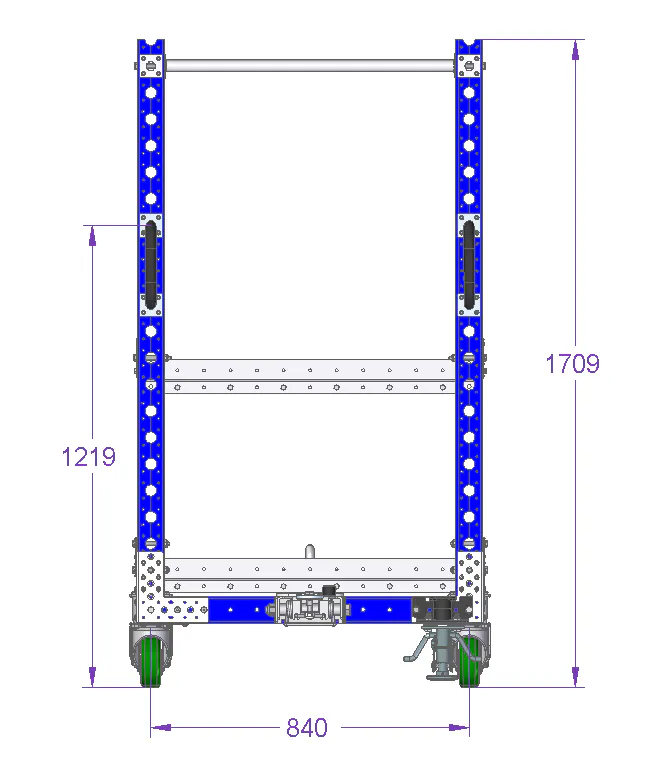

Flat Shelf Tugger Cart 70 x 36 inch - 2 Shelves

Two level tuggable flat shelf cart equipped with a floor brake, handlebars and six polyurethane casters.

Technical specifications

Category: Flat Shelf

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Type of tow bar: Tongue and Hitch

Length: 69 inch

Levels: 2

Load capacity: 441 lbs

Load Capacity per Level: 220 lbs

Width: 36 inch

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

Two level tuggable flat shelf cart most commonly used for the transportation of totes, bins or boxes. The cart is equipped with a floor brake, handlebars and six high quality polyurethane casters, two fixed and four swivel giving it excellent tracking properties and silent movement when connected in a train.

Parts included
FlexTube™ 770 mm 2 Q-000-1265
FlexBeam™ - 1470 mm 8 Q-001-1296
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 24 Q-002-1001
Flexplate™ M10 8 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Spring Threaded Tube Connectors 4 Q-005-0469
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 23 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 1 Q-006-1041
Locking Nut M10 70 Q-006-1042
Washer M10 26 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 12 Q-006-1088
Hex Head - M8 x 16 mm 52 Q-006-1120
Hex Head - M10 x 90 mm 35 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 45 Q-006-1181
M8 Washer 42 Q-006-1183
Hex Head - M10 x 40 4 Q-006-1208
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 200 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 3 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handle Bar 210 mm M8 4 Q-015-1037
Angled plate - 1738 mm 4 Q-016-0193
Flat Shelf - 805 x 910 mm 4 Q-016-0194
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
