Flat Shelf Cart - 70 x 36 inch
Flat Shelf Cart - 70 x 36 inch
Flat Shelf Cart - 70 x 36 inch
Flat Shelf Cart - 70 x 36 inch
Q-100-0628

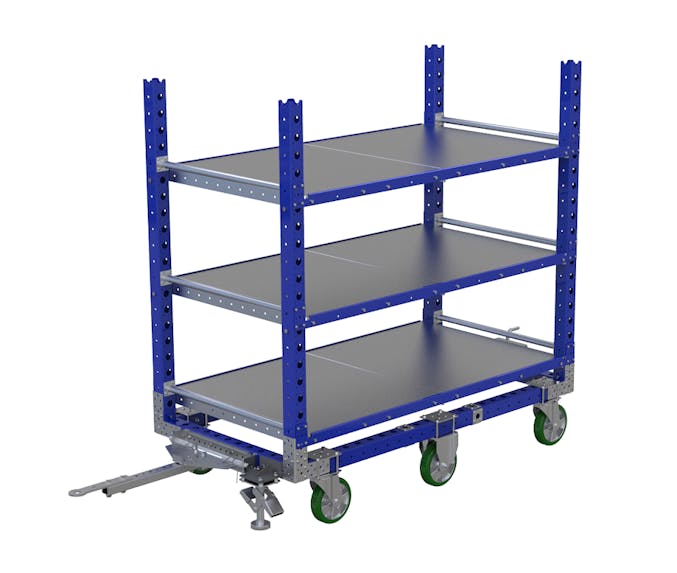

Flat Shelf Cart - 70 x 36 inch

Standard designed flat shelf cart equipped with three flat shelves.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 36 inch

Length: 69 inch

Levels: 3

Load capacity: 661 lbs

Load Capacity per Level: 220 lbs

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This flat shelf cart was designed to transport totes, bins, and boxes more efficiently. The three shelves can have their height adjusted higher or lower easily depending on your materials. It also comes equipped with a drop pin and hitch tow bar for transportation via a tugger train system.

Parts included
FlexBeam™ - 1470 mm 8 Q-001-1296
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 20 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Floor Brake LTL - 200 mm 1 Q-004-1359
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 28 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Locking Nut M10 70 Q-006-1042
Washer M10 24 Q-006-1043
Locking Nut M6 1 Q-006-1050
M6 Washer 16 Q-006-1076
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 60 Q-006-1120
Hex Head - M10 x 90 mm 33 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 60 Q-006-1181
M8 Washer 32 Q-006-1183
Nut M10 1 Q-006-1195
Hex Head - M10 x 40 4 Q-006-1208
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 18 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 232 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Angled plate - 1738 mm 6 Q-016-0193
Steel Flat Shelf - 805 x 910 mm 6 Q-016-0286
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
