Flat Shelf Cart 55 x 48 inch
Flat Shelf Cart 55 x 48 inch
Flat Shelf Cart 55 x 48 inch
Flat Shelf Cart 55 x 48 inch
Flat Shelf Cart 55 x 48 inch
Flat Shelf Cart 55 x 48 inch
Flat Shelf Cart 55 x 48 inch
Q-007-3079

Flat Shelf Cart 55 x 48 inch

Tuggable robust three-level flat shelf cart. Each level has a lip and two tubes to keep parts from sliding off. Equipped with six polyurethane casters.

100% free. No commitment.

Automotive 750 lbs
load capacity
Get a quote
Close

Flat Shelf Cart 55 x 48 inch

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications
Transportation method Tugger
Industry Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Length 55 inch
Width 50 inch
Load capacity 750 lbs
Caster size 5 inch
Type of tow bar Hitch pin tow bar
Caster Type Polyurethane
More info

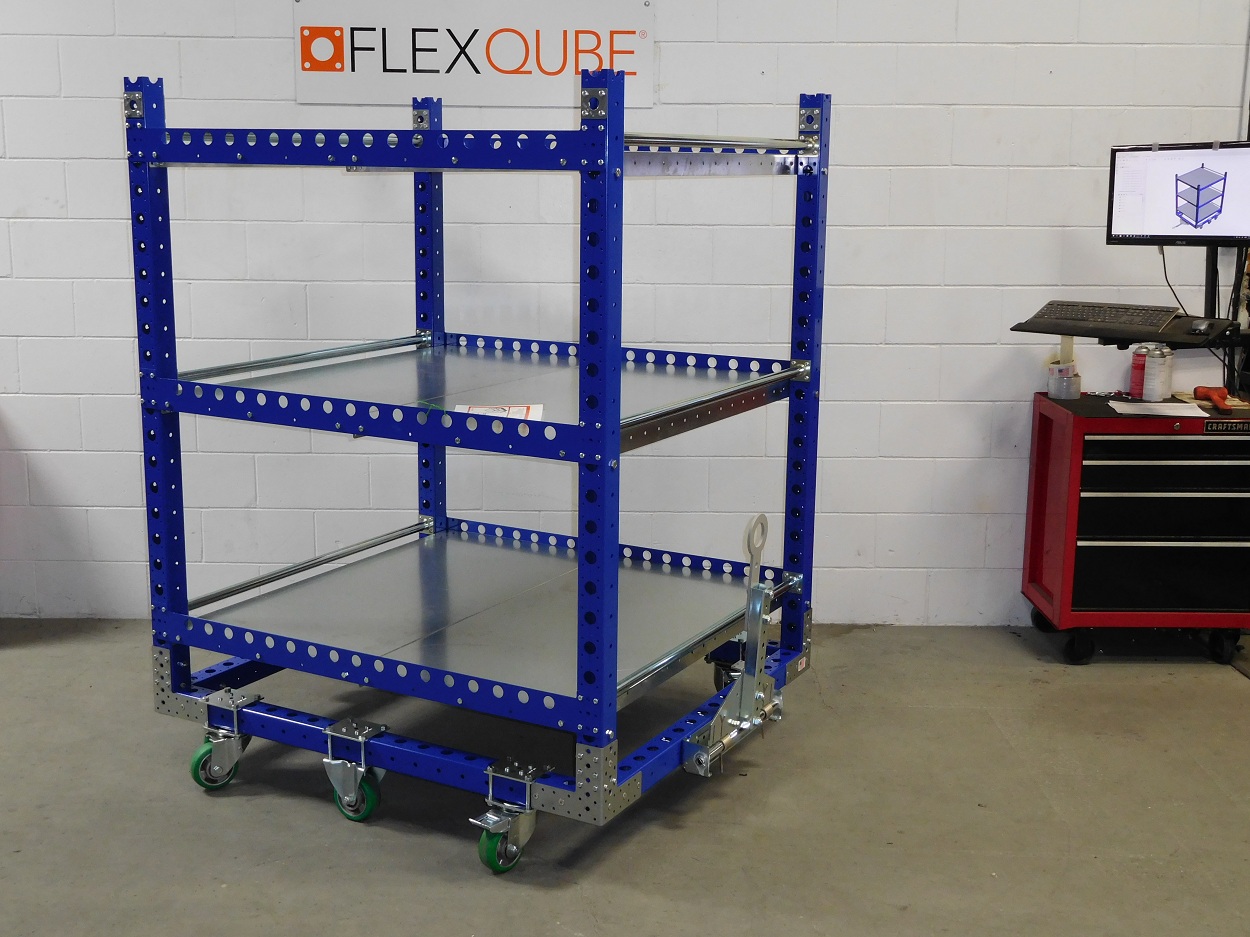

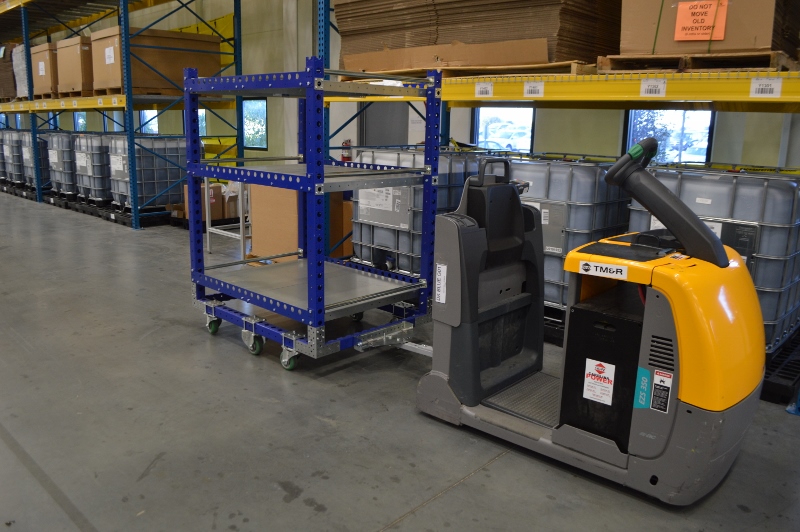

Tuggable robust three-level flat shelf cart most commonly used to transport totes, bins, and boxes. Each level has a lip and two tubes to keep parts from sliding off during transport. The cart is equipped with a tow bar and six polyurethane casters giving it excellent tracking properties and silent movement when connected to a train.

Parts included
FlexTube™ 1120 mm 6 Q-000-1258
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 16 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane 125 mm w. Brake 2 Q-004-1105
Caster Polyurethane - 125 mm 2 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 24 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Locking Nut M10 69 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M8 x 16 mm 48 Q-006-1120
Hex Head - M10 x 90 mm 32 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 49 Q-006-1181
Hex Head - M10 x 100 mm 8 Q-006-1302
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 224 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Angled Plate - 1388 mm 6 Q-016-0035
Flat Shelf - 630 x 1260 mm 6 Q-016-0179
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 2,5 Inch 1 Q-017-1012
