Flat Shelf Cart - 1750 x 910 mm
Flat Shelf Cart - 1750 x 910 mm
Flat Shelf Cart - 1750 x 910 mm
Flat Shelf Cart - 1750 x 910 mm
Q-100-1115

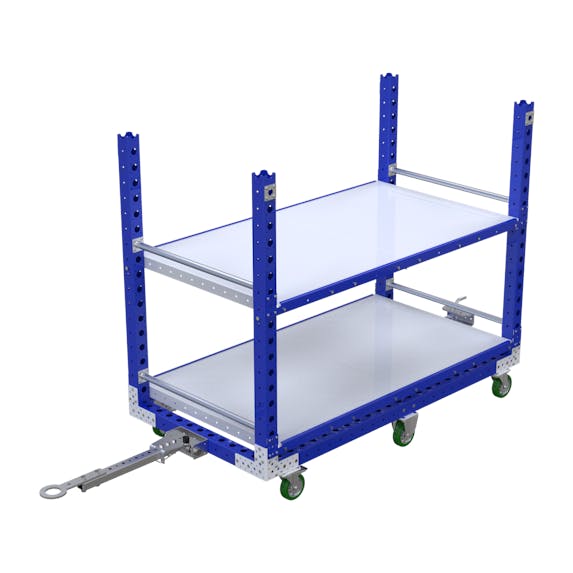

Flat Shelf Cart - 1750 x 910 mm

This two-level flat shelf cart is designed to transport bins, totes and boxes.

Technical specifications

Category: Flat Shelf

Transportation method: Manual, Tugger

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 36 inch

Length: 69 inch

Levels: 2

Load capacity: 441 lbs

Load Capacity per Level: 220 lbs

Caster size: 5 inch

Caster Type: Polyurethane

More info

This two-level flat shelf cart is commonly used for transportation of totes/bins/boxes or loose components. The cart is equipped with a drop-pin and hitch towbar for connection with a tugger train.

Parts included
FlexTube™ 770 mm 4 Q-000-1265
FlexBeam STS - 1680 mm 4 Q-001-1293
FlexBeam™ - 1260 mm 8 Q-001-1299
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 12 Q-002-1001
FlexPlate™ half 4 Q-002-1369
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Beam to Beam - Corner Plate Short 4 Q-005-0237
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
64 mm FlexBeam™ Collet 28 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Locking Nut M10 41 Q-006-1042
Washer M10 2 Q-006-1043
Hex Head - M8 x 16 mm 42 Q-006-1120
Hex Head - M10 x 90 mm 10 Q-006-1132
Locking Nut M8 67 Q-006-1181
M8 Washer 32 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Countersunk - M8 x 20 8 Q-006-1282
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 136 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Angled plate - 1738 mm 4 Q-016-0193
Steel Flat Shelf - 805 x 910 mm 4 Q-016-0286
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Tow Hinge Module 1 Q-017-0059
Spring Loaded Tow Hinge 1 Q-017-0067
Towing Lip - 2,5 Inch 1 Q-017-1012
