Q-100-0389

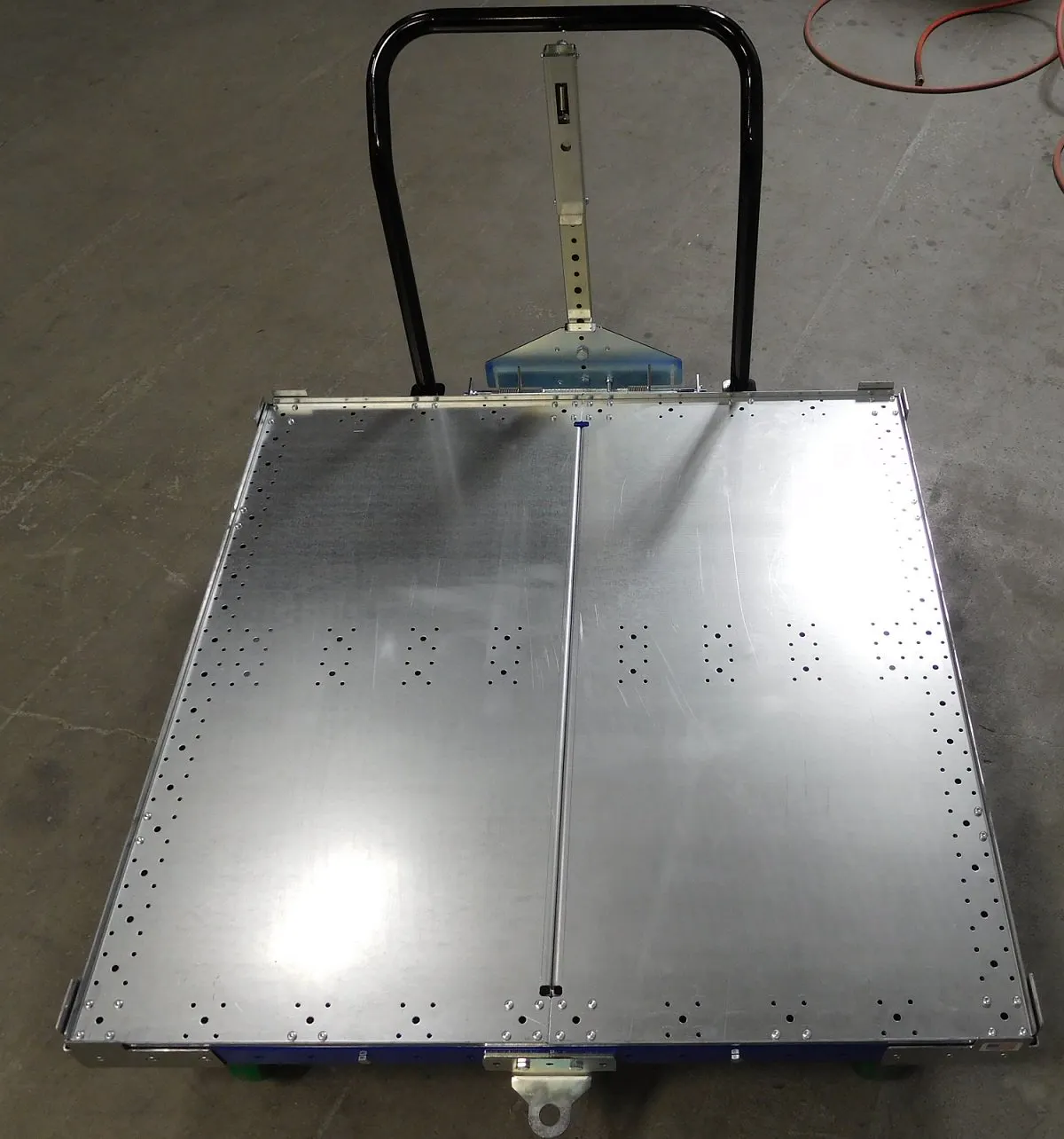

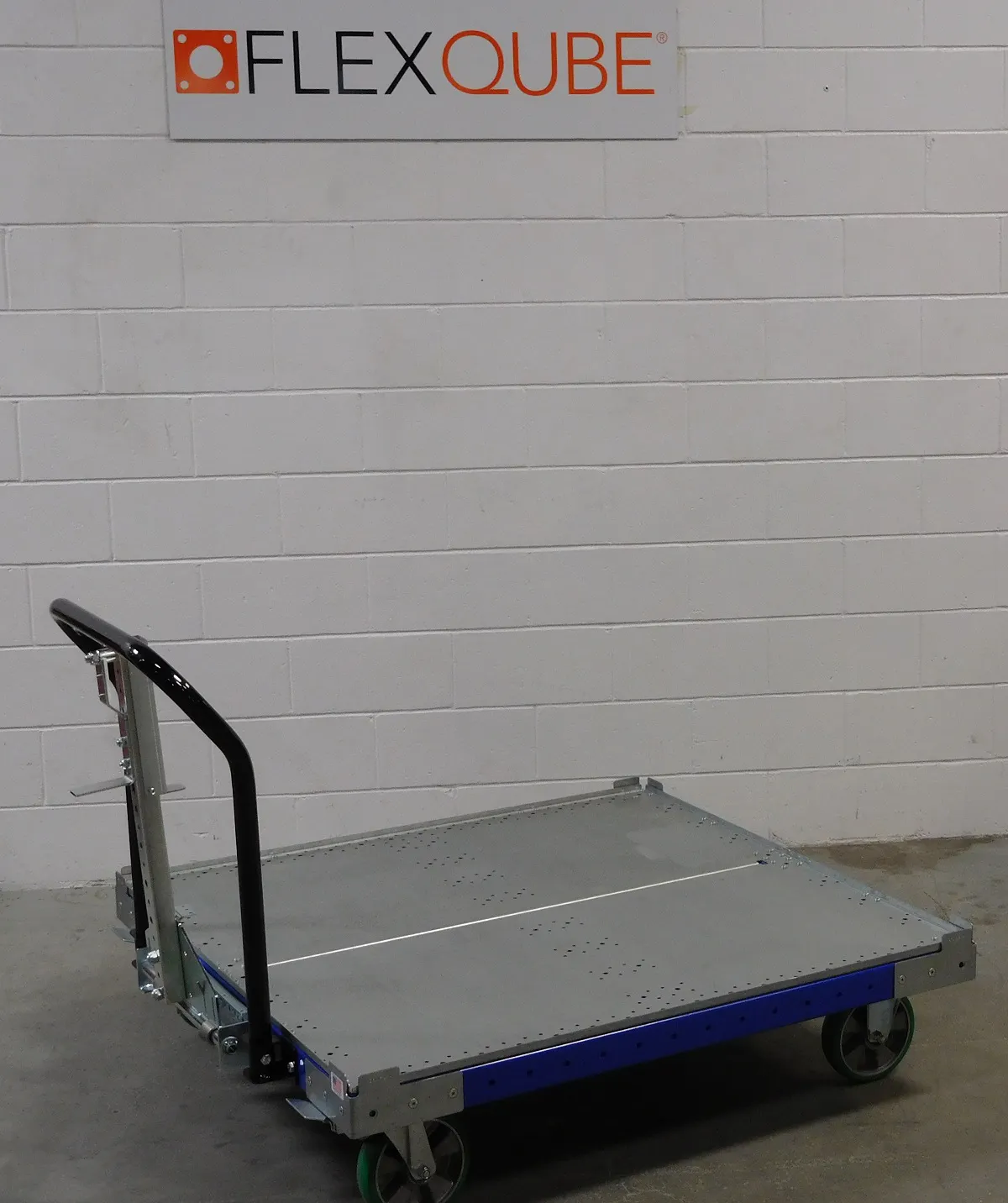

Flat Deck Tugger Cart 50 x 50 inch

Tuggable flatbed cart used for the transportation of pallets and containers. Equipped with a handlebar and four polyurethane casters.

Technical specifications

Category: Flat Deck

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 50 inch

Load capacity: 2000 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

More info

Tuggable flatbed cart commonly used for the transportation of pallets and containers. The deck gives you the option load the cart with several different sizes. The cart is equipped with a handlebar, tow bar and four polyurethane casters, two fixed and two swivel giving you excellent tracking properties and silent movement in a train.

Parts included
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 630 mm 2 Q-001-1308
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Caster Polyurethan Fix Brake - 200 mm 2 Q-004-1111
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Spring Cover Plate 1 Q-005-1025
Wheel Attachment Box 4 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 12 Q-005-1426
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Locking Nut M14 1 Q-006-1039
Hex Head - M10 x 25 mm 22 Q-006-1041
Locking Nut M10 65 Q-006-1042
Washer M10 58 Q-006-1043
Hex Head - M10 x 90 mm 6 Q-006-1132
Hex Head - M10 x 30 mm 8 Q-006-1161
Locking Nut M8 1 Q-006-1181
Hex Head - M10 x 100 mm 2 Q-006-1302
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 86 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 7 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Plate 49 x 24,5 Inch 2 Q-016-1110
US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012
Foot Release Locking Lip 1 Q-017-0024
Tow Hinge Module 1 Q-017-0059
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
