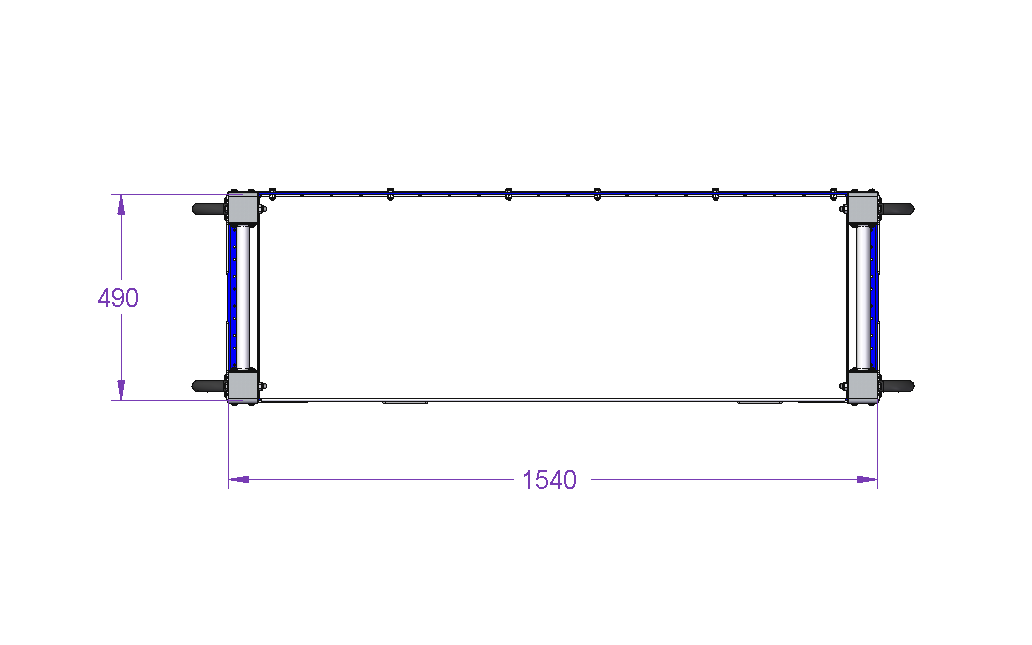

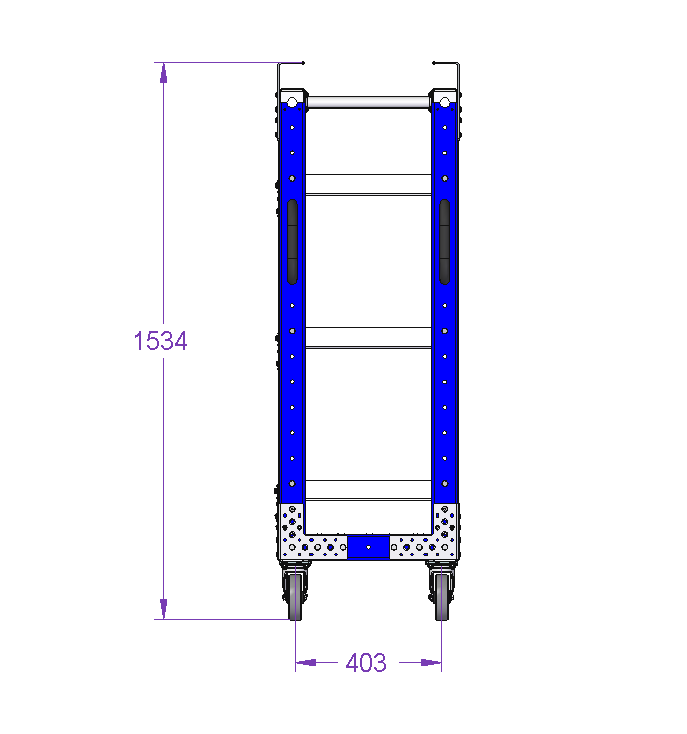

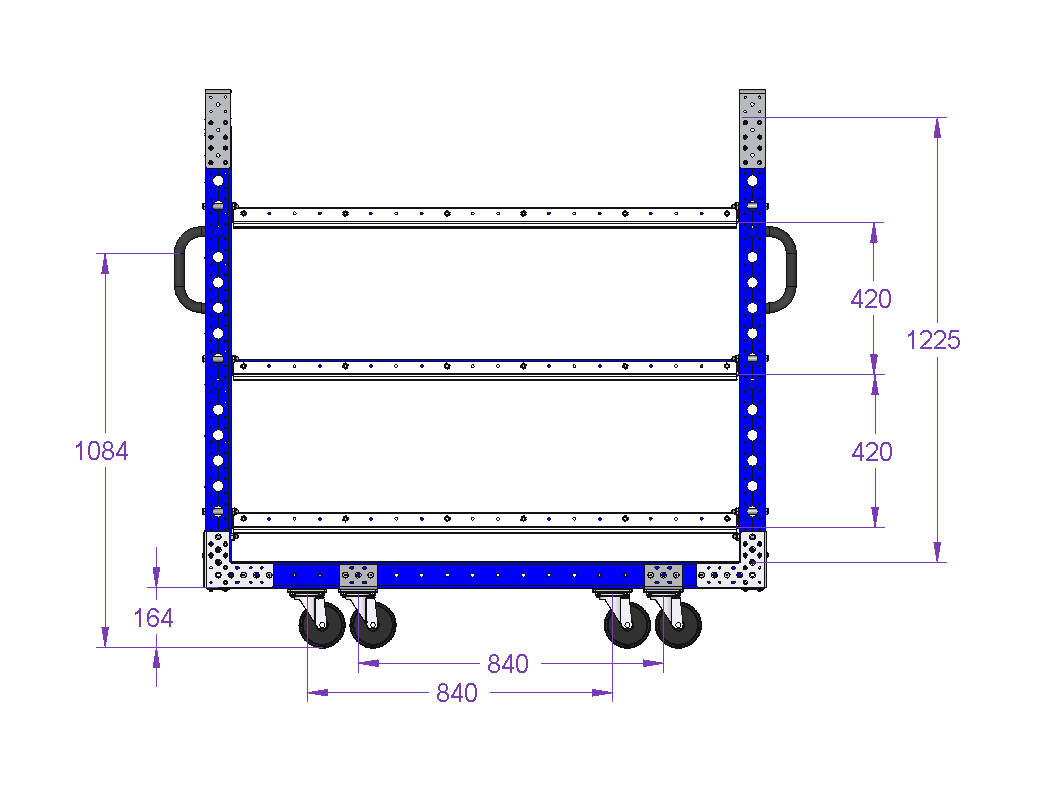

Language: United States | English Europe | English Mexico | Español Germany | Deutsch FlexQube CartsClose menu All cartseQart®Pallet & Container SolutionsShelf SolutionsKit Carts & Specialized SolutionsFlow SolutionsHanging SolutionsMother-Daughter SolutionsPartsView all categoriesAutomated eQartDesignCase studiesNewsContact Type a word to search Search for carts, news posts and more. Suggestions Tugger cart eQart Find a sales person How do I order? Menu CartsClose menu All cartseQart®Pallet & Container SolutionsShelf SolutionsKit Carts & Specialized SolutionsFlow SolutionsHanging SolutionsMother-Daughter SolutionsPartsView all categoriesAutomated eQartDesignCase studiesNewsContact Case studiesCustomer careInvestor relationsBecome a FlexQube DisitributorHow it works CareerFAQAbout FlexQubeCustom DesignMaterial Handling DictionaryFlexQube Shop LinkedIn YouTube Facebook Instagram Twitter Language: United States | English Europe | English Mexico | Español Germany | Deutsch Back Back Q-100-0702 Daughter Cart - 1540 x 490 mm Daughter cart with three flat shelves equipped. Get a quote 100% free. No commitment. Get a quote Close Daughter Cart – 1540 x 490 mm Email Phone Location Comments (optional) Attach a file (optional) Upload Maximum file size is 10mb. We will get back to you within 24 hours. (Unless it’s during holidays.) Create your own cart Boost Efficiency Heavy-duty & modular Technical specifications Transportation method Mother-Daughter Cart, Tugger Industry Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy Width 19 inch Load capacity 661 lbs Caster size 5 inch Parts included FlexTube™ 350 mm 2 Q-000-1055 FlexQube 4 Q-001-1078 FlexBeam™ - 1470 mm 4 Q-001-1296 FlexBeam™ 1190 mm 8 Q-001-1300 FlexBeam™ 490 mm FE 2 Q-001-1410 FlexPlate™ 4 Q-002-1001 FlexPlate™ half 4 Q-002-1369 Swivel Caster - 125 mm 4 Q-004-1363 L-shape Daughter cart guide 4 Q-005-0258 Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265 Beam to Beam Corner Plate 4 Q-005-1356 64 mm FlexBeam™ Collet 24 Q-005-1426 Wheel Attachment - 80 x 60 mm 4 Q-005-1722 Hex Head Fully Threaded - M8 x 20 mm 36 Q-006-1019 Locking Nut M10 40 Q-006-1042 Hex Head - M8 x 16 mm 8 Q-006-1120 Hex Head - M10 x 90 mm 8 Q-006-1132 Locking Nut M8 52 Q-006-1181 M8 Washer 32 Q-006-1183 Countersunk - M8 x 25 mm 16 Q-006-1250 Extra Low Head - M10 x 90 mm 20 Q-006-1381 Self Tapping Screw M6 Torx H60 x 16 142 Q-006-1384 Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410 Handle Bar 210 mm M8 4 Q-015-1037 Angled plate - 1528 mm 6 Q-016-0109 Flat Shelf - 1400 x 490 mm 3 Q-016-0330 Show all More info This daughter cart is designed to lock into a mother frame creating a mother-daughter solution. This daughter cart is equipped with 3 flat shelves and is ideal for transporting bins and totes, the daughter carts are designed to be unlocked from the mother frame and left at assembly and work stations. The mother frame for this daughter cart is Q-100-0703. Top selling carts Product Q-100-0112 Tugger Cart - 50 x 50 inch Read more Product Q-100-1224 Tugger Cart - 1260 x 1190 mm Read more Product Q-100-1157 Tube Cart - 1960 x 910 mm Read more Product Q-100-0609 Shelf Cart 55 x 41 inch Read more Ask us about this cart Employee Sales Manager US Midwest & Canada Andy Legut +1 (734) 624 2121 Email me Employee Sales Manager US Southeast Shawn Lynch +1(864) 434-6219 Email me Case studies Case Kolonial.no FlexQube was able to help Kolonial.no implement a fleet of robust & flexible carts. Read more Case DANA DANA achieved their goals and are ready to meet future challenges with the eQart. Read more Case Autoliv Using high-quality carts to reduce downtime at Autoliv in Mexico Read more Want to know more? Got questions? Please don't hesitate to contact us. +1 (734) 624 2121 Contact us Questions & Answers LinkedIn YouTube Facebook Instagram Twitter Language: United States | English Europe | English Mexico | Español Germany | Deutsch ©2020 FlexQube – All rights reserved Page generated on Slave: 2020-12-01T23:53:54+00:00 Policy & Terms Contact us Close Hi, how can I help you? Email Location Comments* Attach a file (optional) Upload Maximum file size is 10mb. Something went wrong Please try again or contact sales. We will get back to you within 24 hours. (Unless it’s during holidays.)
Back Back Q-100-0702 Daughter Cart - 1540 x 490 mm Daughter cart with three flat shelves equipped. Get a quote 100% free. No commitment. Get a quote Close Daughter Cart – 1540 x 490 mm Email Phone Location Comments (optional) Attach a file (optional) Upload Maximum file size is 10mb. We will get back to you within 24 hours. (Unless it’s during holidays.) Create your own cart Boost Efficiency Heavy-duty & modular Technical specifications Transportation method Mother-Daughter Cart, Tugger Industry Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy Width 19 inch Load capacity 661 lbs Caster size 5 inch Parts included FlexTube™ 350 mm 2 Q-000-1055 FlexQube 4 Q-001-1078 FlexBeam™ - 1470 mm 4 Q-001-1296 FlexBeam™ 1190 mm 8 Q-001-1300 FlexBeam™ 490 mm FE 2 Q-001-1410 FlexPlate™ 4 Q-002-1001 FlexPlate™ half 4 Q-002-1369 Swivel Caster - 125 mm 4 Q-004-1363 L-shape Daughter cart guide 4 Q-005-0258 Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265 Beam to Beam Corner Plate 4 Q-005-1356 64 mm FlexBeam™ Collet 24 Q-005-1426 Wheel Attachment - 80 x 60 mm 4 Q-005-1722 Hex Head Fully Threaded - M8 x 20 mm 36 Q-006-1019 Locking Nut M10 40 Q-006-1042 Hex Head - M8 x 16 mm 8 Q-006-1120 Hex Head - M10 x 90 mm 8 Q-006-1132 Locking Nut M8 52 Q-006-1181 M8 Washer 32 Q-006-1183 Countersunk - M8 x 25 mm 16 Q-006-1250 Extra Low Head - M10 x 90 mm 20 Q-006-1381 Self Tapping Screw M6 Torx H60 x 16 142 Q-006-1384 Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410 Handle Bar 210 mm M8 4 Q-015-1037 Angled plate - 1528 mm 6 Q-016-0109 Flat Shelf - 1400 x 490 mm 3 Q-016-0330 Show all More info This daughter cart is designed to lock into a mother frame creating a mother-daughter solution. This daughter cart is equipped with 3 flat shelves and is ideal for transporting bins and totes, the daughter carts are designed to be unlocked from the mother frame and left at assembly and work stations. The mother frame for this daughter cart is Q-100-0703.
