Q-100-0788

Compartment Cart - 840 x 630 mm

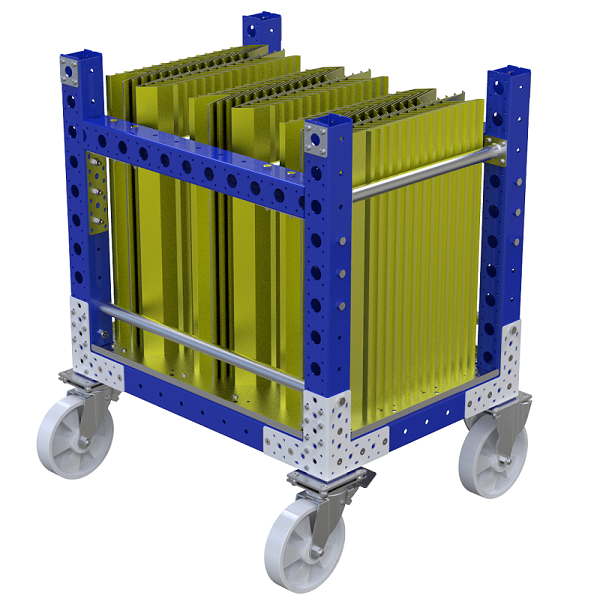

Small cart designed for holding smaller materials upright between the tubes.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 33 inch

Width: 25 inch

Transportation method: Manual

Load capacity: 551 lbs

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Misc parts

More info

This compartment cart is designed to hold plates or compartments. The plates can be placed in between the tubes and they will be held securely in place. This cart is equipped with four polyamide casters, two of which are equipped with brakes

Parts included
Outer Tube (No Plate) - 700 mm 2 Q-025-0700
FlexTube™ 490 mm 4 Q-000-1247
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 700 mm FE 8 Q-001-1407
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexPlate™ 8 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
L Bracket Joint 4 Q-005-0031
Spring Threaded Tube Connectors 4 Q-005-0469
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 24 Q-005-1426
Locking Nut M10 60 Q-006-1042
Washer M10 48 Q-006-1043
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 20 Q-006-1132
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 122 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
Top Plate w. small Edge - 33 x 25 inch 1 Q-016-0375
