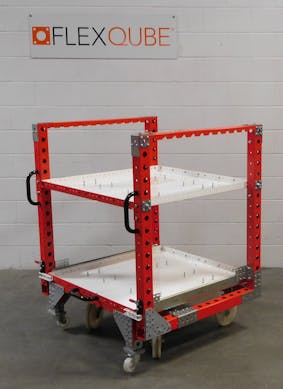

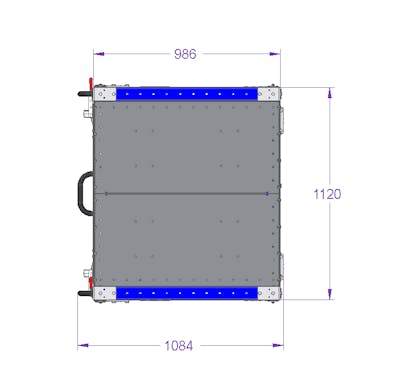

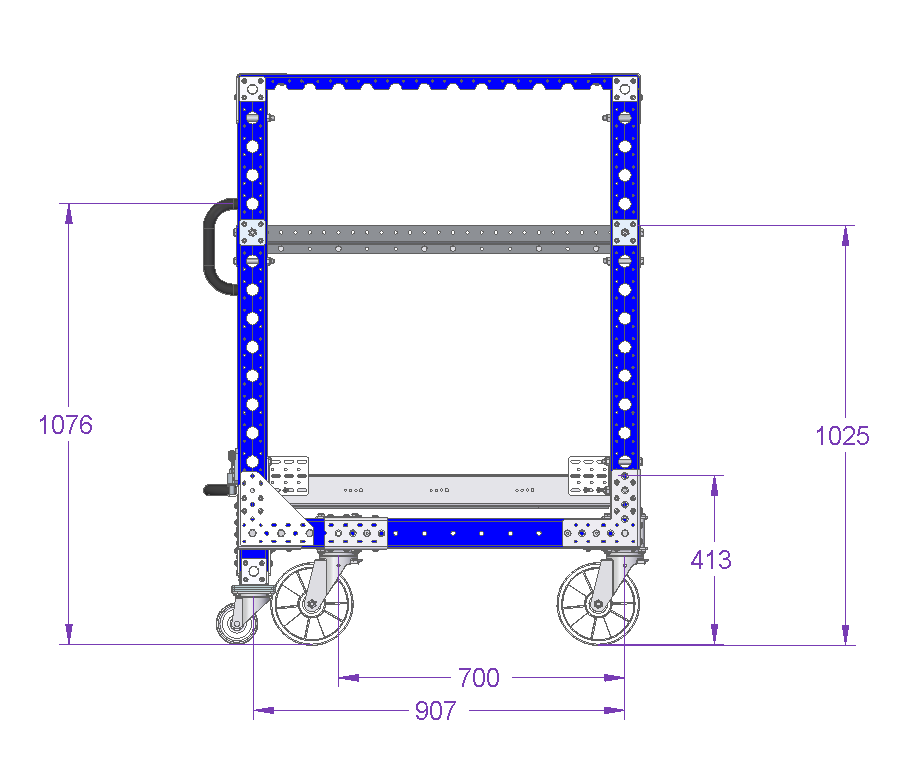

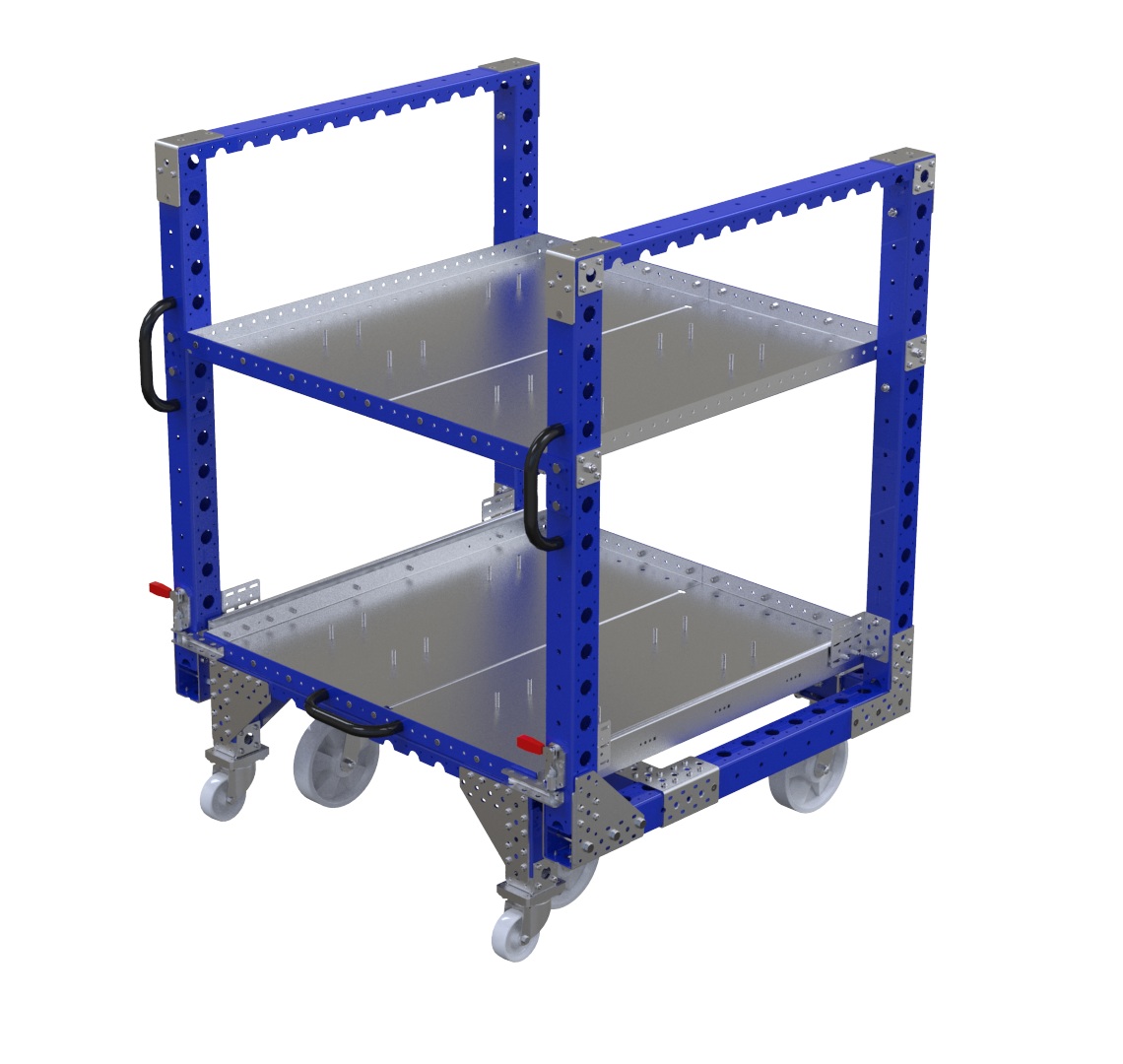

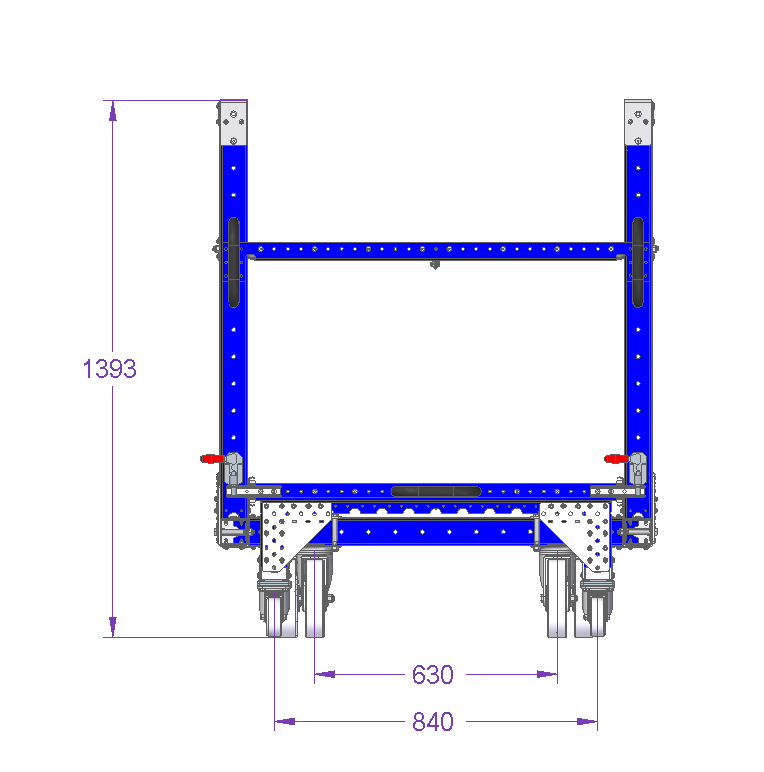

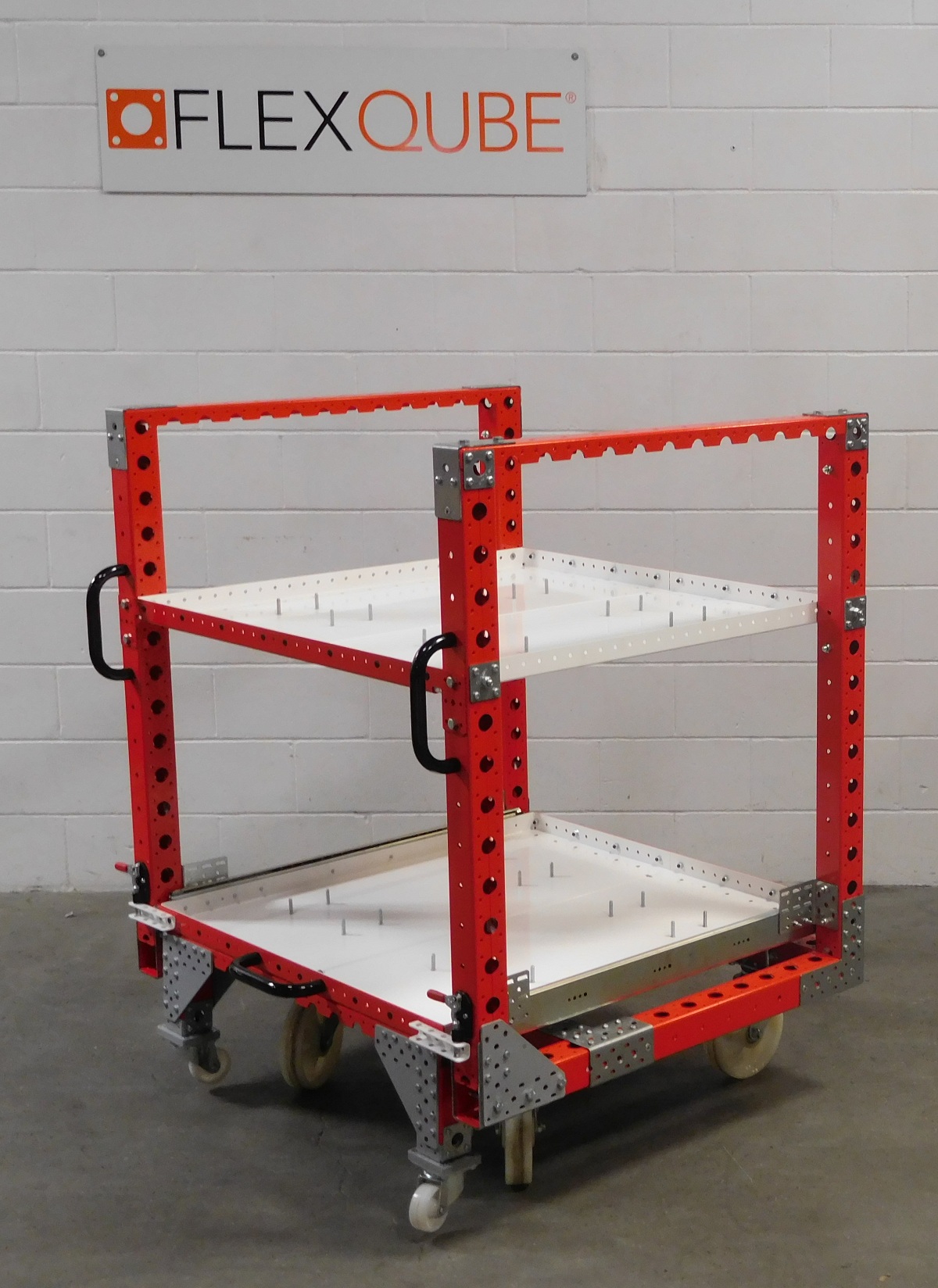

B Frame Engine Cart - 1120 x 980 mm
B Frame Engine Cart - 1120 x 980 mm
B Frame Engine Cart - 1120 x 980 mm
B Frame Engine Cart - 1120 x 980 mm
B Frame Engine Cart - 1120 x 980 mm
B Frame Engine Cart - 1120 x 980 mm
B Frame Engine Cart - 1120 x 980 mm
Q-100-0753

B Frame Engine Cart - 1120 x 980 mm

Specially designed extendable shelf cart.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 44 inch

Levels: 2

Load capacity: 798 lbs

Load Capacity per Level: 397 lbs

Width: 39 inch

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

More info

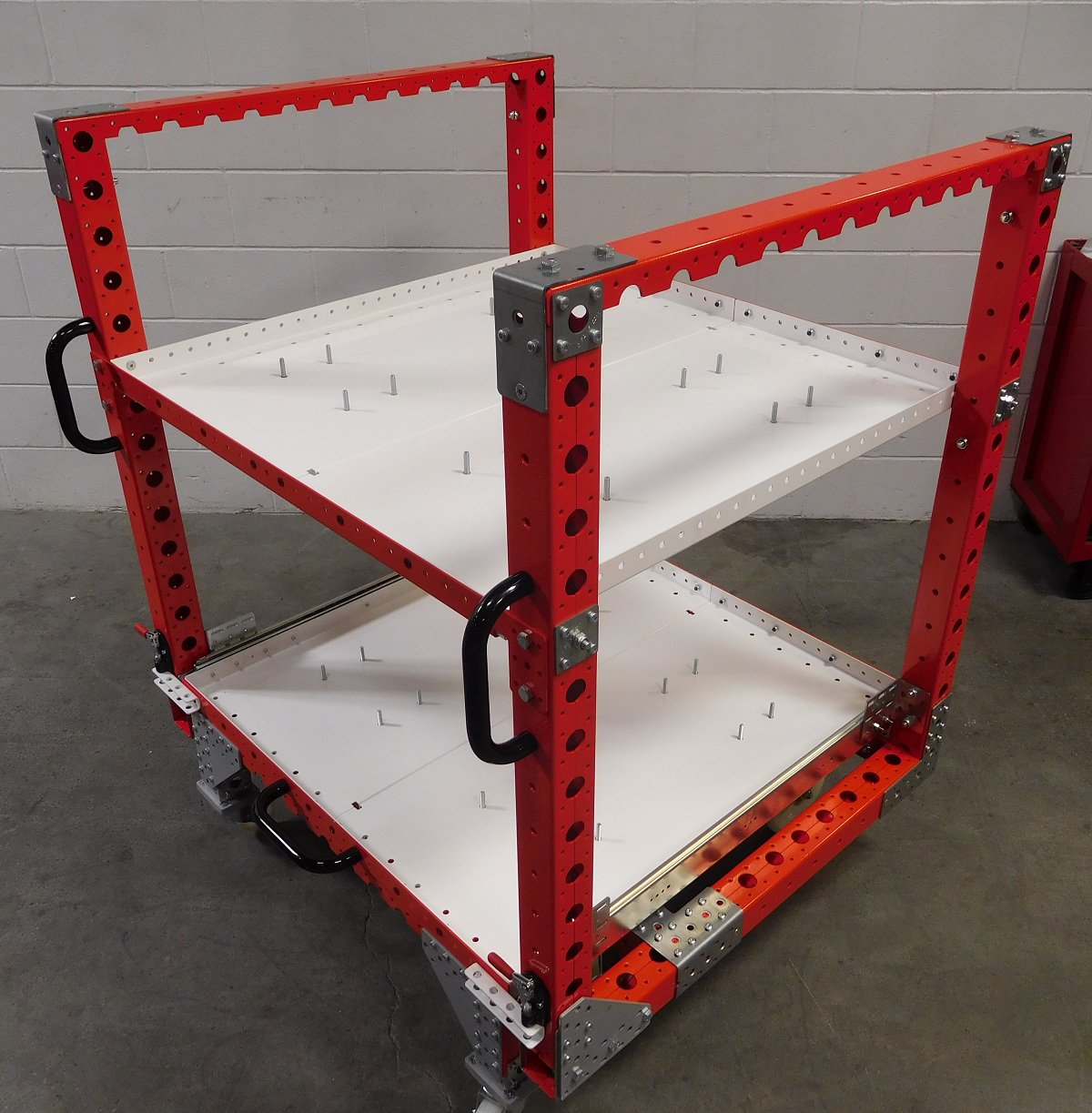

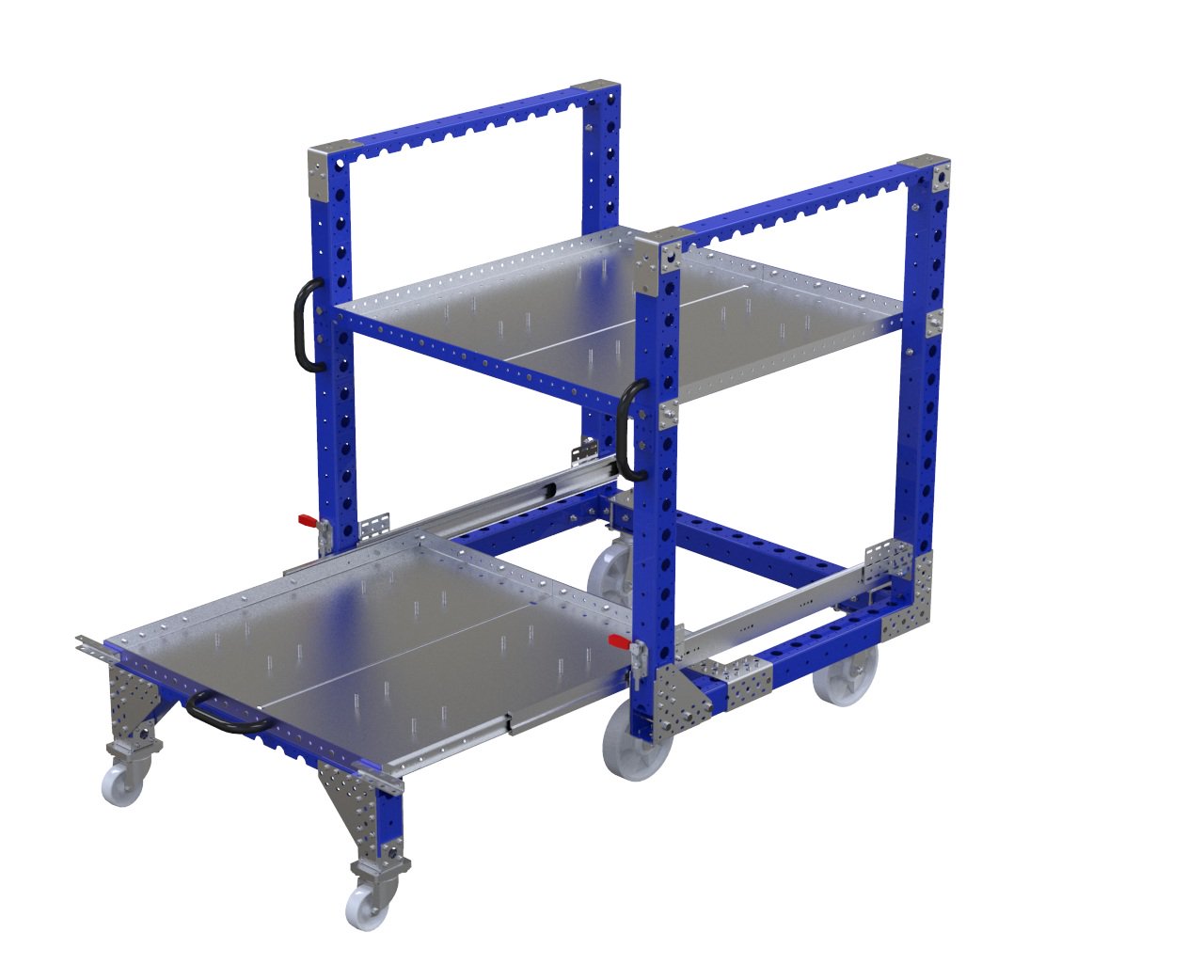

This custom shelf cart was designed to fit into the STILL LiftRunner B Frame. The top shelf is a standard flat shelf. The lower shelf is an extendable shelf, this makes it easier for the opearators to access the materials.

Parts included
FlexQube 2 Q-001-1078
FlexBeam™ 1050 mm 10 Q-001-1302
FlexBeam™ 140 mm 4 Q-001-1315
FlexBeam™ 980 mm FE 6 Q-001-1403
FlexBeam™ 910 mm FE 3 Q-001-1404
FlexPlate™ 12 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 4 Q-002-1162
Telescopic List (9301) - 900 mm 2 Q-003-0044
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm without Brake 4 Q-004-1352
Modular attachment plate for telescopic lists 4 Q-005-0149
Triangle Joint 6 Q-005-0483
Extendable Shelf Locking Plate 2 Q-005-0512
Push-Pull Clamps 2 Q-005-0513
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Wheel Attachment - 80 x 60 mm 6 Q-005-1722
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
M5 Locking Nut 18 Q-006-1021
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 72 Q-006-1042
Washer M10 2 Q-006-1043
Countersunk - M6 x 20 mm 8 Q-006-1049
Locking Nut M6 8 Q-006-1050
Allen Head - M5 x 20 mm 4 Q-006-1057
M6 Washer 8 Q-006-1076
Hex Head - M10 x 95 mm 6 Q-006-1088
Hex Head - M8 x 16 mm 18 Q-006-1120
Hex Head - M10 x 90 mm 22 Q-006-1132
Locking Nut M8 54 Q-006-1181
M8 Washer 4 Q-006-1183
Hex Head - M10 x 20 mm 4 Q-006-1232
Countersunk - M8 x 25 mm 8 Q-006-1250
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Round Head - M5 x 12 mm 14 Q-006-1383
Self Tapping Screw M6 Torx H60 x 16 236 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Handle Bar 210 mm M8 3 Q-015-1037
Extendable Shelf Edge Lip - 940 mm 2 Q-016-0352
Flat Shelf - 980 x 490 mm 2 Q-016-0354
Extendable Shelf - 980 x 470.5 mm 2 Q-016-0355
