Q-100-0502

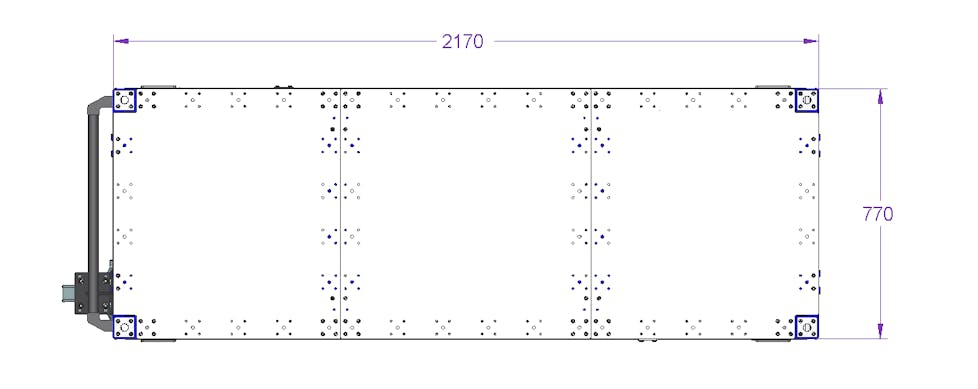

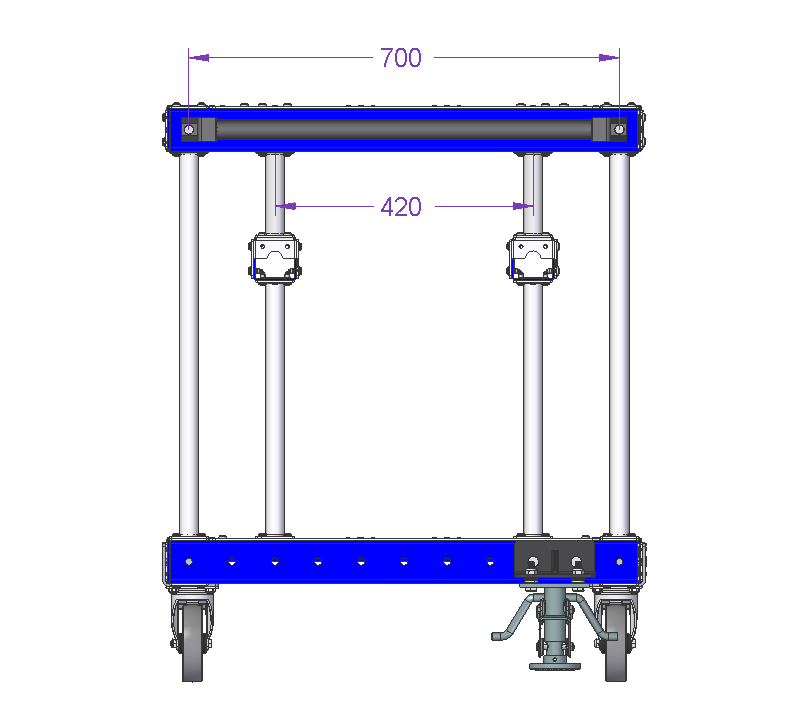

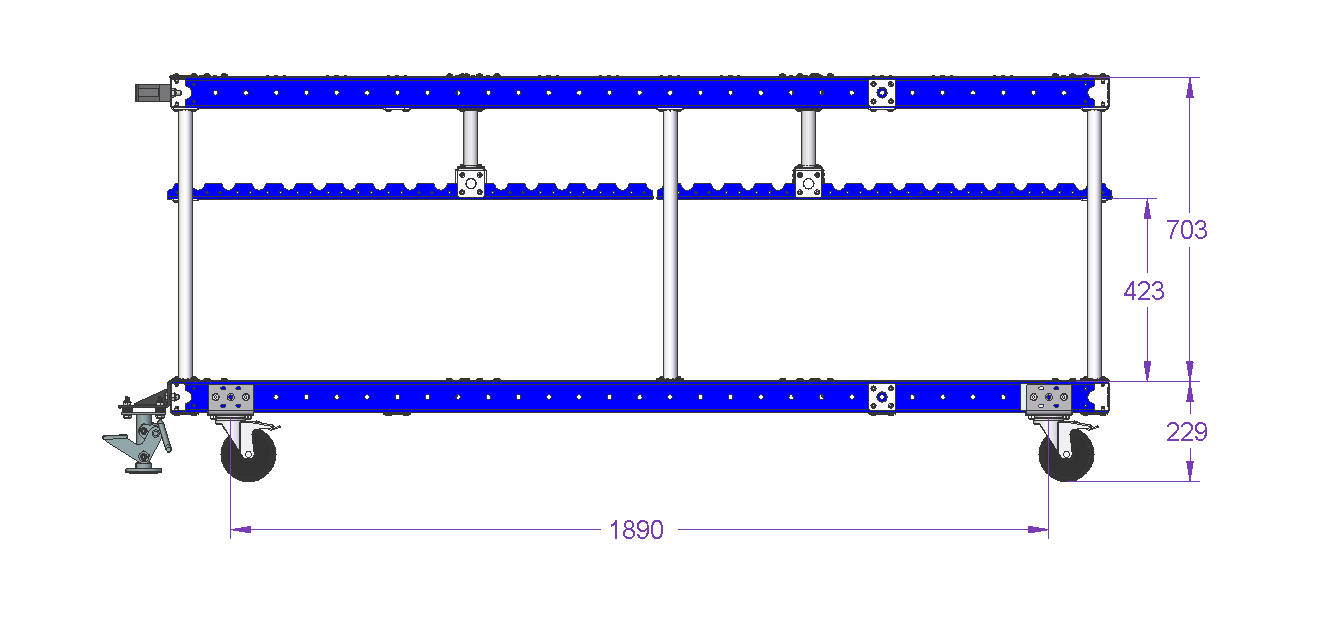

Assembly Cart - 2170 x 770 mm

Custom designed assembly cart for use along the assembly line.

Technical specifications

Category: Flat Deck, Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 85 inch

Levels: 2

Load capacity: 600 lbs

Load Capacity per Level: 300 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

Type of Load: Bins, Boxes, Misc parts, Totes

More info

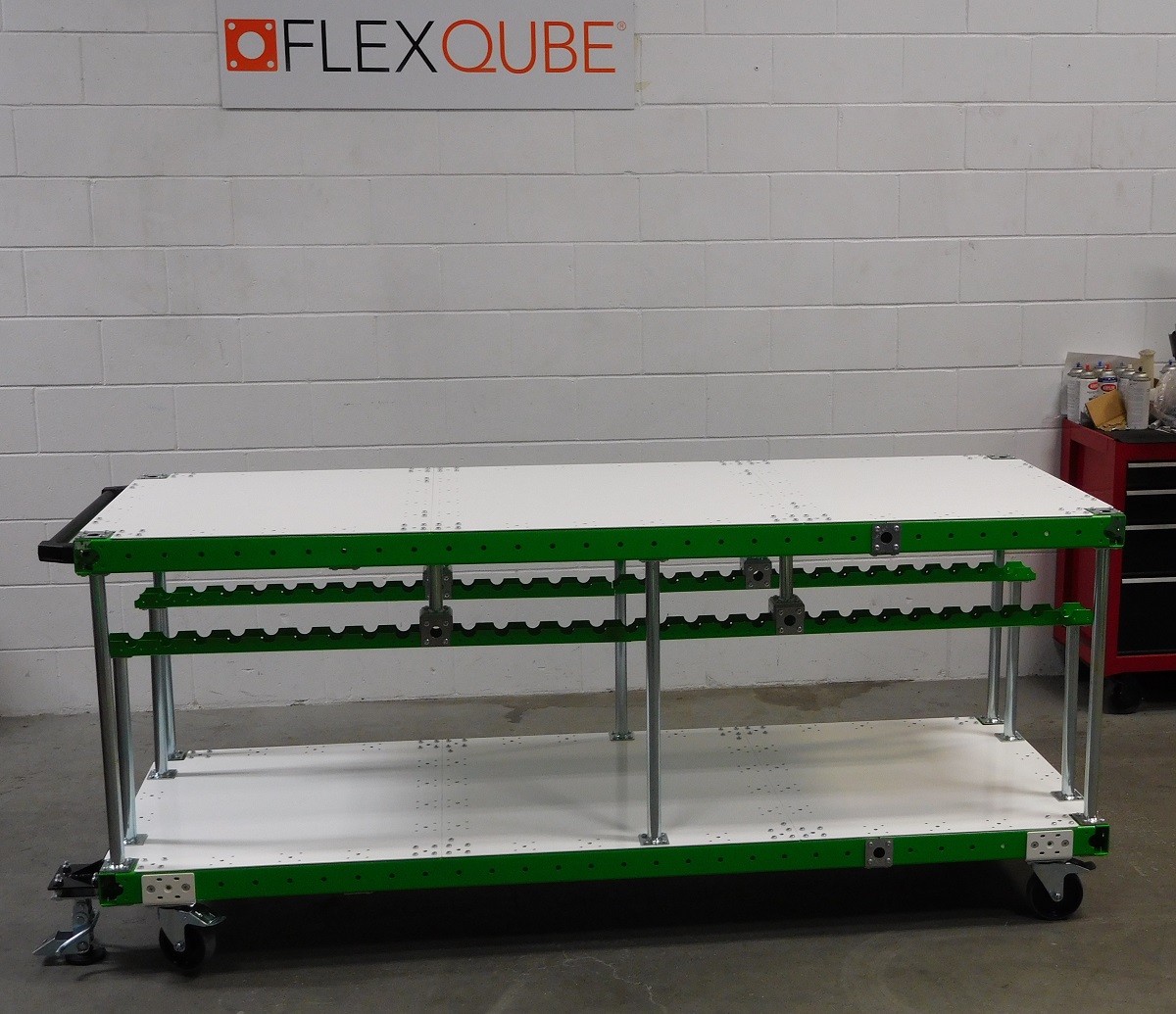

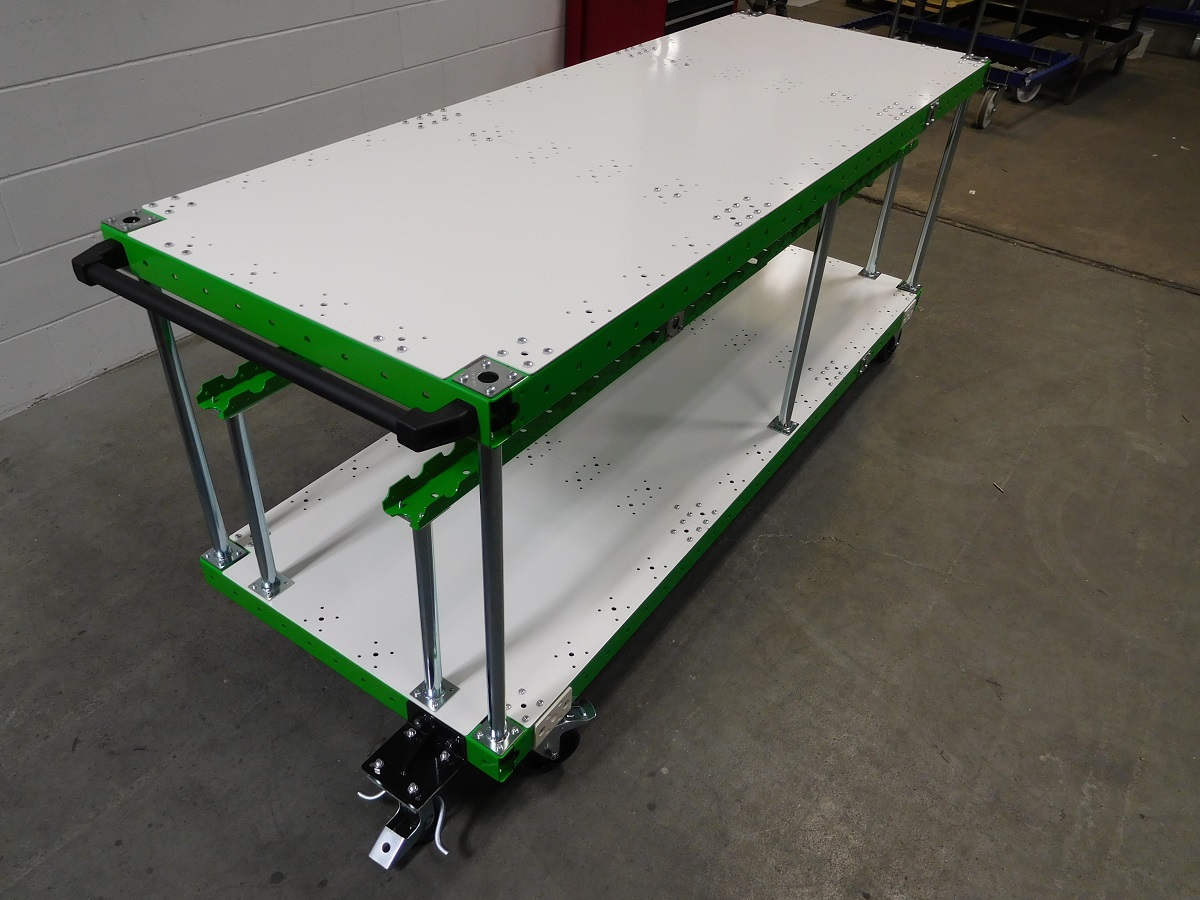

This assembly cart was designed to with two levels. The top level is what the operators can use to assemble the materials. The lower level can carry and store totes, bins and boxes. It comes equipped with a floor lock brake to keep it secure when not in use. There are also four polyamide casters attached for easier handling.

Parts included
Outer tube (No plate) - 657 mm 1 Q-000-0065
FlexTube™ 140 mm - Locking Nut 4 Q-000-1102
FlexTube™ 420 mm 4 Q-000-1270
FlexTube™ 630 mm 6 Q-000-1312
FlexQube 4 Q-001-1078
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ 1120 mm 2 Q-001-1301
FlexBeam™ 1050 mm 2 Q-001-1302
FlexBeam™ 630 mm 2 Q-001-1308
FlexBeam™ 490 mm 8 Q-001-1310
FlexBeam™ 770 mm FE 4 Q-001-1406
FlexBeam™ 630 mm FE 4 Q-001-1408
FlexPlate™ 36 Q-002-1001
Flexplate™ M10 4 Q-002-1162
125 mm Swivel Caster with Brake 4 Q-004-1364
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Handle for 30 mm Tube 2 Q-005-1240
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 8 Q-005-1426
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 16 Q-006-1042
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 344 Q-006-1384
