Air Freight Material Cart - 1240 x 820 mm
Air Freight Material Cart - 1240 x 820 mm
Air Freight Material Cart - 1240 x 820 mm
Air Freight Material Cart - 1240 x 820 mm
Air Freight Material Cart - 1240 x 820 mm
Q-100-0928

Air Freight Material Cart - 1240 x 820 mm

Custom designed cart to keep materials securely within the cart while being transported.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 49 inch

Width: 32 inch

Load capacity: 661 lbs

Transportation method: Manual

Caster Type: Nylon

Caster size: 8 inch

Type of Load: Bins, Boxes, Misc parts, Totes

More info

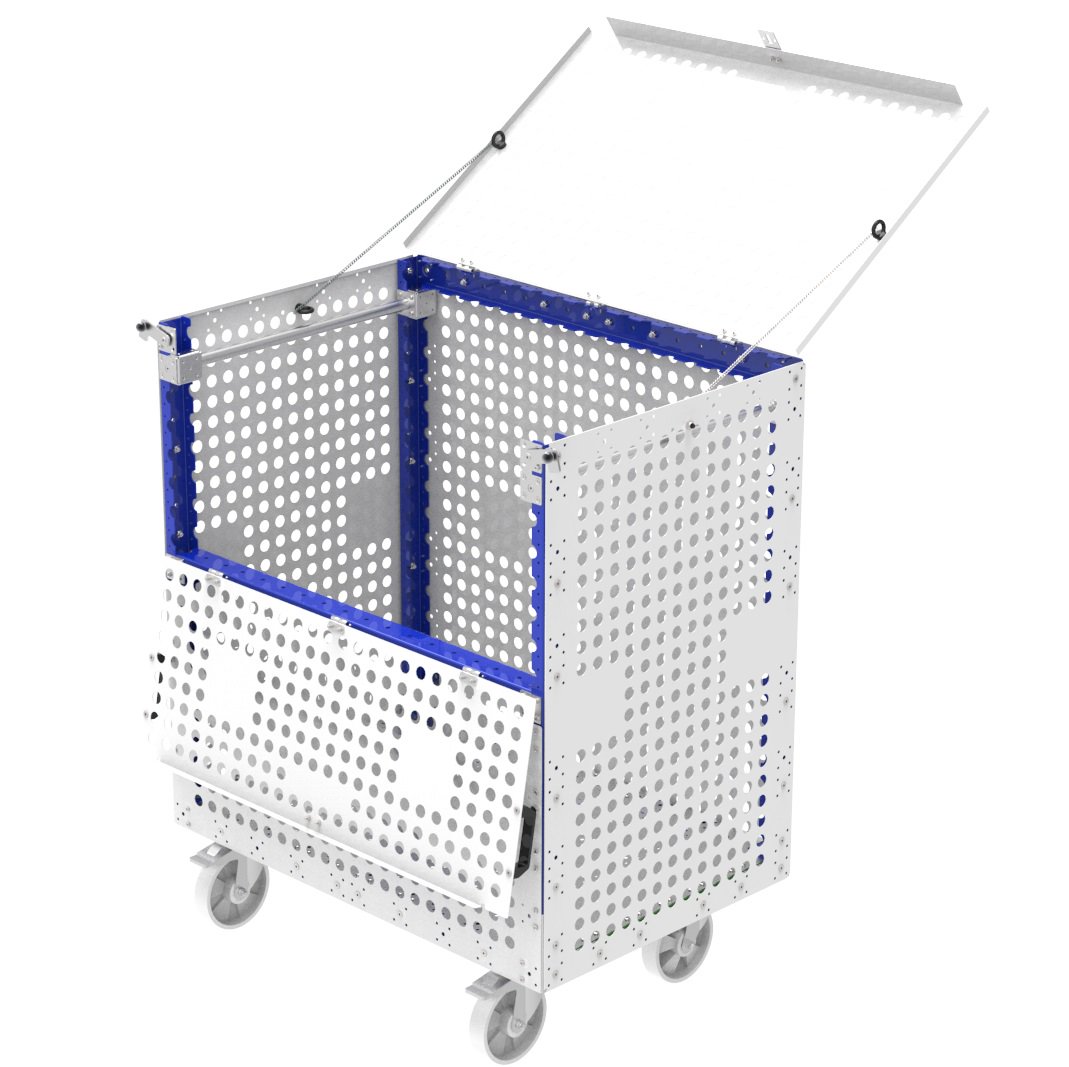

This air freight cart is used to securely hold materials in place. It is enclosed and has a lockable opening which is used to add and remove the materials, while keeping them secure. When unlocked the top of this cart can also be opened.

Parts included
FlexBeam STS FE - 820 mm 2 Q-001-0010
FlexQube 4 Q-001-1078
FlexBeam™ 1190 mm FE 4 Q-001-1400
Flexplate M10 Countersunk 4 Q-002-0009
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 8 Q-002-1162
Flexplate™ 30,5 mm hole 4 Q-002-1320
FlexPlate™ half 2 Q-002-1369
Swivel 200 mm Nylon Brake Center 2 Q-004-0044
Attachment plate - 50 x 30 mm 12 Q-005-0420
Spring Threaded Tube Connectors 4 Q-005-0469
Triangular Caster Attachment w Edge 4 Q-005-0489
U-bracket 1 Q-005-0688
Spherical Knob 2 Q-005-1146
Hinge GN237_50x50 6 Q-005-1320
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 8 Q-005-1426
Locking Handle Plate 2 Q-005-1880
M10 Lifting Eye Bolt - 17 mm 4 Q-006-0020
Countersunk Allen Head - M5 x 16 mm 2 Q-006-0026
M5 Locking Nut 4 Q-006-1021
Locking Nut M10 64 Q-006-1042
Washer M10 4 Q-006-1043
M8 x 20 mm MELC6S 10.9 Allen Head 4 Q-006-1044
Countersunk - M6 x 20 mm 24 Q-006-1049
Locking Nut M6 12 Q-006-1050
M6 Washer 2 Q-006-1076
Locking Nut M8 4 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Round Head - M5 x 12 mm 2 Q-006-1383
Self Tapping Screw M6 Torx H60 x 16 126 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 68 Q-006-1385
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 48 Q-006-1410
M8 Handle - 140 mm 2 Q-015-1409
Top Plate - 1240 x 820 mm 1 Q-016-0312
Steel Plate - 1260 x 1240 mm 1 Q-016-0446
Steel Plate - 1260 x 820 mm 2 Q-016-0447
Flip Plate - 1240 x 490 mm 1 Q-016-0448
Steel Plate - 1240 x 630 mm 1 Q-016-0449
Flip Plate w.Lock - 1260 x 790 mm 1 Q-016-0461
Outer Tube (No Plate) - 820 mm 2 Q-025-0820
