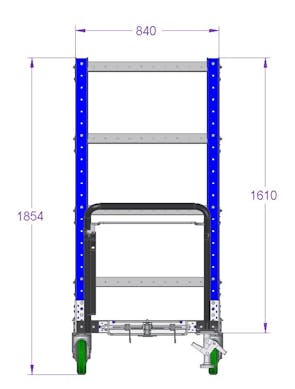

Shelf Cart - 1400 x 840 mm


All Carts are Customizable!

Flat shelf cart 1400 x 840 mm equipped with four shelves to carry various bins and totes. The cart is also equipped with a ergonomic handle bar with wire-release tow bar developed by FlexQube and a floor brake. Also featured six high quality polyurethane casters for excellent tracking properties. Shelf spacing can be adjusted within 70 mm increments and the solution can be equipped with more/less shelves.

FlexQube® is an independent company who supplies material handling equipment, tugger carts, industrial carts and racks, that are modular and robust. By using the same standard building blocks various solutions are built. The modularity makes it possible to make adjustments and additions along the way as the customers’ needs change.

FlexQube® have global presence with manufacturing in Europe and USA and many of the world's largest companies within industrial equipment and automotive as our customers. We are specialists in lean manufacturing and lean material handling with ergonomic industrial carts.

Please contact us on [email protected] for any questions or request. You are also welcomed to continue browsing through our Solutions Library™.

Contact FlexQube to Learn More

Amt.Part numberName
2Q-001-1405FlexBeam™ 840 mm FE
2Q-001-1407FlexBeam™ 700 mm FE
8Q-004-1065Wheel Attachment 105 x 77,5 mm
2Q-004-1099Caster Polyurethane 200 mm with Brake
2Q-004-1100Caster Polyurethane 200 mm
2Q-004-1101Caster Polyurethane 200 mm Fixed
1Q-004-1359Floor Brake LTL 200
1Q-005-1025Spring Cover Plate
1Q-005-1026Wire Guidance Plate
1Q-006-1405M20 Locking Nut
16Q-005-142664 mm FlexBeam™ Collet
1Q-006-1016M20 x 500 mm Hex Head
82Q-006-1042Locking Nut M10
20Q-006-1043Washer M10
10Q-006-1088M10 x 95 mm Hex Head
64Q-006-1120M8 x 16 mm Hex Head
22Q-006-1132M10 x 90 mm Hex Head
2Q-006-1161M10 x 30 mm Hex Head
64Q-006-1181Locking Nut M8
4Q-006-1208Hex Head M10x40
18Q-006-1343M10 x 50 mm Hex Head Fully Threaded
14Q-006-1381 M10 x 90 mm Extra Low Head
116Q-006-1384Self Tapping Screw M6 Torx H60x16
10Q-006-1410M10 x 25 mm Extra Low Head Allen
1Q-006-1502M10 x 60 mm Hex Head Fully Threaded
1Q-015-1052Floor Brake Handle (Europe)
1Q-017-1015Towing Equipment - Locking Lip
1Q-017-1016Towing - Spring attachment
1Q-017-1043Locking lip attachment
1Q-017-1050Trigger Handle
1Q-005-1016Damper GN352
1Q-006-1028M4 x 8 mm Hex Head
1Q-017-1066Tow Hole 28 mm - Symmetric
4Q-001-1504FlexBeam™ 1540 mm FE
4Q-005-1356Beam to Beam Corner Plate
4Q-001-1298FlexBeam™ 1330 mm
1Q-017-1080Tow Attachment to Beam
2Q-005-1070Spring for Tow Bar
16Q-005-0028Collet 35 mm
1Q-006-1112M10 x 70 mm Countersunk
1Q-017-0010Countersunk Towing Lock Pin 25 mm
1Q-006-1077Scissor Sprint 2,5 x 16 FZB
1Q-017-1062Rubber Bushing 498030
8Q-016-0140Angled plate 1388 mm
4Q-016-0141Flat Shelf 1329 x 840 mm
