Windshield Cart Rear Window - 1820 x 1610 mm
Windshield Cart Rear Window - 1820 x 1610 mm
Windshield Cart Rear Window - 1820 x 1610 mm
Windshield Cart Rear Window - 1820 x 1610 mm
Windshield Cart Rear Window - 1820 x 1610 mm
Windshield Cart Rear Window - 1820 x 1610 mm
Windshield Cart Rear Window - 1820 x 1610 mm
Q-100-0592

Windshield Cart Rear Window - 1820 x 1610 mm

Custom designed cart for transporting rear windows.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 72 inch

Load capacity: 1102 lbs

Width: 63 inch

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

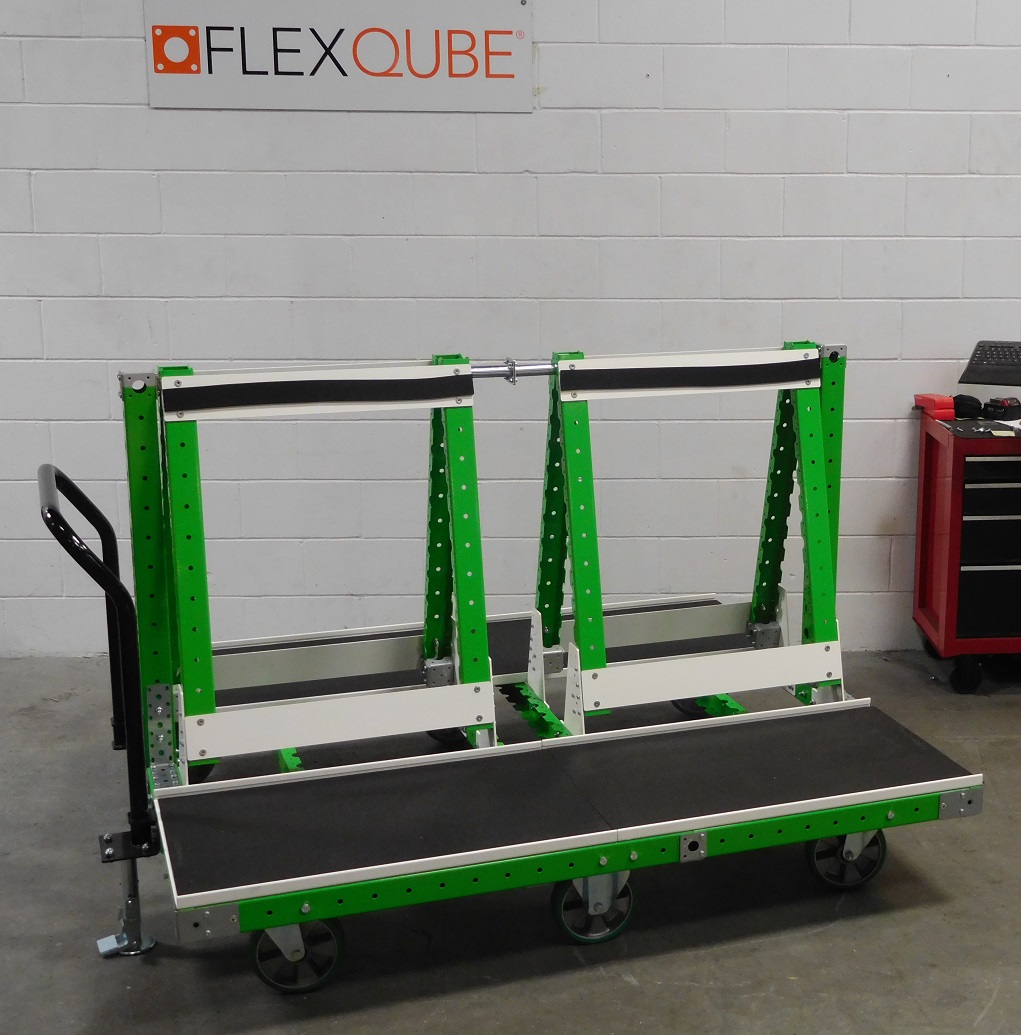

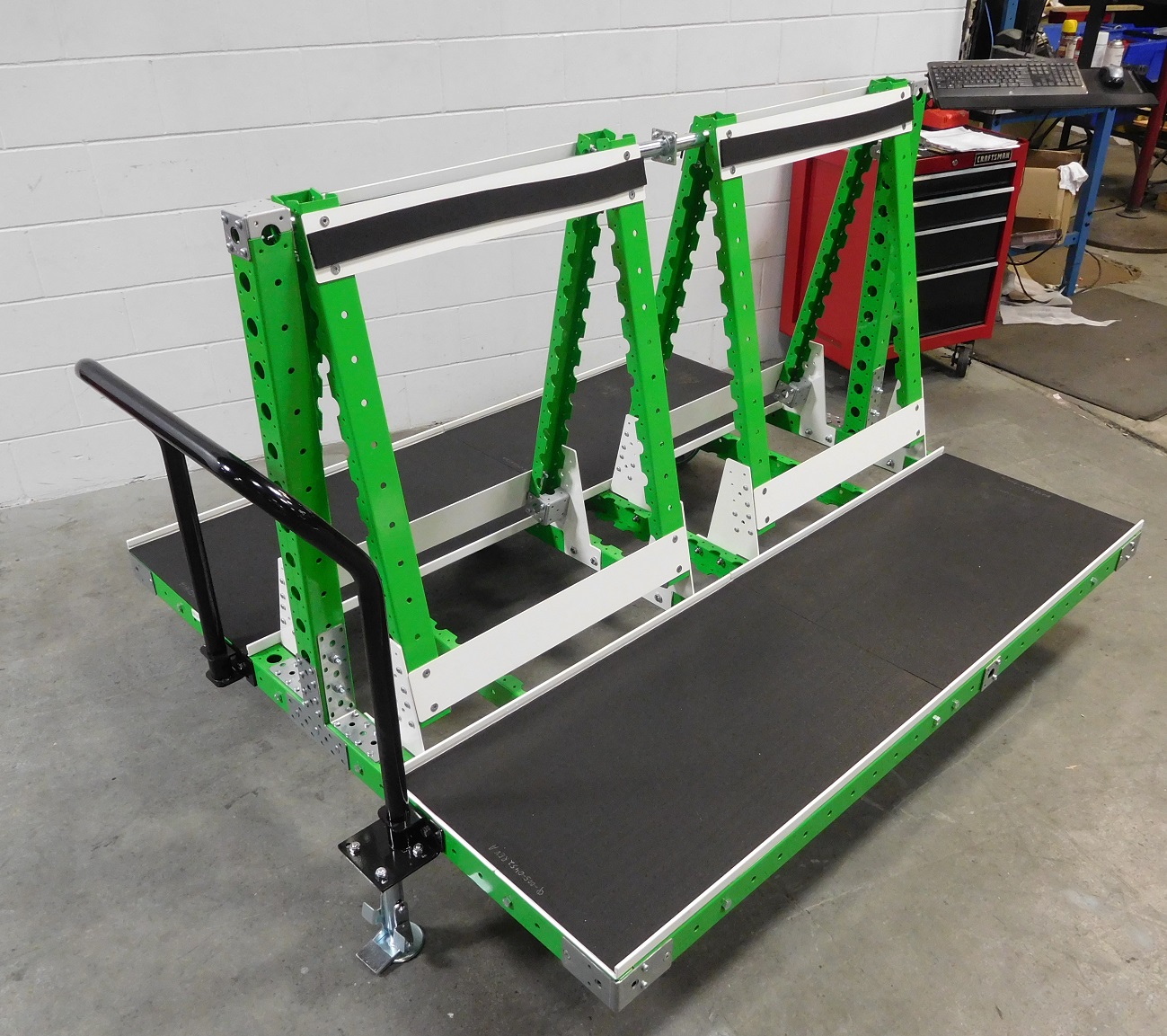

Large push cart for transportation of windshields or similar parts. The cart is equipped with a removable handlebar, six casters (four swivel and two fixed) which allows for smooth transportation as well as a floor friction brake. The steel deck and the angled support plates are equipped with rubber strips to protect the parts.

Parts included
FlexTube™ 840 mm 2 Q-000-1398
FlexQube 10 Q-001-1078
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 910 mm 4 Q-001-1304
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 910 mm FE 8 Q-001-1404
FlexBeam™ - 1470 mm FE 6 Q-001-1503
FlexBeam™ - 1610 mm FE 2 Q-001-1505
FlexPlate™ 26 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 12 Q-002-1162
FlexPlate™ half 24 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
L Bracket Joint 4 Q-005-0031
T-Joint 2 Q-005-0065
Steel Plate - 718 x 100 mm 8 Q-005-0403
Angle Support Plate 8 Q-005-0404
EPDM Rubber Strip - 716 x 70 mm 4 Q-005-0405
Rubber Carpet - 545 x 908 mm 4 Q-005-0452
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 18 Q-005-1426
Allen Head - M6 x 16 mm 4 Q-006-1011
Hex Head - M10 x 25 mm 52 Q-006-1041
Locking Nut M10 126 Q-006-1042
Locking Nut M6 4 Q-006-1050
Hex Head - M10 x 95 mm 24 Q-006-1088
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 216 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 176 Q-006-1385
Low Allen Head - M10 x 16 mm 8 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate - 279 x 908 mm 8 Q-016-0278
