Windshield Cart - 2310 x 1260 mm
Windshield Cart - 2310 x 1260 mm
Windshield Cart - 2310 x 1260 mm
Windshield Cart - 2310 x 1260 mm
Windshield Cart - 2310 x 1260 mm
Windshield Cart - 2310 x 1260 mm
Q-100-0446

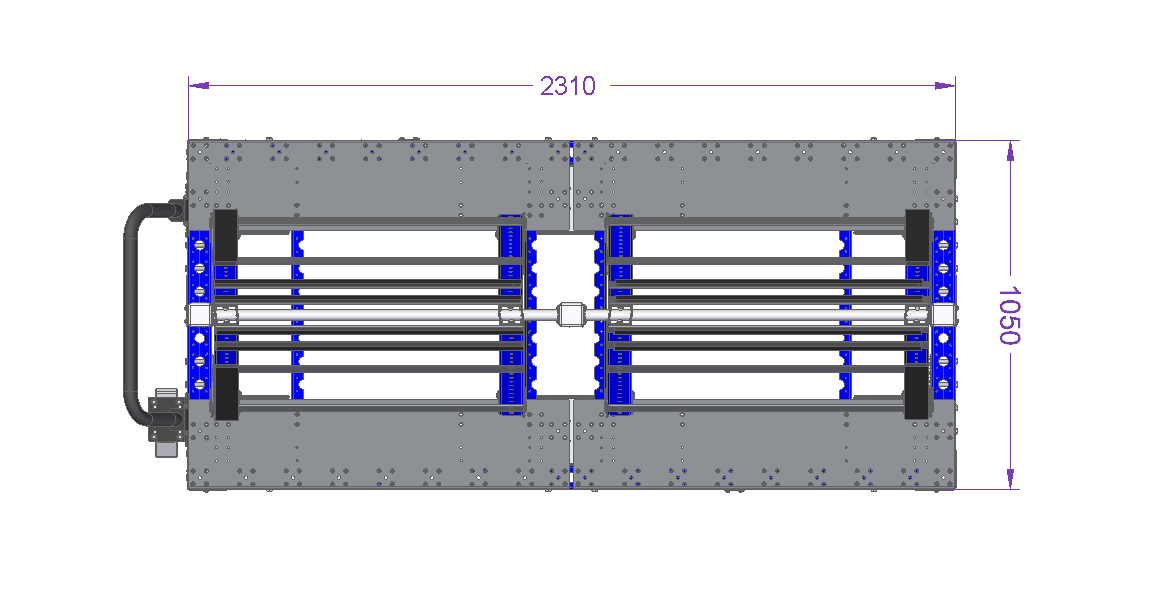

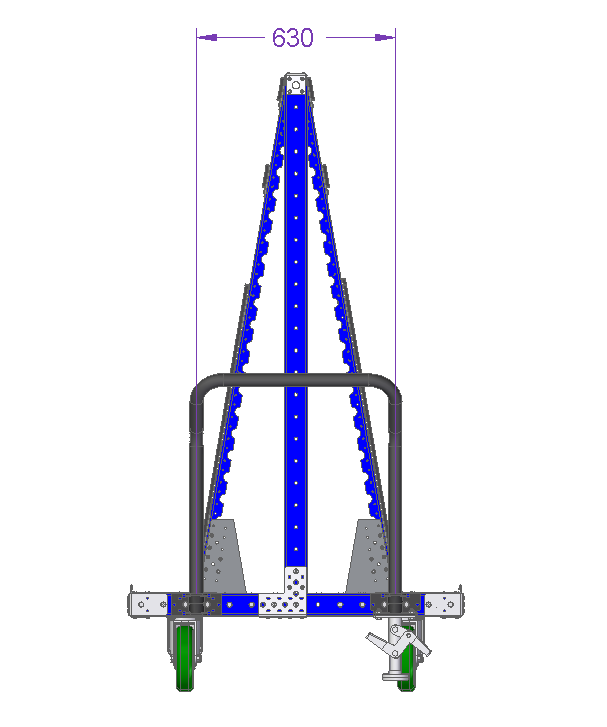

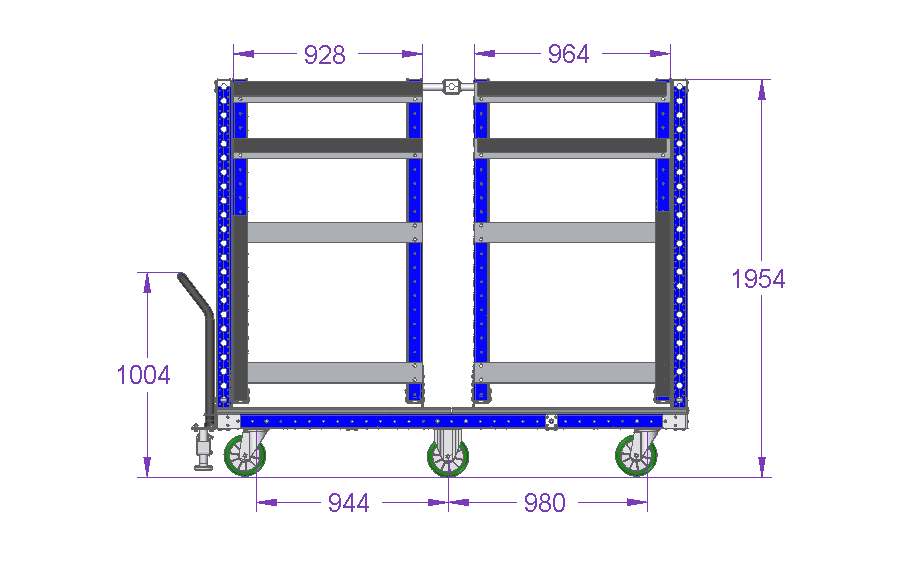

Windshield Cart - 2310 x 1260 mm

Push cart designed to transport windshields for buses. Equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 91 inch

Load capacity: 1102 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

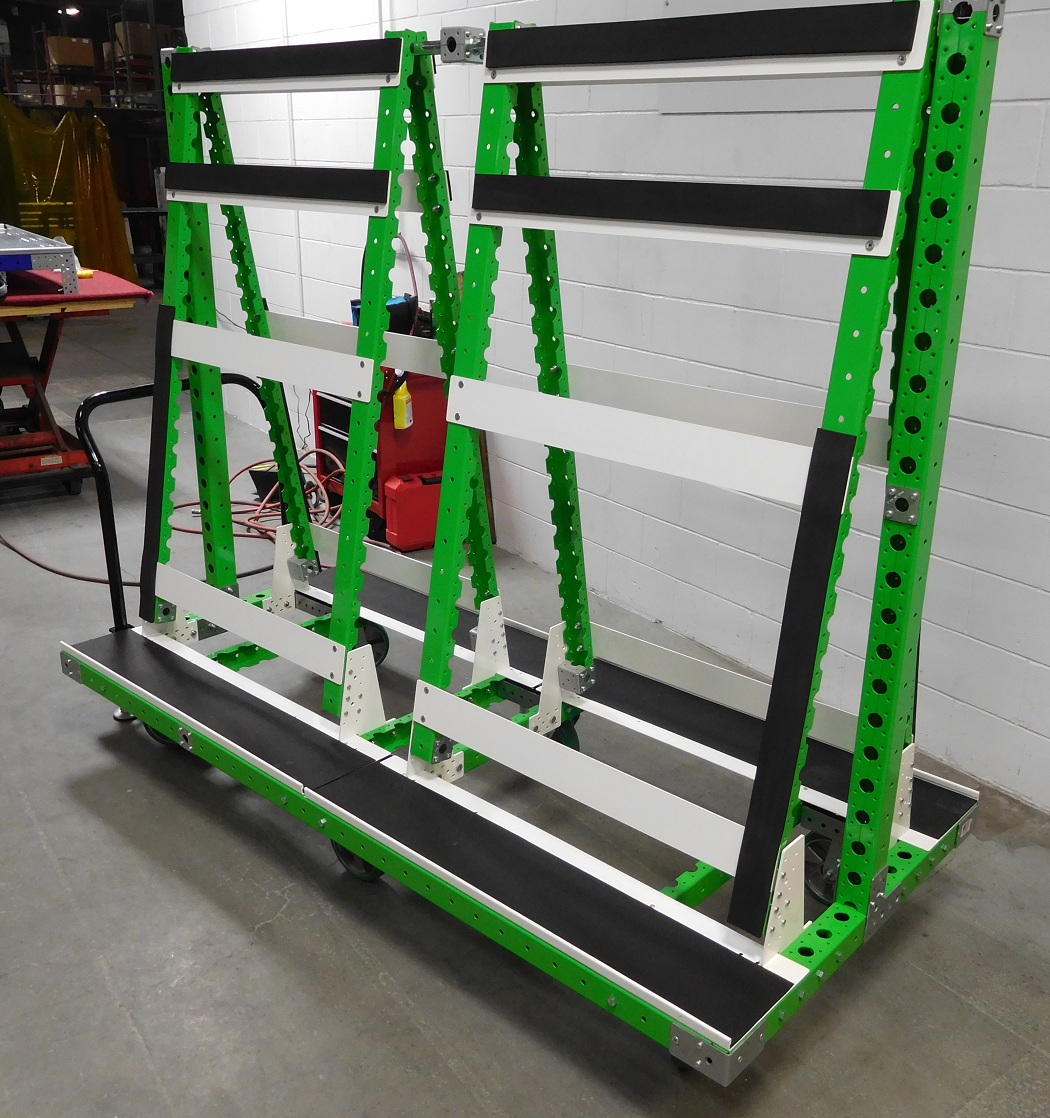

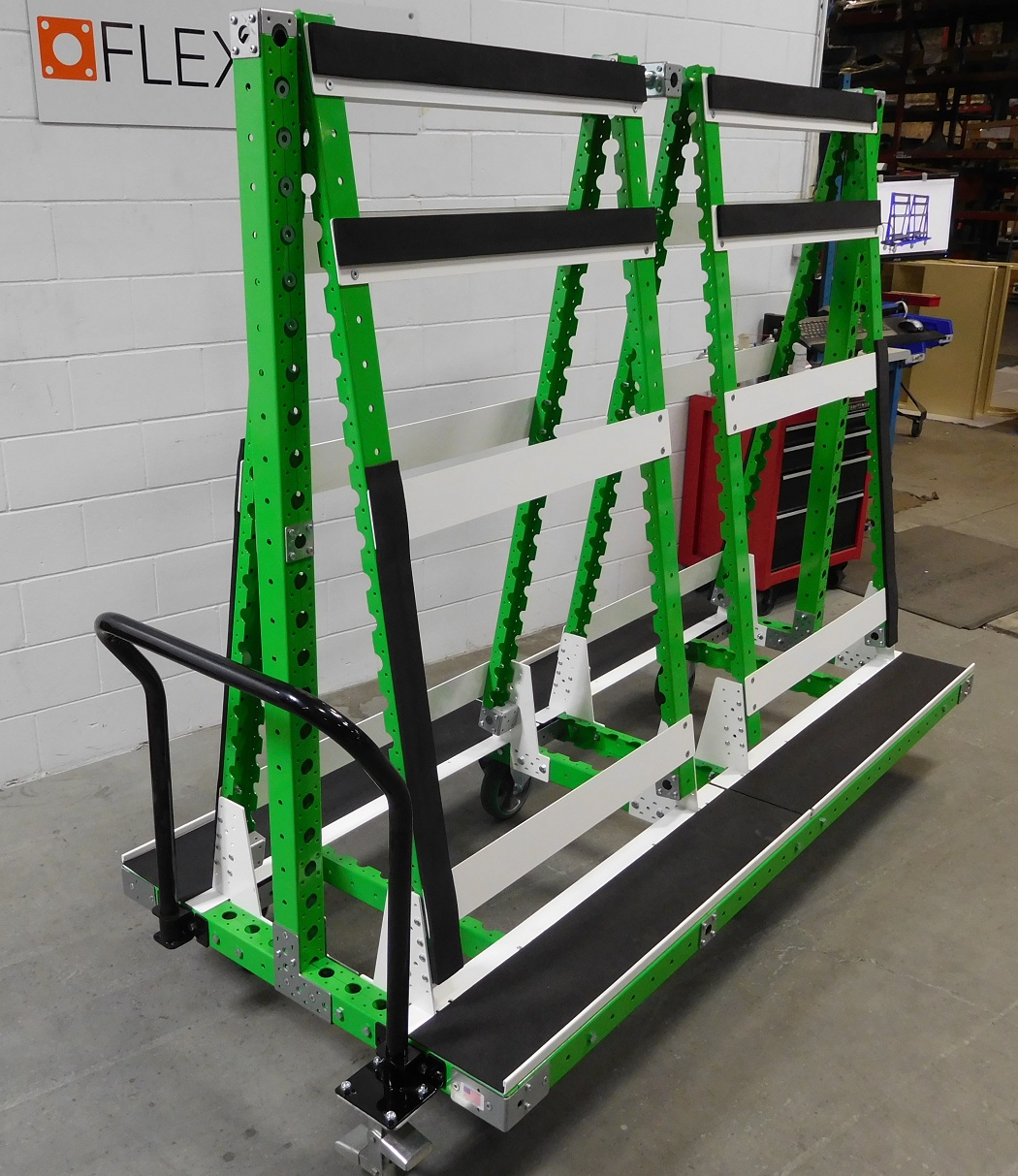

This cart was designed to transport windshields for buses between the warehouse and assembly area. The windshield is placed on the rubber covered deck and leans against the angled top structure which has been covered in foam to protect the parts. The cart is equipped with a handlebar and a floor brake as well as six polyurethane casters. Two fixed and four swivel making it easy to maneuver manually.

Parts included
FlexTube™ 1050 mm 2 Q-000-1053
FlexQube 12 Q-001-1078
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 6 Q-001-1404
FlexBeam™ - 1610 mm FE 8 Q-001-1505
FlexPlate™ 22 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 12 Q-002-1162
FlexPlate™ half 24 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
Steel Plate - 928 mm 8 Q-005-0292
Steel plate - 964 mm 8 Q-005-0293
Angle support plate 8 Q-005-0294
EPDM Rubber strip - 925 mm 12 Q-005-0295
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 8 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 156 Q-006-1042
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 20 Q-006-1132
Hex Head - M10 x 20 mm 40 Q-006-1232
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 184 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 84 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 68 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top plate - 265 x 1150 mm 4 Q-016-0222
