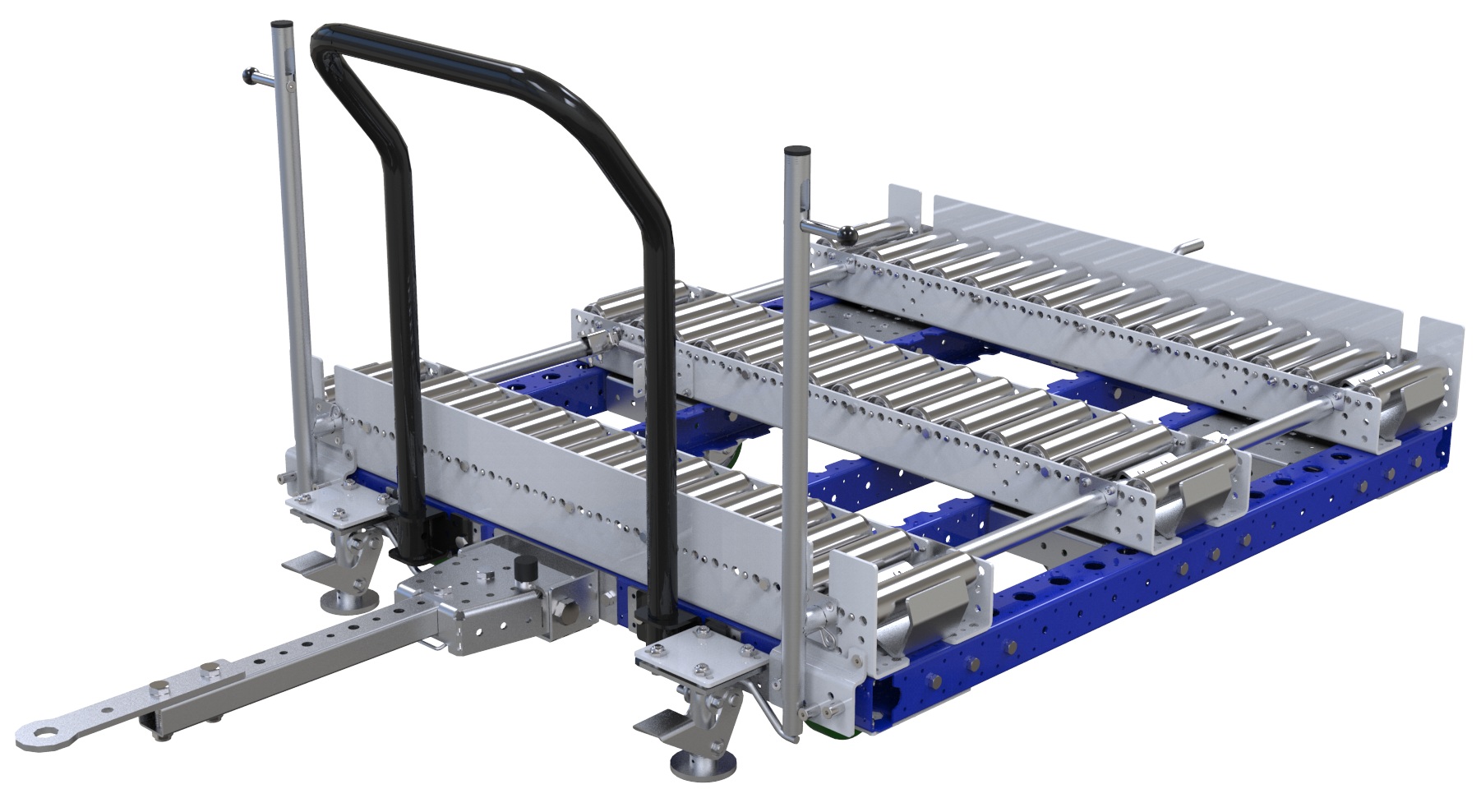

Language: United States | English Europe | English Mexico | Español Germany | Deutsch FlexQube CartsClose menu All cartseQart®Pallet & Container SolutionsShelf SolutionsKit Carts & Specialized SolutionsFlow SolutionsHanging SolutionsMother-Daughter SolutionsPartsView all categoriesAutomated eQartDesignCase studiesNewsContact Type a word to search Search for carts, news posts and more. Suggestions Tugger cart eQart Find a sales person How do I order? Menu CartsClose menu All cartseQart®Pallet & Container SolutionsShelf SolutionsKit Carts & Specialized SolutionsFlow SolutionsHanging SolutionsMother-Daughter SolutionsPartsView all categoriesAutomated eQartDesignCase studiesNewsContact Case studiesCustomer careInvestor relationsBecome a FlexQube DisitributorHow it works FlexQube ShopCustom DesignFAQMaterial Handling DictionaryCareerAbout FlexQube LinkedIn YouTube Facebook Instagram Twitter Language: United States | English Europe | English Mexico | Español Germany | Deutsch Back Back Q-100-1744 Tugger Roller Cart - 1120 x 1260 mm Roller cart for pallets/containers, with locking, handlebar, drop pin towbar and two-floor friction brakes. Get a quote 100% free. No commitment. Get a quote Close Tugger Roller Cart – 1120 x 1260 mm Email Phone Location Comments (optional) Attach a file (optional) Upload Maximum file size is 10mb. We will get back to you within 24 hours. (Unless it’s during holidays.) Create your own cart Boost Efficiency Heavy-duty & modular Technical specifications Transportation method Manual, Tugger Industry Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy Width 44 inch Caster size 5 inch Type of tow bar Tongue and Hitch Parts included Inner Tube (No Plate) - 640 mm 2 Q-000-0215 FlexPlate™ Half w. CSK holes 8 Q-002-0021 Flexplate™ M10 20 Q-002-1162 FlexPlate™ half 8 Q-002-1369 Roller Guide - 1120 mm 4 Q-003-0224 Roller Guide (Side) - 1120 mm 2 Q-003-0225 Steel Roller - 200 mm (8 mm Axle) 45 Q-004-0058 Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065 Caster Polyurethane - 125 mm 4 Q-004-1106 Caster Polyurethane 125 mm Fixed 2 Q-004-1107 Floor Lock COLSON 4 x 4-1/2 2 Q-004-1369 L Bracket Joint 2 Q-005-0031 Floor brake plate 2 Q-005-0275 27 mm collet - 15 x 2 mm 4 Q-005-0341 L-Bracket Joint - 70 x 70 mm 2 Q-005-0429 Cotter Pin 1/4 4 Q-005-0464 Triangle Joint With Notch 4 Q-005-0832 Wheel Attachment Box 6 Q-005-1079 Tube end plug GN 991-D30 2 Q-005-1118 Spherical Knob 2 Q-005-1146 64 mm FlexBeam™ Collet 24 Q-005-1426 Spring Attch. Plate 2 Q-005-2410 Fixture Plate - 5 mm 2 Q-005-2411 Allen Head Partly threaded - M6 x 50 mm 4 Q-006-0035 M10 Collet - 7 mm 8 Q-006-0043 Hex Head - M8 x 230 mm 15 Q-006-0055 M6 x 20 K6S 10.9 Round Head (black) 4 Q-006-1018 Hex Head - M14 x 60 mm 4 Q-006-1036 Fully Threaded - M10 x 120 mm 4 Q-006-1037 Locking Nut M14 4 Q-006-1039 Hex Head - M10 x 25 mm 16 Q-006-1041 Locking Nut M10 99 Q-006-1042 Locking Nut M6 8 Q-006-1050 Hex Head - M10 x 95 mm 6 Q-006-1088 Hex Head - M10 x 90 mm 29 Q-006-1132 Hex Head - M10 x 30 mm 8 Q-006-1161 Locking Nut M8 15 Q-006-1181 Extra low head [1,5 mm] M10x40 mm 26 Q-006-1361 Extra Low Head - M10 x 90 mm 2 Q-006-1381 Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384 Countersunk Self Tapping Screw - M6 x 20 56 Q-006-1385 Low Allen Head - M10 x 16 mm 2 Q-006-1409 Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410 Stopper Plate - 100 x 110 mm 6 Q-011-0005 Locking Tube Weld Assembly 1 Q-011-0010 Locking Tube Weld Assembly - Mirror 1 Q-011-0011 Pull spring - 4 inch 2 Q-012-0042 Handlebar Attachment US 2 Q-015-0031 Tube for handlebar US - 490 mm 1 Q-015-0075 Collet - 11.5 mm 2 Q-015-1048 US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014 Spring Loaded Tow Hinge 1 Q-017-0067 Heavy Duty Tow Hinge - Narrow 1 Q-017-0087 Towing Lip - 28 mm 1 Q-017-1010 FlexBeam™ - 1190 mm 4 Q-020-1190 FlexBeam™ STS FE - 980 mm 2 Q-021-0980 Show all More info This roller cart for pallets or containers is one of the best options to save time and space in production lines when transporting pallets, and a lifting truck is not available or want to avoid using them. The rollers help push the pallets easily and the locking; placed at an ergonomic height, keeps the pallets secured in the cart during transportation. The cart is equipped with floor brake, top bent handlebar and drop pin towbar. Top selling carts Product Q-100-0112 Tugger Cart - 50 x 50 inch Read more Product Q-100-1157 Tube Cart - 1960 x 910 mm Read more Product Q-100-1224 Tugger Cart - 1260 x 1190 mm Read more Product Q-100-0609 Shelf Cart 55 x 41 inch Read more Ask us about this cart Employee Sales Manager US Midwest & Canada Andy Legut +1 (734) 624 2121 Email me Employee Sales Manager US Southeast Shawn Lynch +1(864) 434-6219 Email me Case studies Case Kolonial.no FlexQube was able to help Kolonial.no implement a fleet of robust & flexible carts. Read more Case DANA DANA achieved their goals and are ready to meet future challenges with the eQart. Read more Case Autoliv Using high-quality carts to reduce downtime at Autoliv in Mexico Read more Want to know more? Got questions? Please don't hesitate to contact us. +1 (734) 624 2121 Contact us Questions & Answers LinkedIn YouTube Facebook Instagram Twitter Language: United States | English Europe | English Mexico | Español Germany | Deutsch ©2021 FlexQube – All rights reserved Page generated on Slave: 2021-02-25T11:23:04+00:00 Policy & Terms Contact us Close Hi, how can I help you? Email Location Comments* Attach a file (optional) Upload Maximum file size is 10mb. Something went wrong Please try again or contact sales. We will get back to you within 24 hours. (Unless it’s during holidays.)
Back Back Q-100-1744 Tugger Roller Cart - 1120 x 1260 mm Roller cart for pallets/containers, with locking, handlebar, drop pin towbar and two-floor friction brakes. Get a quote 100% free. No commitment. Get a quote Close Tugger Roller Cart – 1120 x 1260 mm Email Phone Location Comments (optional) Attach a file (optional) Upload Maximum file size is 10mb. We will get back to you within 24 hours. (Unless it’s during holidays.) Create your own cart Boost Efficiency Heavy-duty & modular Technical specifications Transportation method Manual, Tugger Industry Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy Width 44 inch Caster size 5 inch Type of tow bar Tongue and Hitch Parts included Inner Tube (No Plate) - 640 mm 2 Q-000-0215 FlexPlate™ Half w. CSK holes 8 Q-002-0021 Flexplate™ M10 20 Q-002-1162 FlexPlate™ half 8 Q-002-1369 Roller Guide - 1120 mm 4 Q-003-0224 Roller Guide (Side) - 1120 mm 2 Q-003-0225 Steel Roller - 200 mm (8 mm Axle) 45 Q-004-0058 Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065 Caster Polyurethane - 125 mm 4 Q-004-1106 Caster Polyurethane 125 mm Fixed 2 Q-004-1107 Floor Lock COLSON 4 x 4-1/2 2 Q-004-1369 L Bracket Joint 2 Q-005-0031 Floor brake plate 2 Q-005-0275 27 mm collet - 15 x 2 mm 4 Q-005-0341 L-Bracket Joint - 70 x 70 mm 2 Q-005-0429 Cotter Pin 1/4 4 Q-005-0464 Triangle Joint With Notch 4 Q-005-0832 Wheel Attachment Box 6 Q-005-1079 Tube end plug GN 991-D30 2 Q-005-1118 Spherical Knob 2 Q-005-1146 64 mm FlexBeam™ Collet 24 Q-005-1426 Spring Attch. Plate 2 Q-005-2410 Fixture Plate - 5 mm 2 Q-005-2411 Allen Head Partly threaded - M6 x 50 mm 4 Q-006-0035 M10 Collet - 7 mm 8 Q-006-0043 Hex Head - M8 x 230 mm 15 Q-006-0055 M6 x 20 K6S 10.9 Round Head (black) 4 Q-006-1018 Hex Head - M14 x 60 mm 4 Q-006-1036 Fully Threaded - M10 x 120 mm 4 Q-006-1037 Locking Nut M14 4 Q-006-1039 Hex Head - M10 x 25 mm 16 Q-006-1041 Locking Nut M10 99 Q-006-1042 Locking Nut M6 8 Q-006-1050 Hex Head - M10 x 95 mm 6 Q-006-1088 Hex Head - M10 x 90 mm 29 Q-006-1132 Hex Head - M10 x 30 mm 8 Q-006-1161 Locking Nut M8 15 Q-006-1181 Extra low head [1,5 mm] M10x40 mm 26 Q-006-1361 Extra Low Head - M10 x 90 mm 2 Q-006-1381 Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384 Countersunk Self Tapping Screw - M6 x 20 56 Q-006-1385 Low Allen Head - M10 x 16 mm 2 Q-006-1409 Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410 Stopper Plate - 100 x 110 mm 6 Q-011-0005 Locking Tube Weld Assembly 1 Q-011-0010 Locking Tube Weld Assembly - Mirror 1 Q-011-0011 Pull spring - 4 inch 2 Q-012-0042 Handlebar Attachment US 2 Q-015-0031 Tube for handlebar US - 490 mm 1 Q-015-0075 Collet - 11.5 mm 2 Q-015-1048 US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014 Spring Loaded Tow Hinge 1 Q-017-0067 Heavy Duty Tow Hinge - Narrow 1 Q-017-0087 Towing Lip - 28 mm 1 Q-017-1010 FlexBeam™ - 1190 mm 4 Q-020-1190 FlexBeam™ STS FE - 980 mm 2 Q-021-0980 Show all More info This roller cart for pallets or containers is one of the best options to save time and space in production lines when transporting pallets, and a lifting truck is not available or want to avoid using them. The rollers help push the pallets easily and the locking; placed at an ergonomic height, keeps the pallets secured in the cart during transportation. The cart is equipped with floor brake, top bent handlebar and drop pin towbar.
