Tugger Cart - 1190 x 1260 mm
Tugger Cart - 1190 x 1260 mm
Tugger Cart - 1190 x 1260 mm
Tugger Cart - 1190 x 1260 mm
Q-100-1444

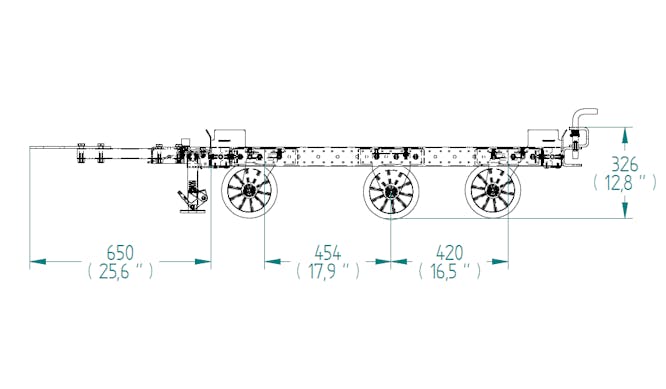

Tugger Cart - 1190 x 1260 mm

This tugger pallet cart is designed to transport pallets and containers in a tugger train.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 47 inch

Length: 50 inch

Load capacity: 1102 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

This cart is designed to transport pallets and containers. It is equipped with a drop-pin and hitch towbar and six high-quality polyurethane casters which give the cart excellent tracking properties when connected in a train. Also, the cart uses a floor friction brake and corner pallet guides to help to place the containers or pallets on the frame.

Parts included
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake - 200 mm 1 Q-004-1613
Floor brake plate 1 Q-005-0275
M10 Collet - 8 mm 16 Q-005-0943
Wheel Attachment Box 6 Q-005-1079
Angled Corner Plate 4 Q-005-1098
64 mm FlexBeam™ Collet 24 Q-005-1426
M10 Collet - 15 mm 8 Q-006-0027
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 13 Q-006-1041
Locking Nut M10 80 Q-006-1042
Washer M10 12 Q-006-1043
Hex Head - M10 x 95 mm 1 Q-006-1088
Hex Head - M10 x 90 mm 6 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Extra low head [1,5 mm] M10x40 mm 8 Q-006-1361
Extra Low Head - M10 x 90 mm 29 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 19 Q-006-1410
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ - 1190 mm 4 Q-020-1190
FlexBeam FE - 1050 mm 2 Q-021-1050
