Trolley for Cardboard - 1750 x 2240 mm
Trolley for Cardboard - 1750 x 2240 mm
Trolley for Cardboard - 1750 x 2240 mm
Trolley for Cardboard - 1750 x 2240 mm
Q-100-1719

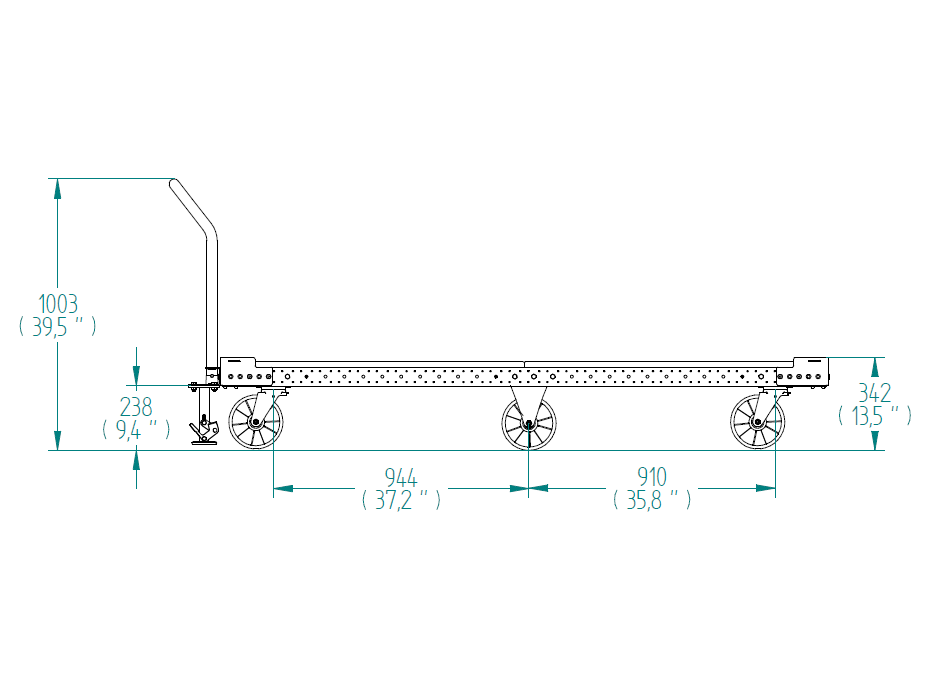

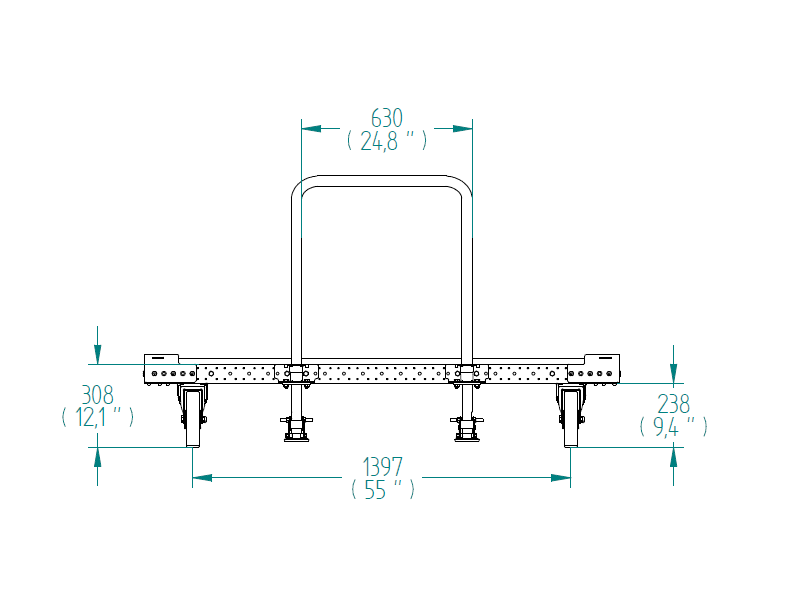

Flat Deck cart for Cardboards - 1750 x 2240 mm

Flat deck cart designed for lightweight panels, cardboard, pallets or containers.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 69 inch

Length: 88 inch

Load capacity: 1323 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Cardboard

More info

This flat deck cart is great for transportation of lightweight panels, cardboards, larger pallets or containers. The cart is equipped with two-floor brakes, a removable top bent handlebar, corner pallet guides, and six high-quality nylon casters which gives the cart a smooth movement and requires less push-pull force to move.



Parts included
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Polyamide Caster 200 mm without Brake 4 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
US Floor Brake - 200 mm 2 Q-004-1613
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 26 Q-005-1426
Hex Head - M10 x 25 mm 48 Q-006-1041
Locking Nut M10 86 Q-006-1042
Hex Head - M10 x 90 mm 18 Q-006-1132
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handlebar / Floor Brake Attachment US 2 Q-015-0029
Tube for Handlebar US 1 Q-015-0032
Top Plate - 1120 x 1750 mm 2 Q-016-0978
FlexBeam™ - 2170 mm 4 Q-020-2170
FlexBeam™ FE - 1610 mm 6 Q-021-1610
FlexBeam™ FE - 1750 mm 2 Q-021-1750
