Transport Cart - 2170 x 980 mm
Transport Cart - 2170 x 980 mm
Transport Cart - 2170 x 980 mm
Transport Cart - 2170 x 980 mm
Q-100-0774

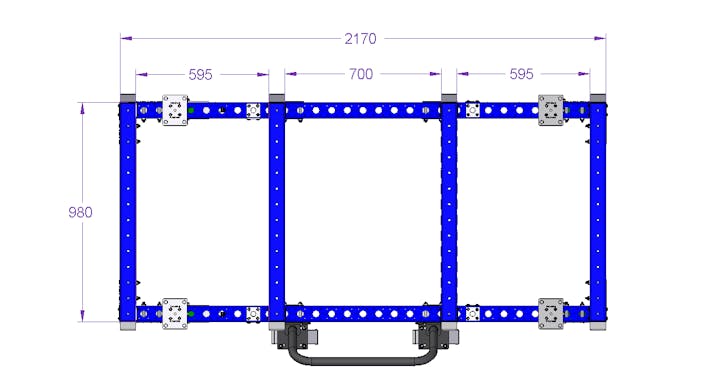

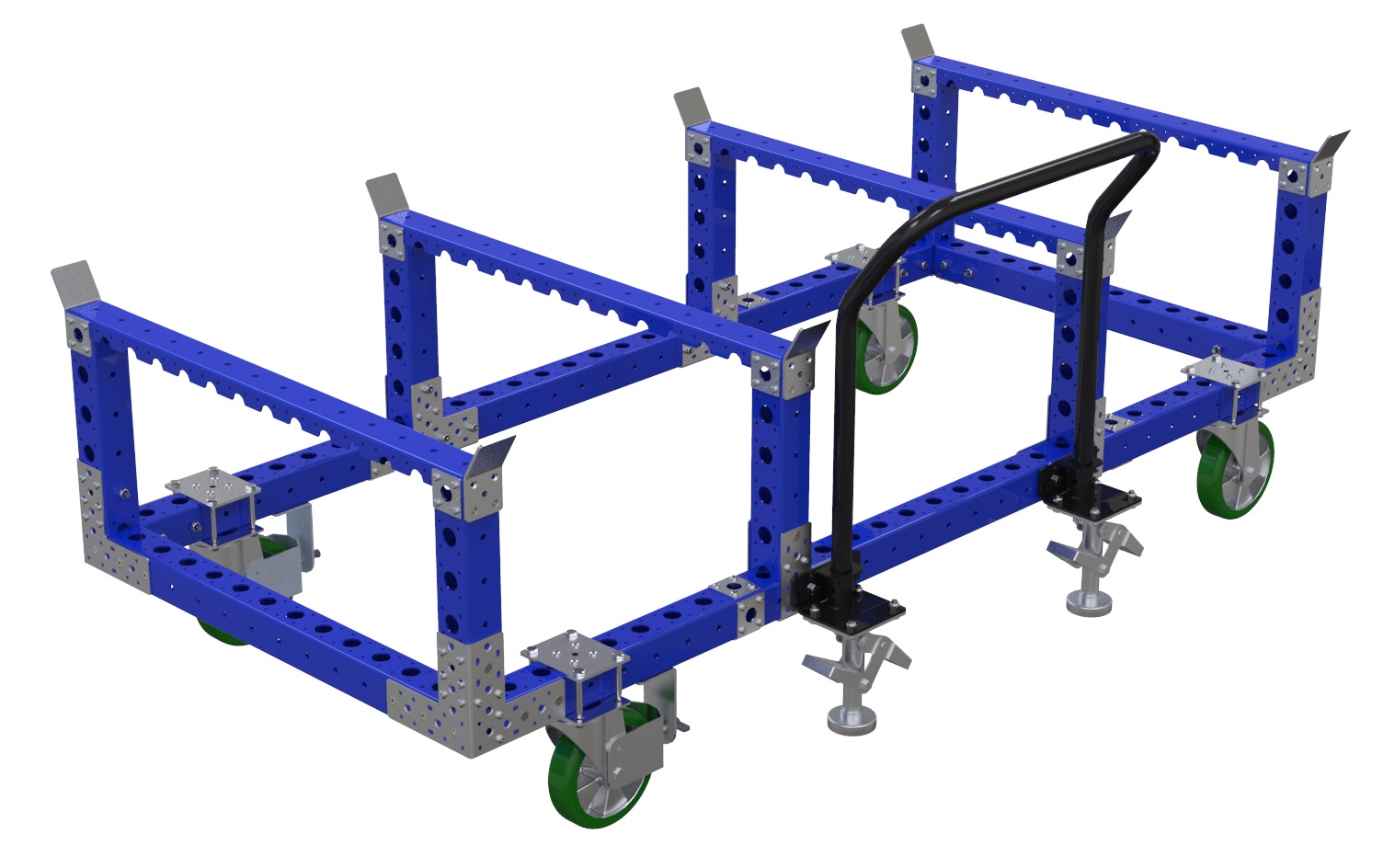

Transport Cart - 2170 x 980 mm

Specially designed transport cart for transporting large parts.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 39 inch

Length: 85 inch

Load capacity: 1433 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

This large cart was designed to hold four containers at the same time. The containers are loaded into each section and are held securely in place. This cart comes equipped with an ergonomic handlebar for easier manual transportation. There are also two floor lock brakes attached to keep the cart secure when not in use.

Parts included
FlexBeam™ - 1540 mm 4 Q-001-1295
FlexBeam™ 560 mm 4 Q-001-1309
FlexBeam™ 350 mm 16 Q-001-1312
FlexBeam™ 980 mm FE 6 Q-001-1403
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 36 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Floor Brake LTL - 200 mm 2 Q-004-1359
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Directional Locking Plate [Beam] 2 Q-005-1476
Directional Locking Plate [Wheel] 2 Q-005-1477
Indexing Plunger GN712-8-M16x1,5-R 2 Q-005-1479
Heavy Duty Joint M10 4 Q-005-1580
Corner Pallet Guide 8 Q-005-1684
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 60 Q-006-1042
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 16 Q-006-1132
Extra Low Head - M10 x 90 mm 28 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 256 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handlebar / Floor brake attachment EUR 2 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
