Tool Cart 630 x 770 mm
Tool Cart 630 x 770 mm
Tool Cart 630 x 770 mm
Tool Cart 630 x 770 mm
Tool Cart 630 x 770 mm
Q-100-0428

Tool Cart 630 x 770 mm

This cart was designed to be a mobile storage for tools at an assembly station.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 25 inch

Length: 30 inch

Levels: 2

Load capacity: 441 lbs

Load Capacity per Level: 220 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

More info

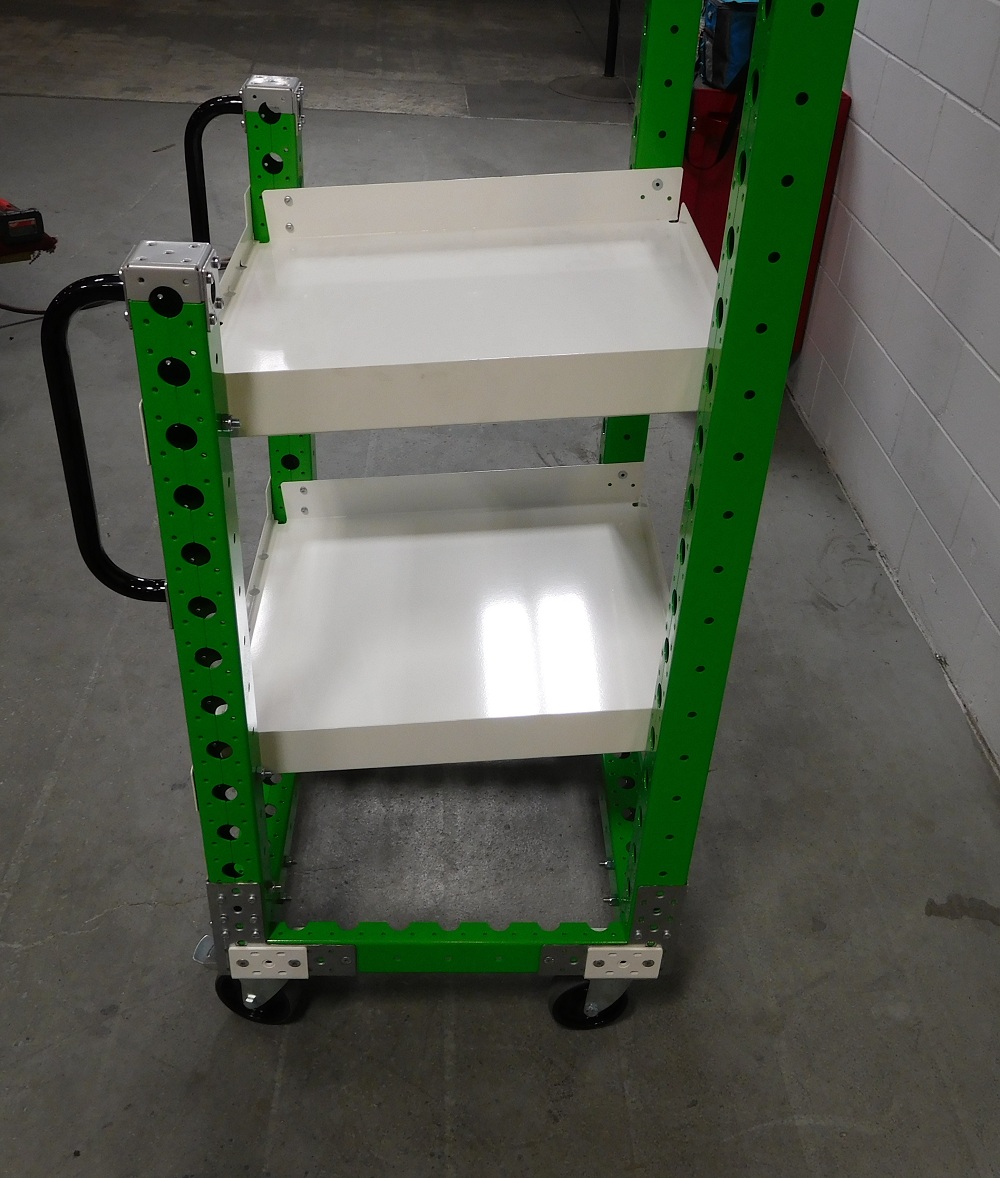

This cart was designed to be a mobile storage for tools at an assembly station. Angled shelves gives better visibility and are a great way to present tools and other material. The cart is equipped with two handlebars and three nylon swivel casters, two with brake as well as one fixed caster making it easy to manuever in tight areas.

Parts included
FlexTube™ 630 mm 1 Q-000-1312
FlexQube 4 Q-001-1078
FlexBeam™ - 1540 mm 4 Q-001-1295
FlexBeam™ 910 mm 4 Q-001-1304
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexPlate™ 6 Q-002-1001
Flexplate™ M10 4 Q-002-1162
Swivel Caster - 125 mm 1 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 1 Q-004-1365
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Hex Head Fully Threaded - M8 x 35 mm 4 Q-006-1023
Locking Nut M10 32 Q-006-1042
Hex Head - M10 x 90 mm 4 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 88 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
M8 Handlebar US - 350 mm 2 Q-015-1089
Flow Shelf - 770 x 632 2 Q-016-0013
