Tool Balancer Cart - 1015 x 840 mm
Tool Balancer Cart - 1015 x 840 mm
Tool Balancer Cart - 1015 x 840 mm
Tool Balancer Cart - 1015 x 840 mm
Q-100-0590

Tool Balancer Cart - 1015 x 840 mm

Custom designed tool balancing cart.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

Length: 40 inch

Load capacity: 29 lbs

Width: 33 inch

Caster size: 5 inch

Caster Type: Gray

More info

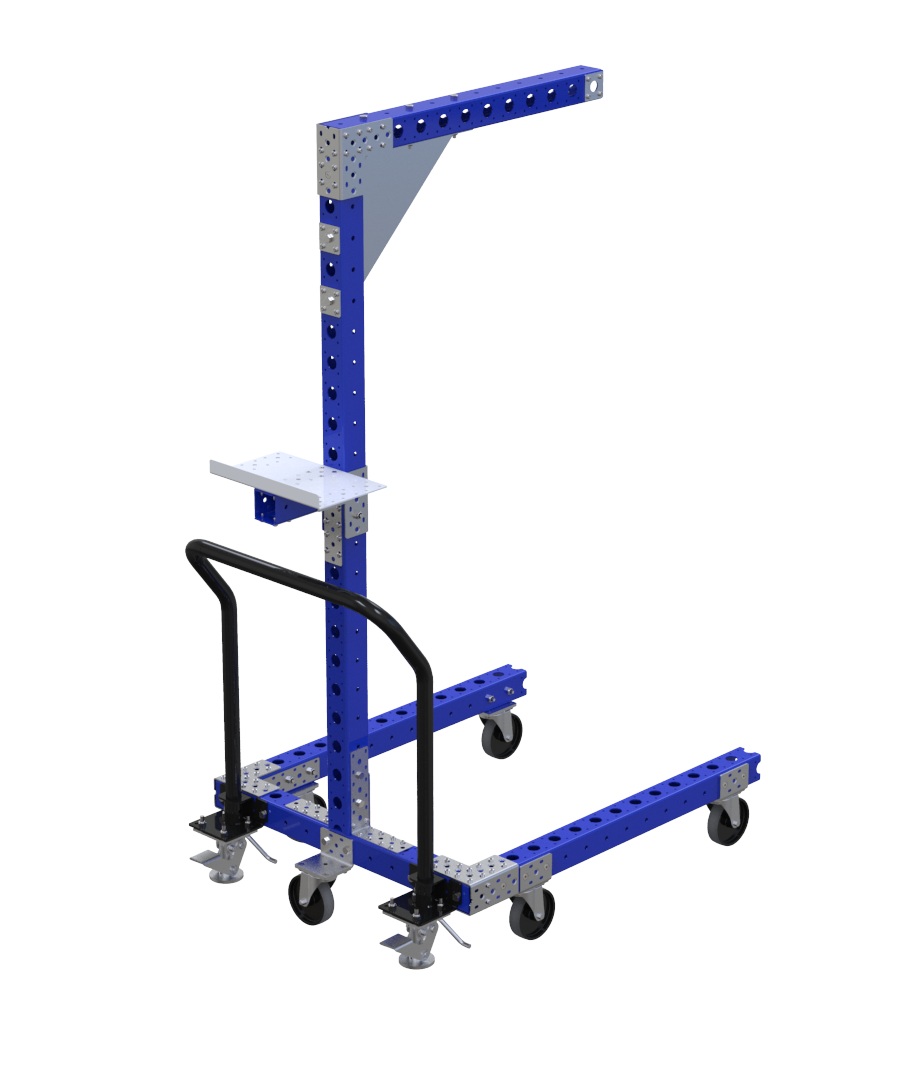

This custom designed cart is for balancing tools along the assembly line. This cart comes equipped with an ergonomic handlebar for easier manual transportation. It also has five swivel casters better handling along the assembly line.

Parts included
FlexBeam™ - 1610 mm 2 Q-001-1294
FlexBeam™ 980 mm 4 Q-001-1303
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 770 mm FE 1 Q-001-1406
FlexBeam™ 700 mm FE 1 Q-001-1407
FlexBeam™ 210 mm FE 2 Q-001-1414
FlexPlate™ 2 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Floor lock COLSON - 4 x 4-1/2 - 125 - 150 mm 2 Q-004-0031
Swivel Caster - 125 mm 5 Q-004-1363
L Bracket Joint 5 Q-005-0031
T-Joint 1 Q-005-0065
Caster to Beam Attachment - 80 x 60 mm 5 Q-005-0265
Triangle Corner Plate 1 Q-005-1145
64 mm FlexBeam™ Collet 9 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 35 Q-006-1042
Washer M10 28 Q-006-1043
Hex Head - M10 x 90 mm 11 Q-006-1132
Locking Nut M8 20 Q-006-1181
M8 x 16 mm Countersunk 20 Q-006-1214
Extra low head [1,5 mm] M10x40 mm 8 Q-006-1361
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 140 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 8 Q-006-1385
Handlebar / Floor Brake Attachment US 2 Q-015-0029
Tube for Handlebar US 1 Q-015-0032
Top Plate - 350 x 210 mm 1 Q-016-0276
