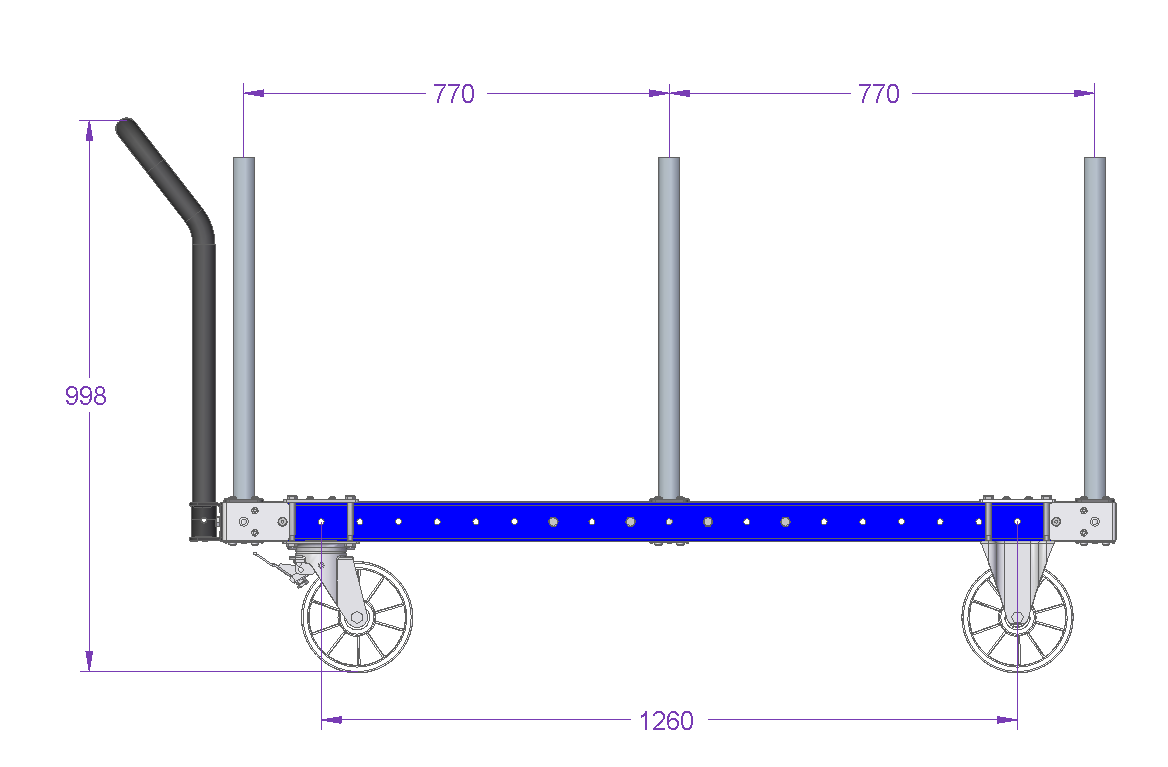

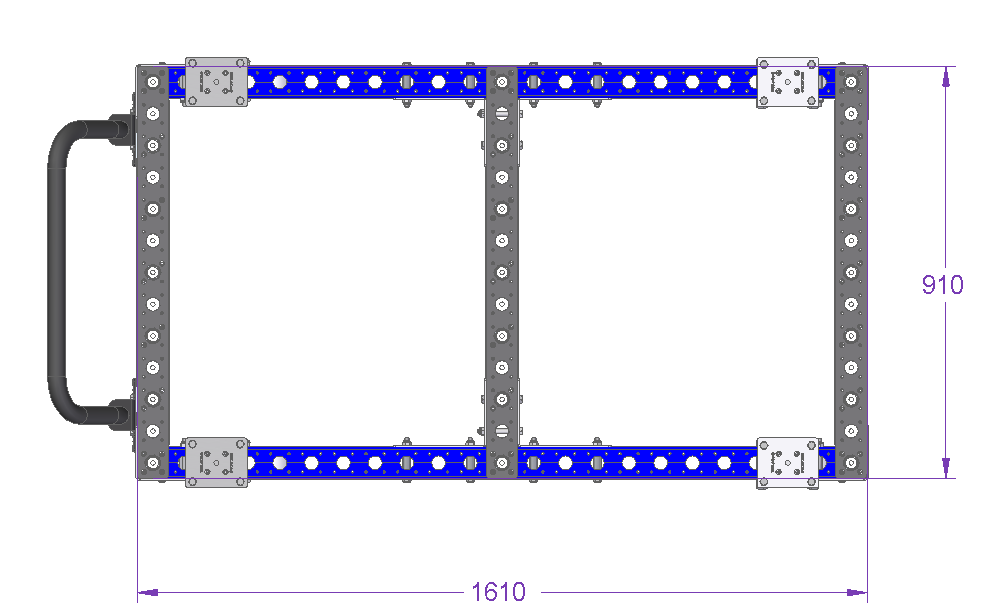

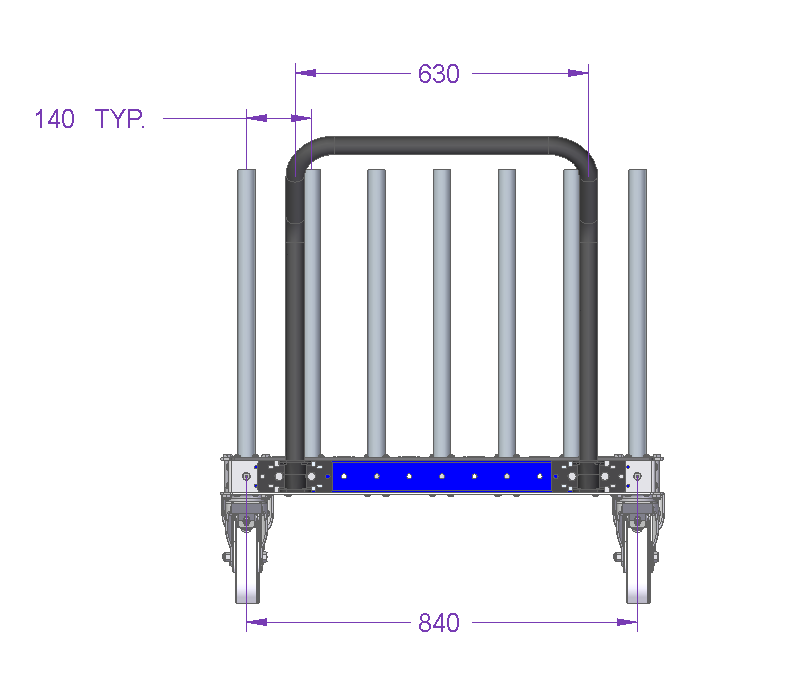

Stage Cart - 1610 x 910 mm
Stage Cart - 1610 x 910 mm
Stage Cart - 1610 x 910 mm
Stage Cart - 1610 x 910 mm
Stage Cart - 1610 x 910 mm
Stage Cart - 1610 x 910 mm
Q-100-0692

Stage Cart - 1610 x 910 mm

Speciallu designed cart for standing unique materials up right.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 63 inch

Width: 36 inch

Load capacity: 1001 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Bins, Boxes, Misc parts, Totes

More info

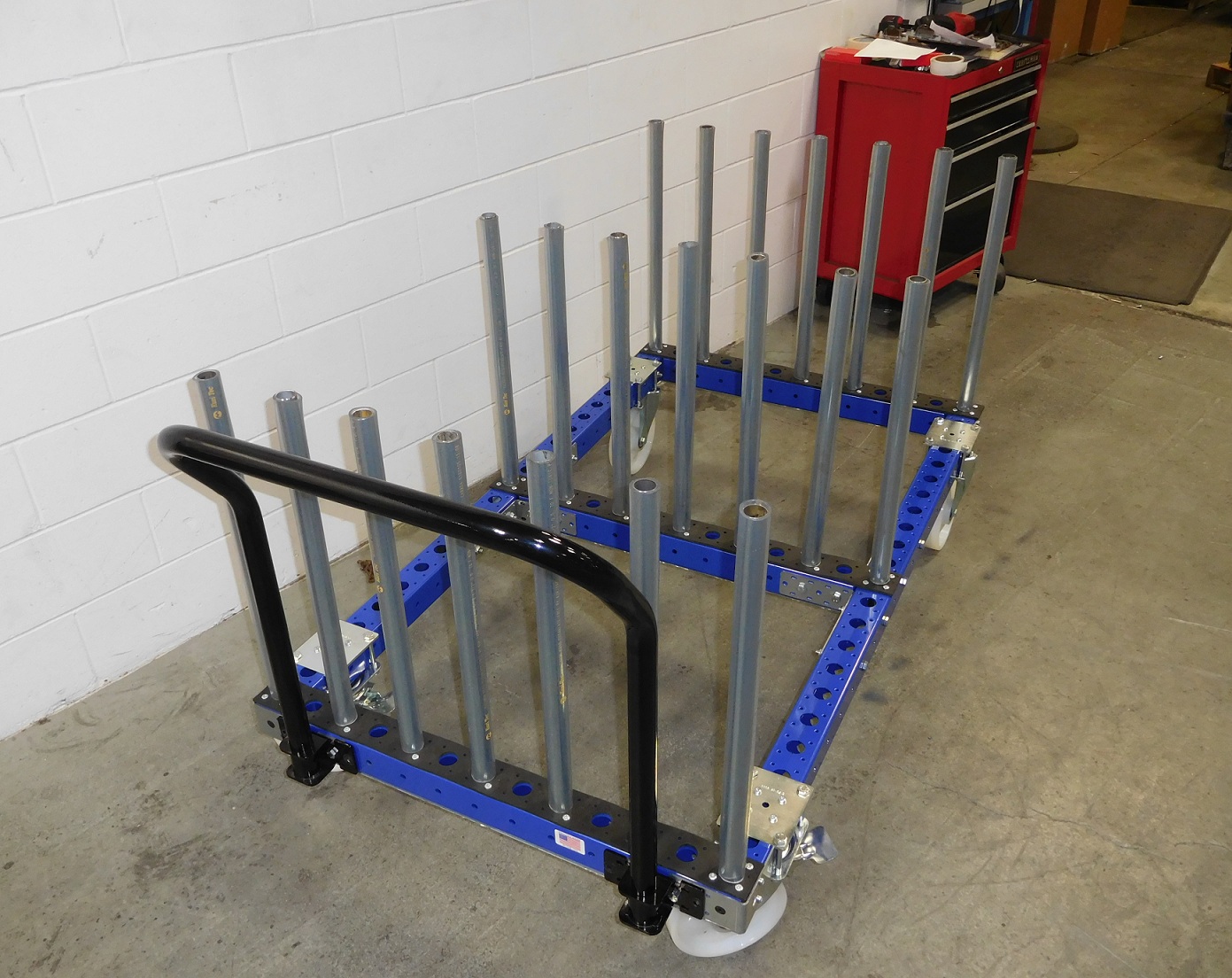

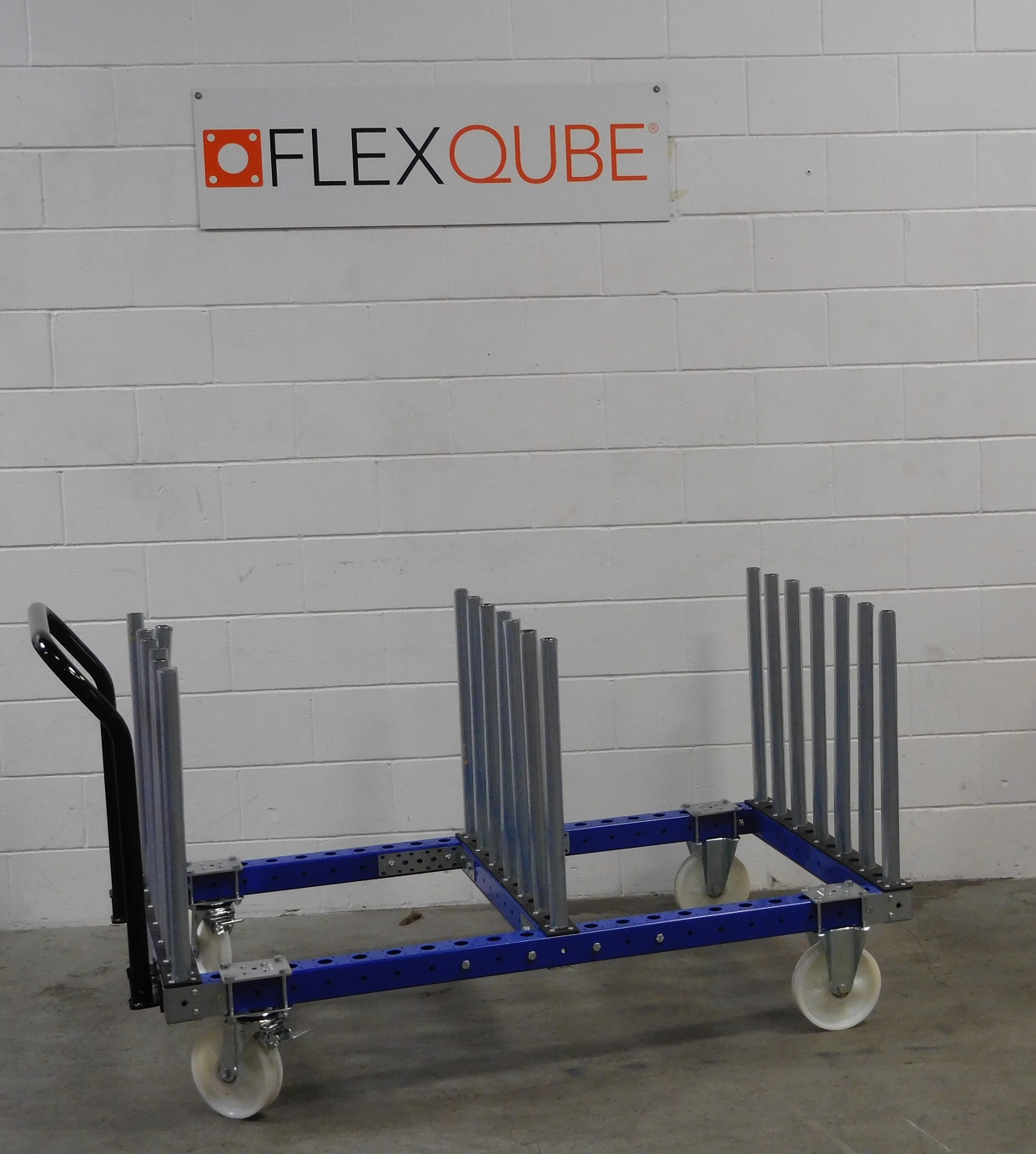

This cart is equipped with tubes in three rows so that long and thin components can be stood upright. This cart also comes equipped with an ergonomic handlebar for manual transportation.

Parts included
Outer Tube (No Plate) - 694 mm 21 Q-000-0010
FlexBeam™ - 1540 mm 4 Q-001-1295
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ 770 mm FE 4 Q-001-1406
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 2 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
L Bracket Joint 4 Q-005-0031
Rubber Tube - OD - 36 x 618 mm 21 Q-005-0456
Wheel Box Support - 908 mm 3 Q-005-1020
64 mm FlexBeam™ Collet 8 Q-005-1426
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 44 Q-006-1042
Hex Head - M10 x 90 mm 26 Q-006-1132
Hex Head - M10 x 20 mm 4 Q-006-1232
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384
Low Allen Head - M10 x 16 mm 6 Q-006-1409
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
