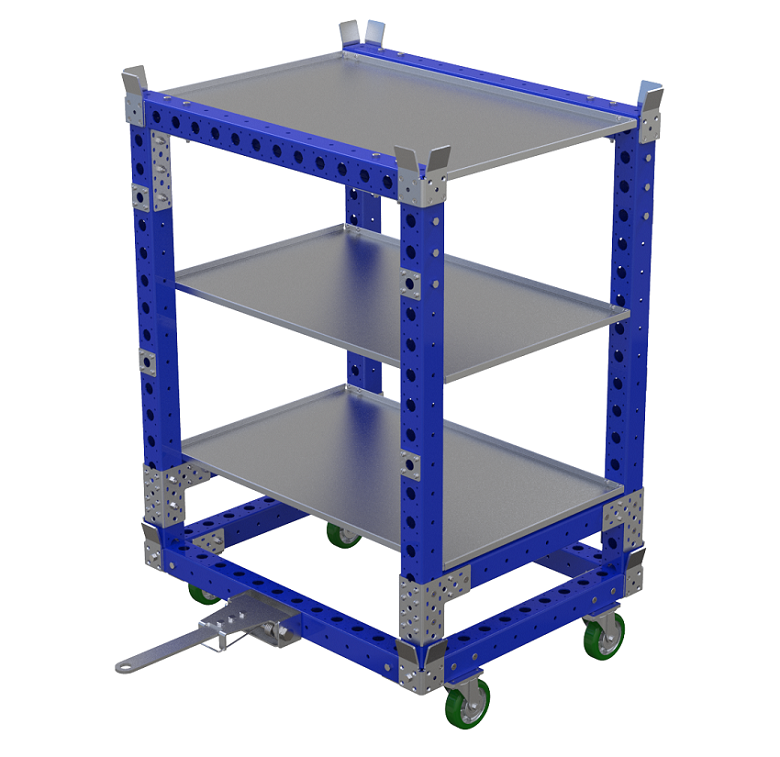

Base Cart For Stackable Rack - 980 x 770 mm
Q-100-0619

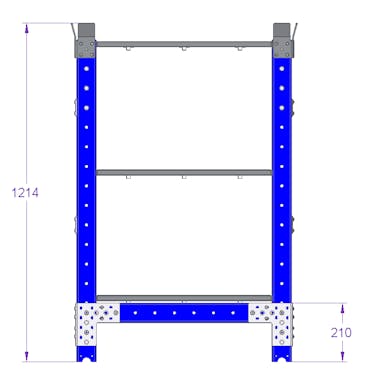

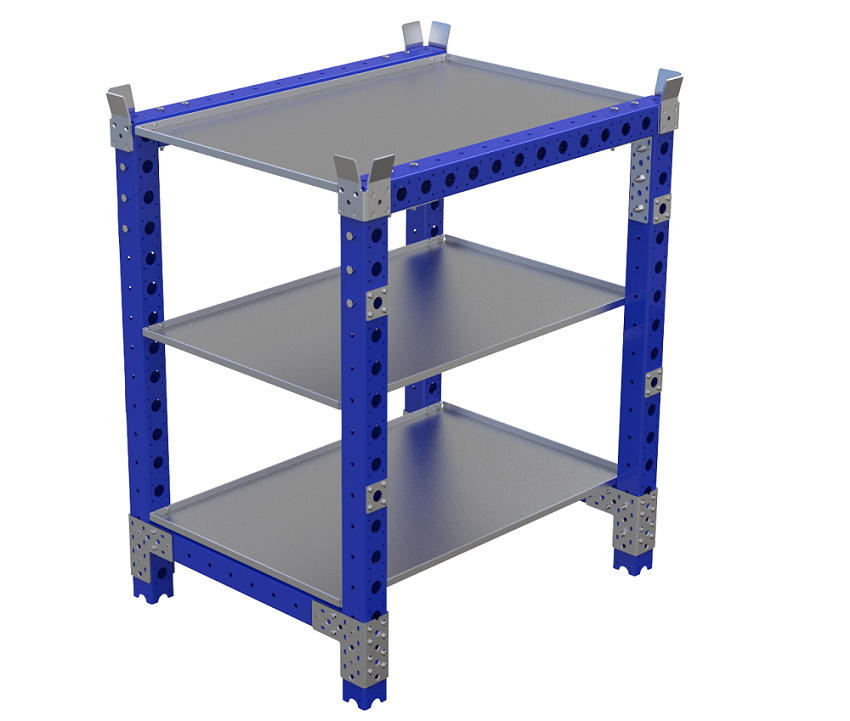

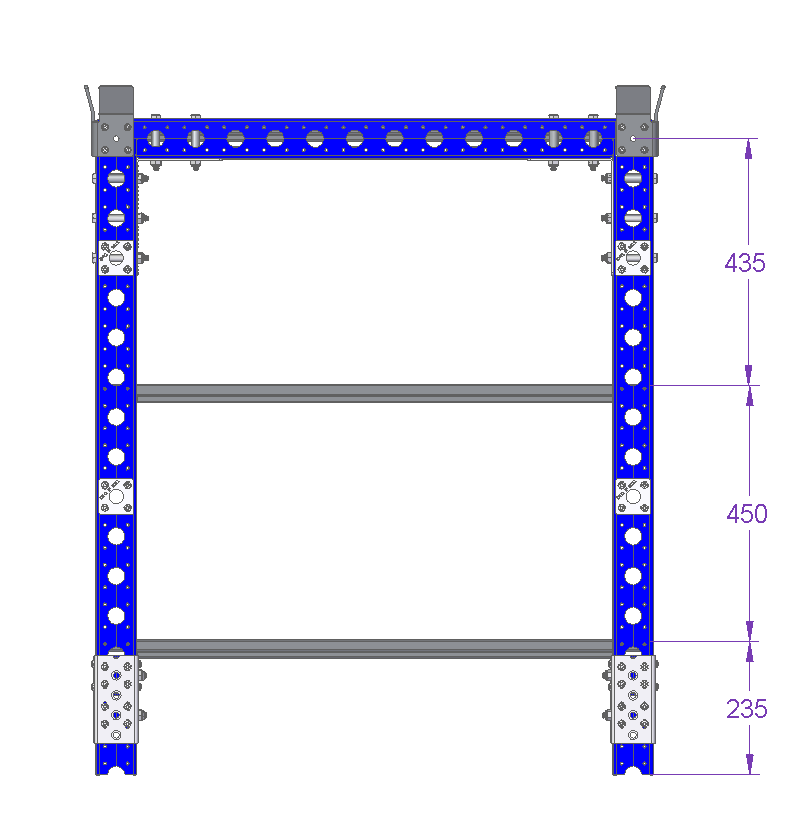

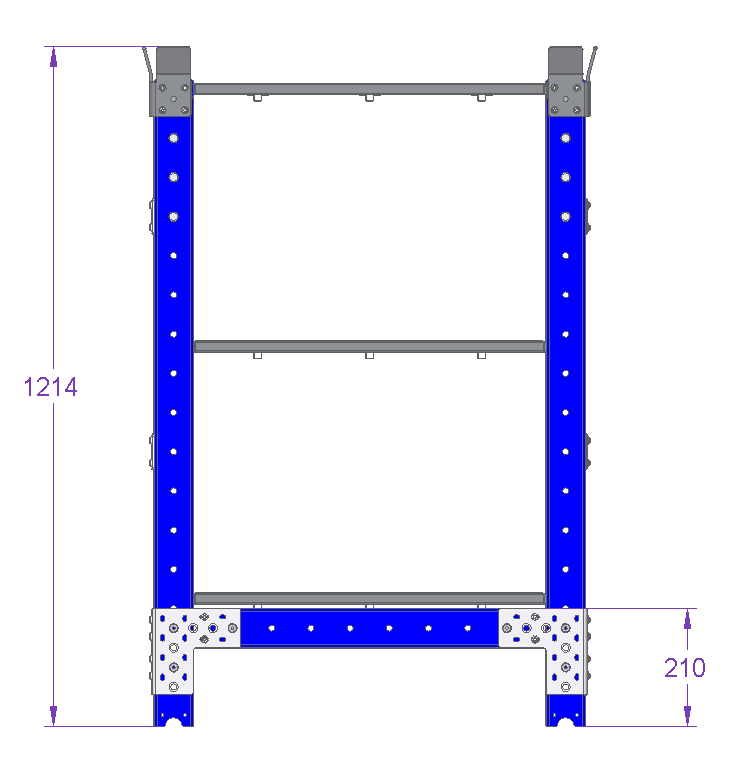

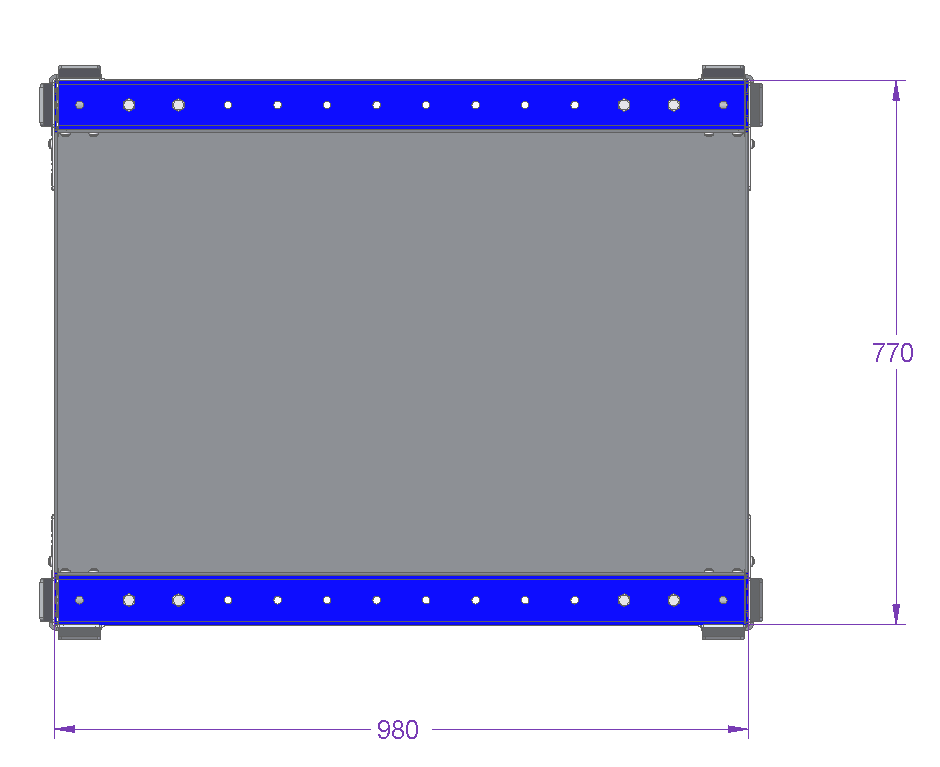

Stackable Shelf Rack - 980 x 770 mm

Custom designed stackable shelf rack is designed for holding/ storing totes, bins, and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 39 inch

Levels: 3

Load capacity: 661 lbs

Load Capacity per Level: 220 lbs

Transportation method: Manual

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This stackable shelf rack is designed for holding/ storing totes, bins, and boxes. This rack can be added to a tugger frame so it can be easily turned into a tugger cart. The base cart for this cart is Q-100-0617. The shelves can be easily adjusted higher or lower depending on your materials. It also had a handlebar floor brake and

Parts included
FlexBeam™ 1120 mm 8 Q-001-1301
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 980 mm FE 2 Q-001-1403
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 8 Q-002-1162
L Bracket Joint 4 Q-005-0031
Corner pallet guide w. bend - 5 mm 4 Q-005-0426
64 mm FlexBeam™ Collet 16 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Locking Nut M10 32 Q-006-1042
Hex Head - M10 x 90 mm 20 Q-006-1132
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 104 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 24 Q-006-1385
Flat shelf with welded corners - 840 x 630 mm 3 Q-016-0343
