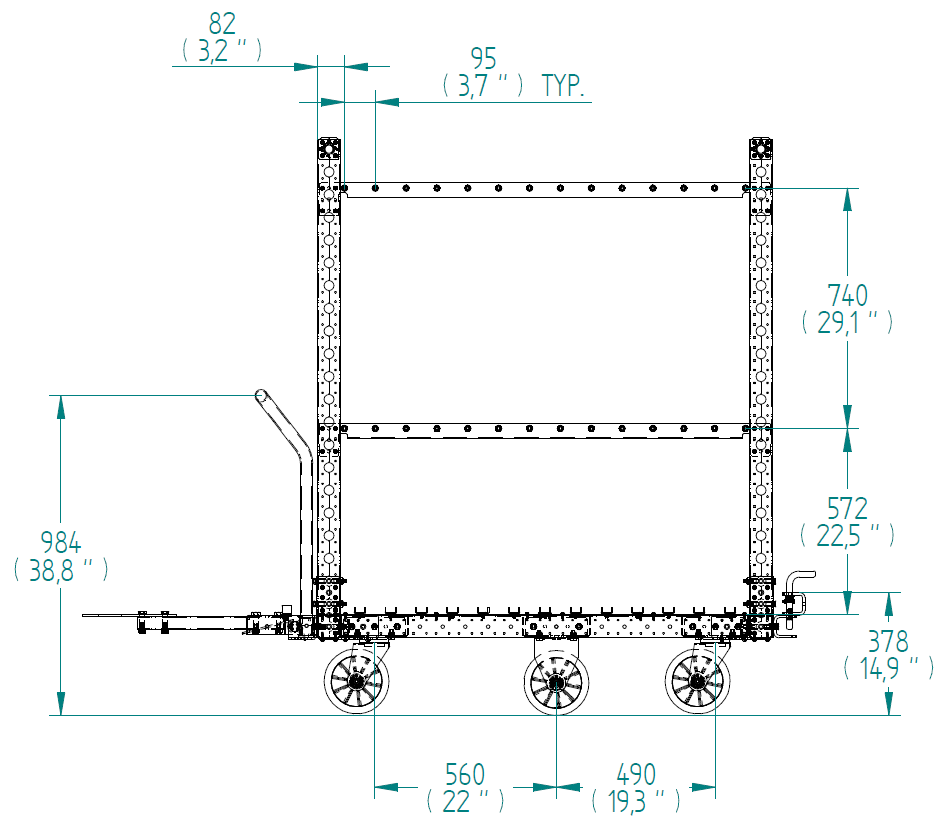

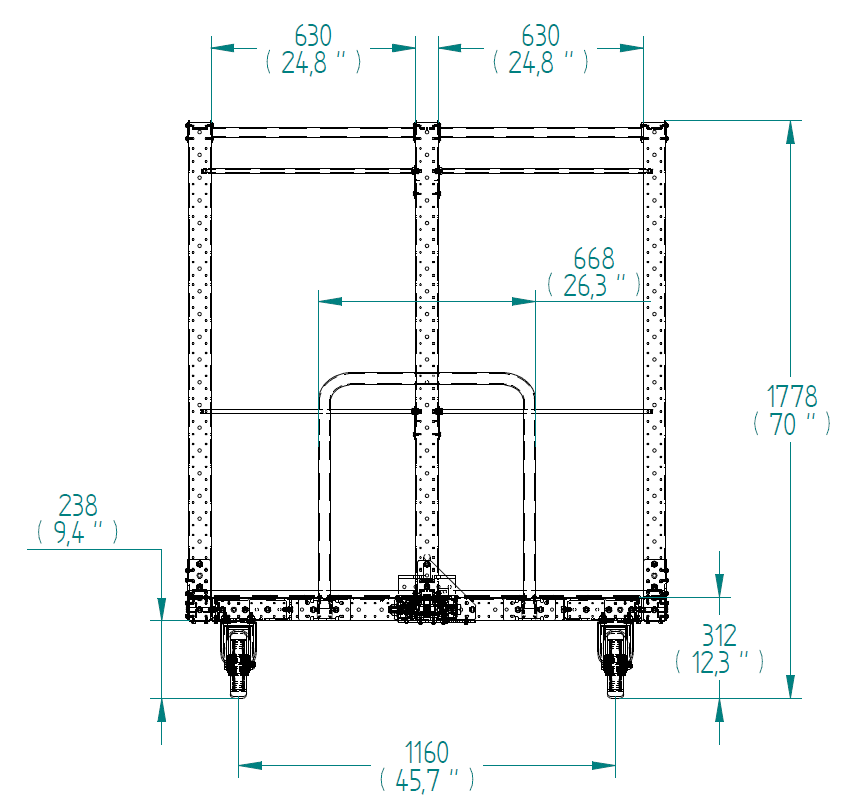

Side Panel Cart - 1400 x 1470 mm
Side Panel Cart - 1400 x 1470 mm
Side Panel Cart - 1400 x 1470 mm
Side Panel Cart - 1400 x 1470 mm
Q-100-1591

Side Panel Cart - 1400 x 1470 mm

This cart was designed to house and transport panels it uses dividers to segment the panels.

Technical specifications

Category: Specialized Carts

Transportation method: Manual

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 55 inch

Length: 58 inch

Load capacity: 1499 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

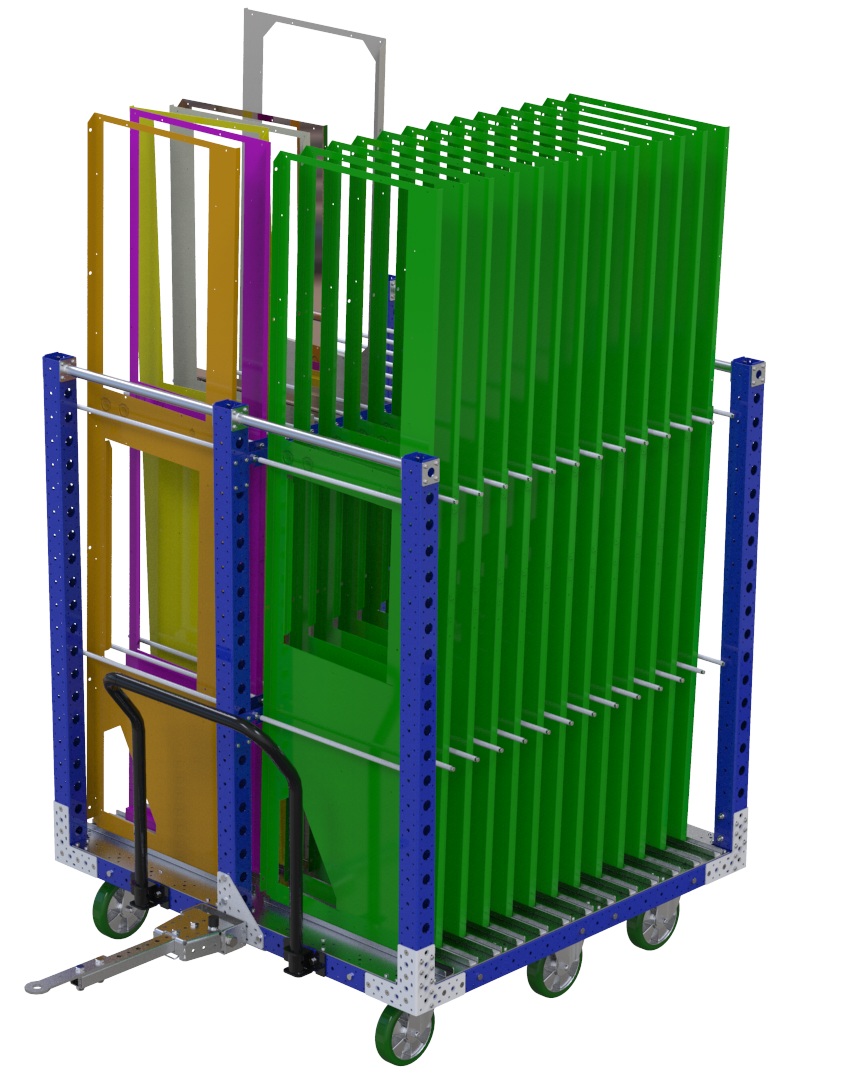

This cart is designed to transport large panels using dividers and C profile guides in the bottom steel deck. The dividers are covered with plastic protection for the integrity of the panels and materials. The handlebar and tow bar allows both manual and motor vehicle operation for the cart and is equipped with six polyurethane casters.

Parts included
FlexTube™ 630 mm 4 Q-000-1312
FlexPlate™ 12 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
M10 Threaded rod - 675 mm 56 Q-005-0084
Triangle Joint 4 Q-005-0483
Wheel Attachment Box 6 Q-005-1079
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 38 Q-005-1426
C Profile - 700 mm 26 Q-005-2308
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 36 Q-006-1041
Locking Nut M10 148 Q-006-1042
Washer M10 2 Q-006-1043
Countersunk - M6 x 20 mm 52 Q-006-1049
Locking Nut M6 52 Q-006-1050
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 22 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Nut M10 56 Q-006-1195
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 234 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Plastic Threaded Round Caps - M10 x 1.5 Thread 56 Q-009-0003
Plastic List - 700 mm 26 Q-009-0004
Plastic Protection M10 - 640 mm 56 Q-009-0009
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Bottom Plate Flat - 735 x 1400 mm 2 Q-016-0885
Shelf Attachment Plate - 1400 mm 4 Q-016-0886
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
US Modular tow bar VKR - Lip - 450 mm 1 Q-017-0092
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ 1330 mm STS 4 Q-020-1330
FlexBeam FE - 1330 mm 2 Q-021-1330
