Shelf Cart W Dividers - 1260 x 770 mm
Shelf Cart W Dividers - 1260 x 770 mm
Shelf Cart W Dividers - 1260 x 770 mm
Shelf Cart W Dividers - 1260 x 770 mm
Q-100-0683

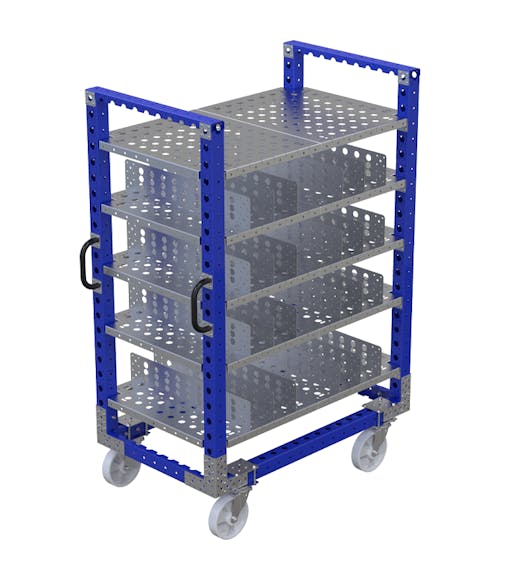

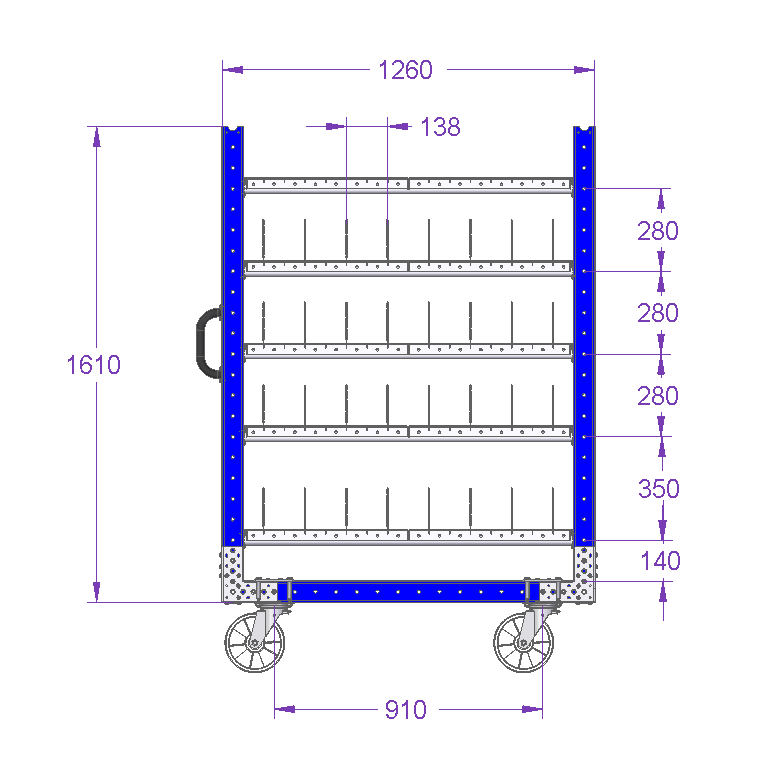

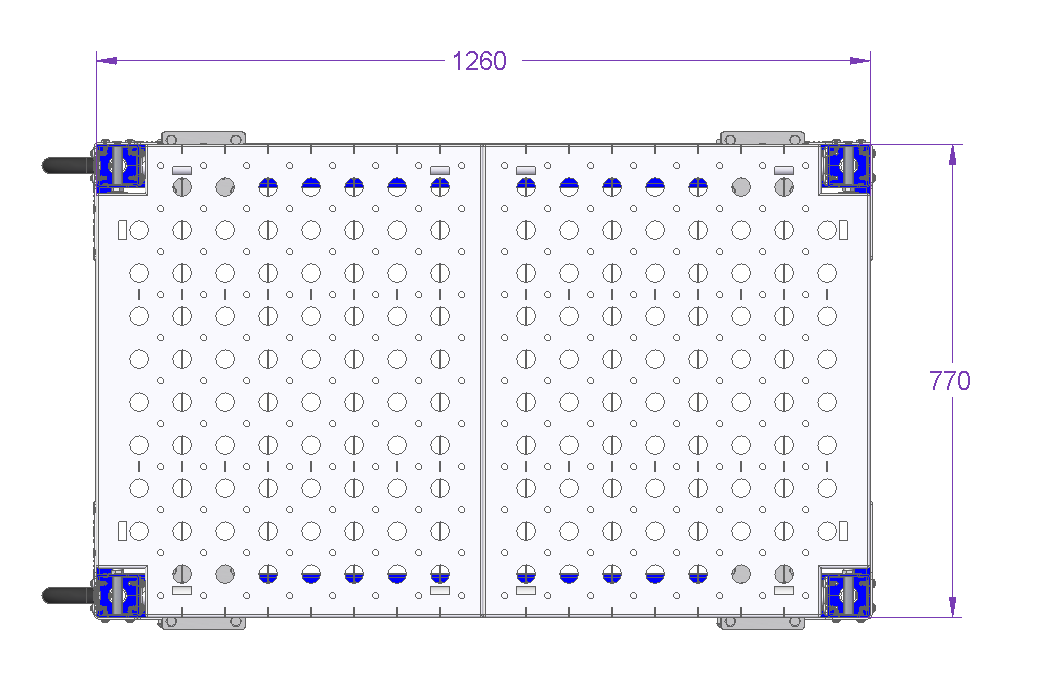

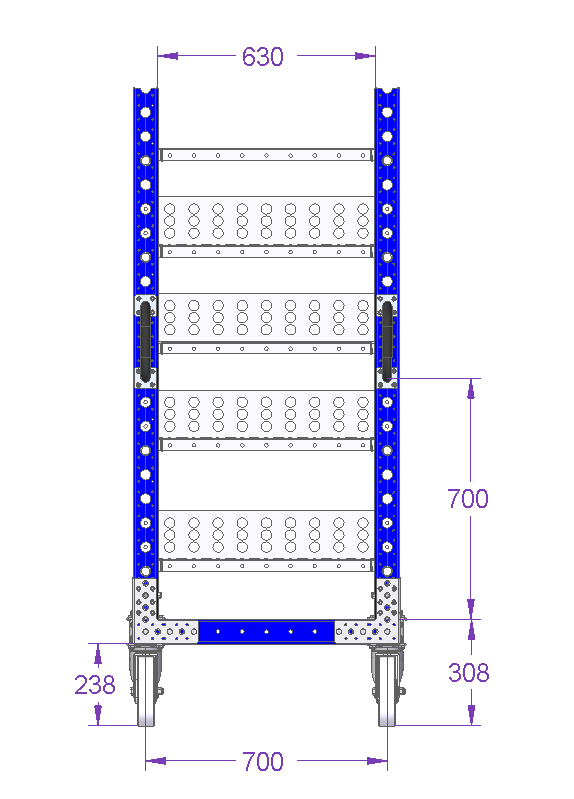

Shelf Cart W Dividers - 1260 x 770 mm

Shelf cart with added dividers to keep materials secure in position.

Technical specifications

Category: Flat Deck, Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 50 inch

Levels: 5

Load capacity: 1213 lbs

Load Capacity per Level: 249 lbs, 198 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Misc parts

More info

This shelf cart has five shelves, the lower four shelves are all equipped with dividers. The top shelf isn’t equipped with any dividers and is a standard flat shelf. This cart is also equipped with two handles for better ergonomic pushing. All shelves on this cart have holes so that the weight of the overall cart is reduced.

Parts included
FlexTube™ 1120 mm 10 Q-000-1258
FlexBeam™ - 1540 mm 8 Q-001-1295
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 770 mm FE 4 Q-001-1406
FlexPlate™ 12 Q-002-1001
Flexplate™ M10 4 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm without Brake 4 Q-004-1352
770 x 630 mm FlexShelf™ 10 Q-005-1345
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 8 Q-005-1426
Locking Nut M10 40 Q-006-1042
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
M8 Washer 4 Q-006-1183
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 200 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
