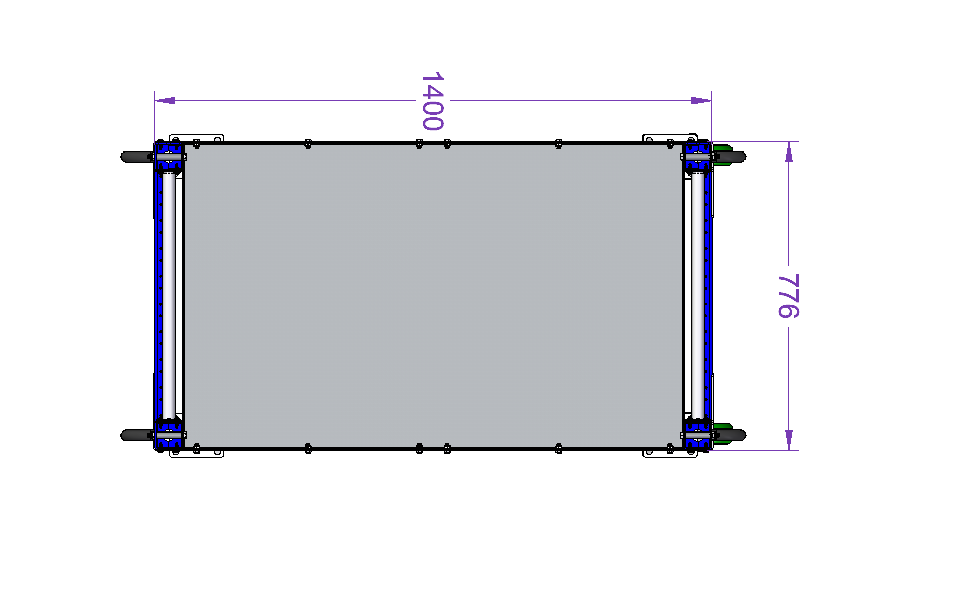

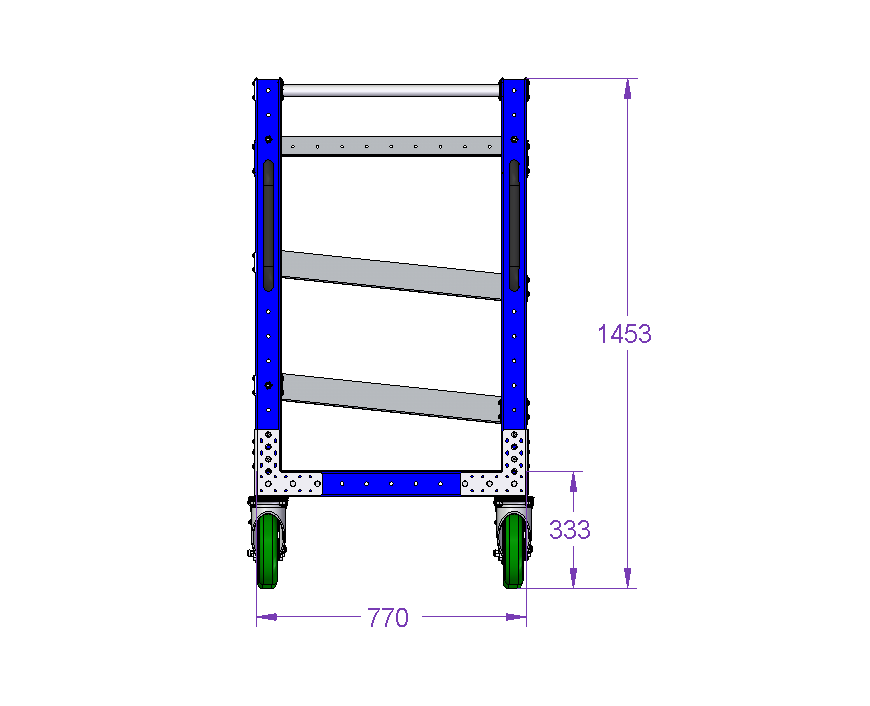

Shelf Cart for Totes 55 x 30.5 inch
Shelf Cart for Totes 55 x 30.5 inch
Shelf Cart for Totes 55 x 30.5 inch
Q-100-0198

Shelf Cart for Totes 55 x 30.5 inch

Custom designed shelf cart for presenting bins, boxes and totes to the operators.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 55 inch

Levels: 3

Load capacity: 600 lbs

Load Capacity per Level: 198 lbs

Width: 30 inch

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

Shelf rack with a flat shelf and angled shelves that allows for better access into bins and totes. The number and height of shelves can be modified. The cart is equipped with directional locking casters. Two of the casters can be locked as fixed casters using a foot pedal. It helps when transporting the cart long distances. The casters can then be unlocked to put the cart into position.

Parts included
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1120 mm FE 8 Q-001-1401
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 16 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Directional Locking Plate 2 Q-004-1130
Polyurethane 200 mm Brake [for DL] 2 Q-004-1134
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 22 Q-005-1426
Locking Nut M10 52 Q-006-1042
Hex Head - M8 x 16 mm 20 Q-006-1120
Hex Head - M10 x 90 mm 8 Q-006-1132
Locking Nut M8 12 Q-006-1181
M8 Washer 8 Q-006-1183
Extra low head [1,5 mm] M10x40 mm 8 Q-006-1361
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 136 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410
Flat Shelf - 1259 x 770 mm 1 Q-016-0091
FlowShelf - 1400 x 772 mm 2 Q-016-0019
Angled Plate - 1388 mm 2 Q-016-0035
FlexTube™ 630 mm 2 Q-000-1312
M8 Handlebar US - 350 mm 4 Q-015-1089
