Q-100-0347

Shelf cart for E-frame

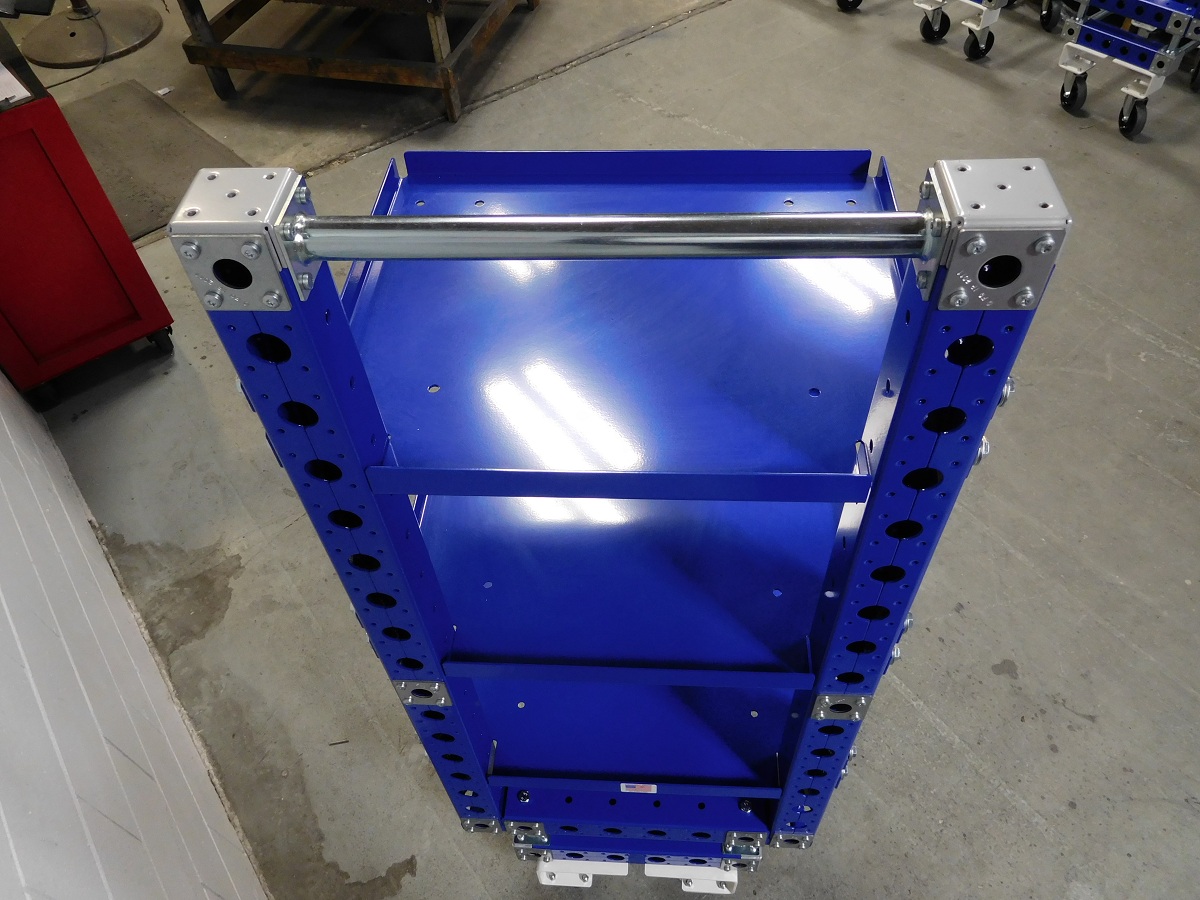

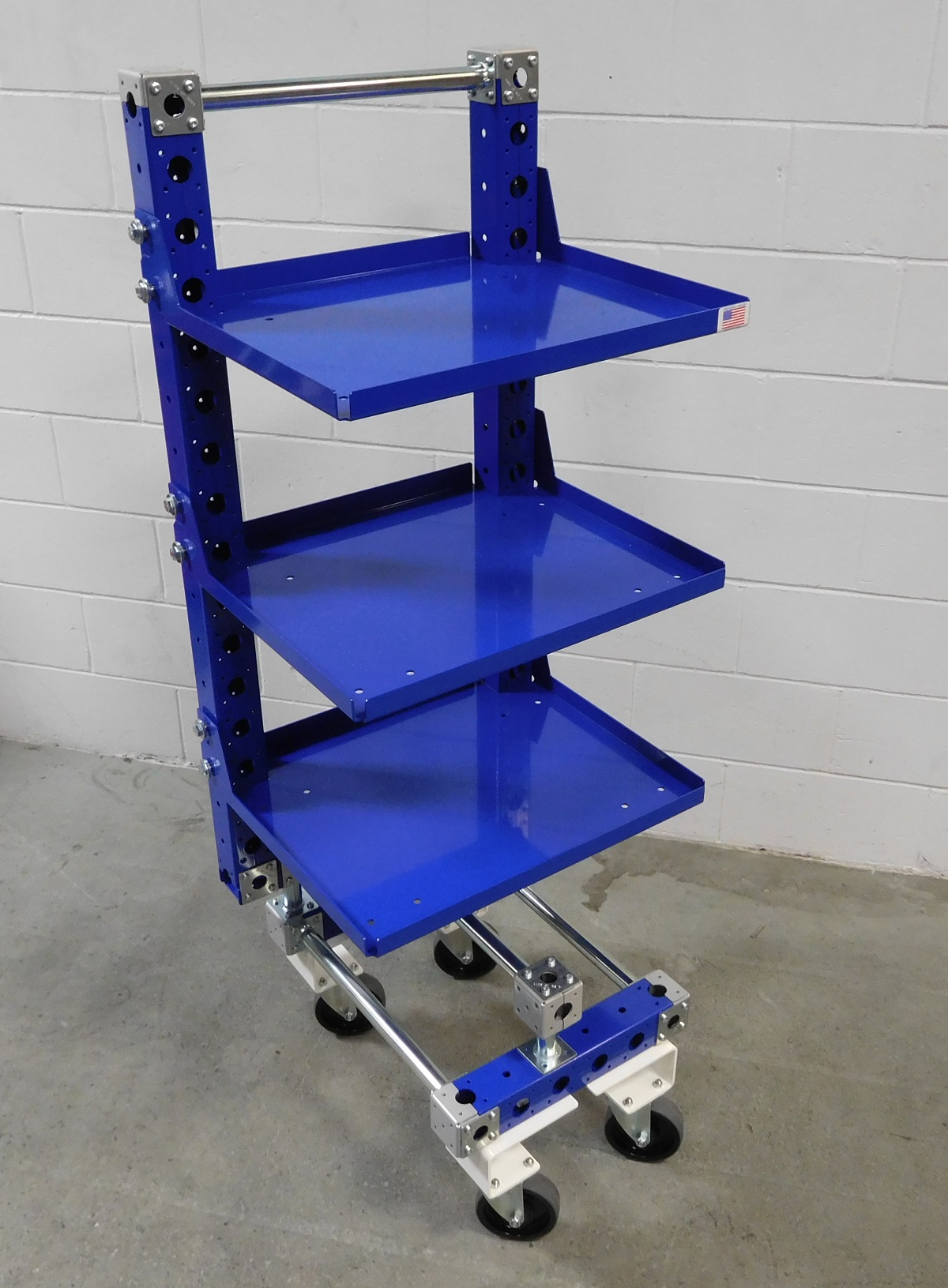

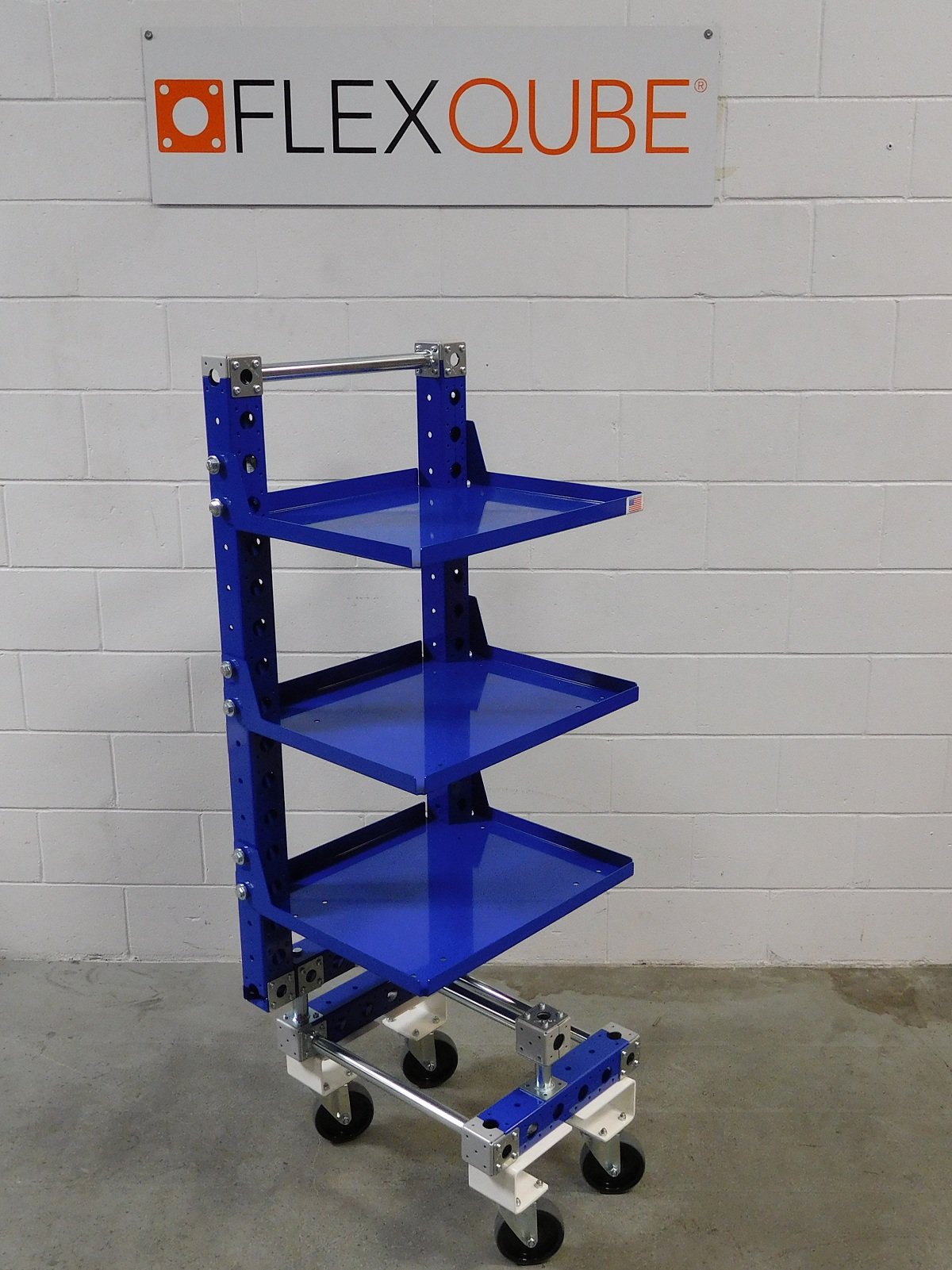

Three level removable shelf cart designed to be transported by an E-Frame, you can fit two carts per frame. Equipped with four nylon swivel casters.

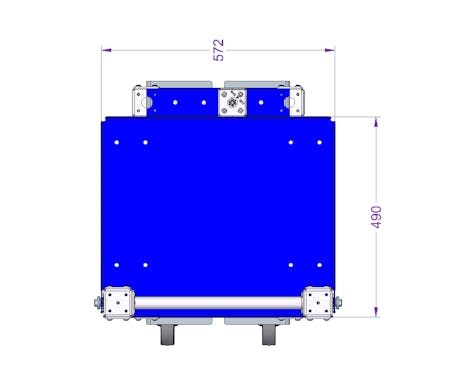

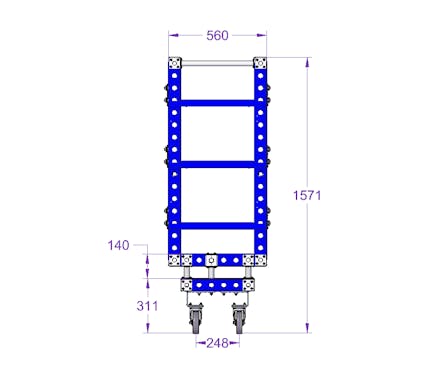

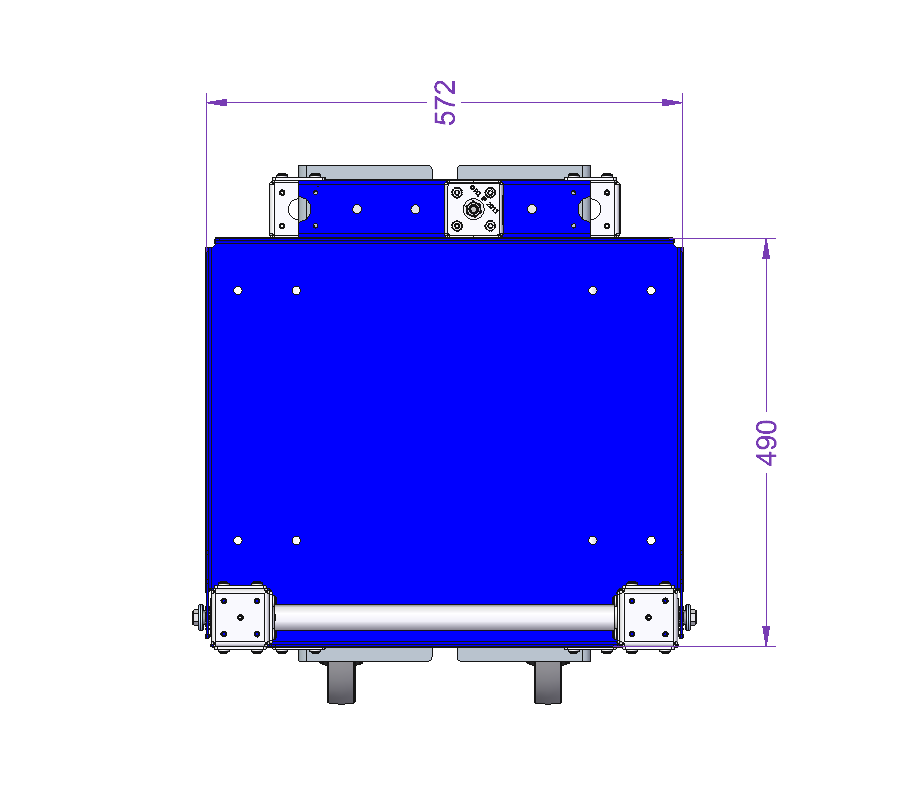

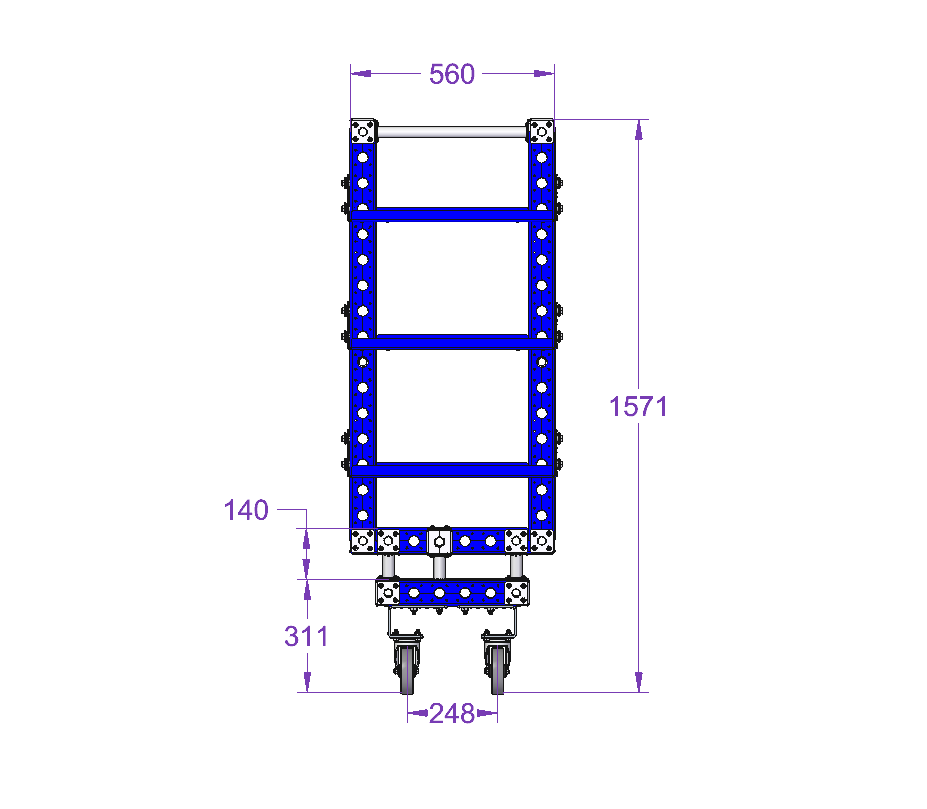

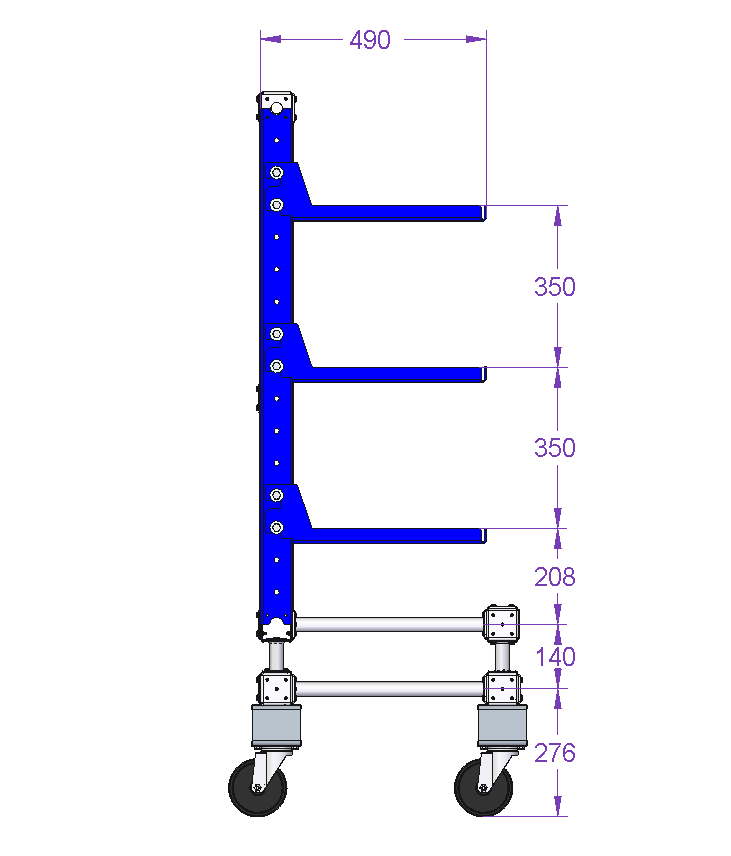

Technical specifications

Transportation method: LiftRunner Frames, Manual

Category: Flat Shelf

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 22 inch

Width: 19 inch

Load capacity: 300 lbs

Levels: 3

Load Capacity per Level: 99 lbs

Caster size: 5 inch

Caster Type: Nylon

More info

Three level removable shelf cart designed to be transported by an E-Frame which can take two carts per frame. The shelves hangs on two bolts per side and is easy to remove and re-attach. The cart is equipped with four nylon swivel casters making it easy maneuver in tight areas.

Parts included
FlexTube™ 70 mm - Locking Nut 3 Q-000-1101
FlexTube™ 420 mm 4 Q-000-1270
FlexQube 8 Q-001-1078
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 350 mm 4 Q-001-1312
FlexBeam™ 560 mm FE 1 Q-001-1409
FlexBeam™ 420 mm FE 1 Q-001-1411
FlexPlate™ 19 Q-002-1001
Swivel Caster - 125 mm 4 Q-004-1363
Wheel attachment - 87 mm distance 4 Q-005-1917
Hex Head Fully Threaded - M8 x 20 mm 16 Q-006-1019
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 20 Q-006-1042
Hex Head - M10 x 30 mm 12 Q-006-1161
Locking Nut M8 16 Q-006-1181
Self Tapping Screw M6 Torx H60 x 16 120 Q-006-1384
Collet - 10 mm 12 Q-015-1047
Washer 10,5 x 30 x 2,5 24 Q-006-1030
Extra low head [1,5 mm] M10x40 mm 3 Q-006-1361
