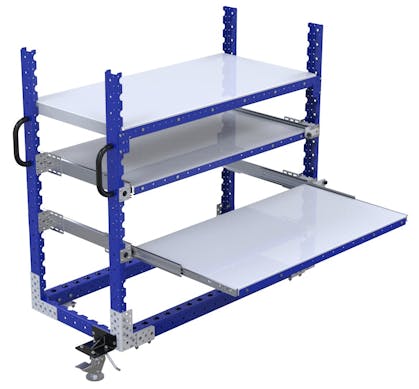

Shelf Cart - 630 x 1330 mm

Fixed and extendable shelf cart with handles and floor brake.

Technical specifications

Category: Extendable Shelf, Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 25 inch

Length: 52 inch

Levels: 3

Load capacity: 364 lbs

Load Capacity per Level: 121 lbs

Transportation method: Manual

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This is a flat shelf cart with two types of shelves: The top one is fixed and the bottom ones are extendable. The extendable shelves is equipped with locking to keep the drawers locked during transportation. The shelves can be used to transport boxes, parts, totes, etc; and can be used with any of our type of casters.

Parts included
FlexQube 8 Q-001-1078
FlexPlate™ 10 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Modular attachment plate for telescopic lists 8 Q-005-0149
7657-0024 Telescopic slide 610 mm - Closed 4 Q-005-0269
Spherical Knob 2 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 8 Q-005-1426
Locking Handle Plate 2 Q-005-1880
Caster to Beam Attch. - 3 x 3 Inch 4 Q-005-2405
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Locking Nut M10 50 Q-006-1042
Locking Nut M6 24 Q-006-1050
Round Head - M6 x 12 mm 16 Q-006-1051
Countersunk 16 Q-006-1082
Hex Head - M8 x 16 mm 40 Q-006-1120
Locking Nut M8 36 Q-006-1181
M8 Washer 4 Q-006-1183
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 104 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 26 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Angled Plate - 1318 mm 2 Q-016-0185
Flat Shelf - 630 x 1260 mm 1 Q-016-0718
Telescopic Shelf - 615 x 1150 mm 2 Q-016-0939
Shelf Attach. Plate - 1130 mm 4 Q-016-0940
FlexBeam™ FE - 630 mm 2 Q-021-0630
