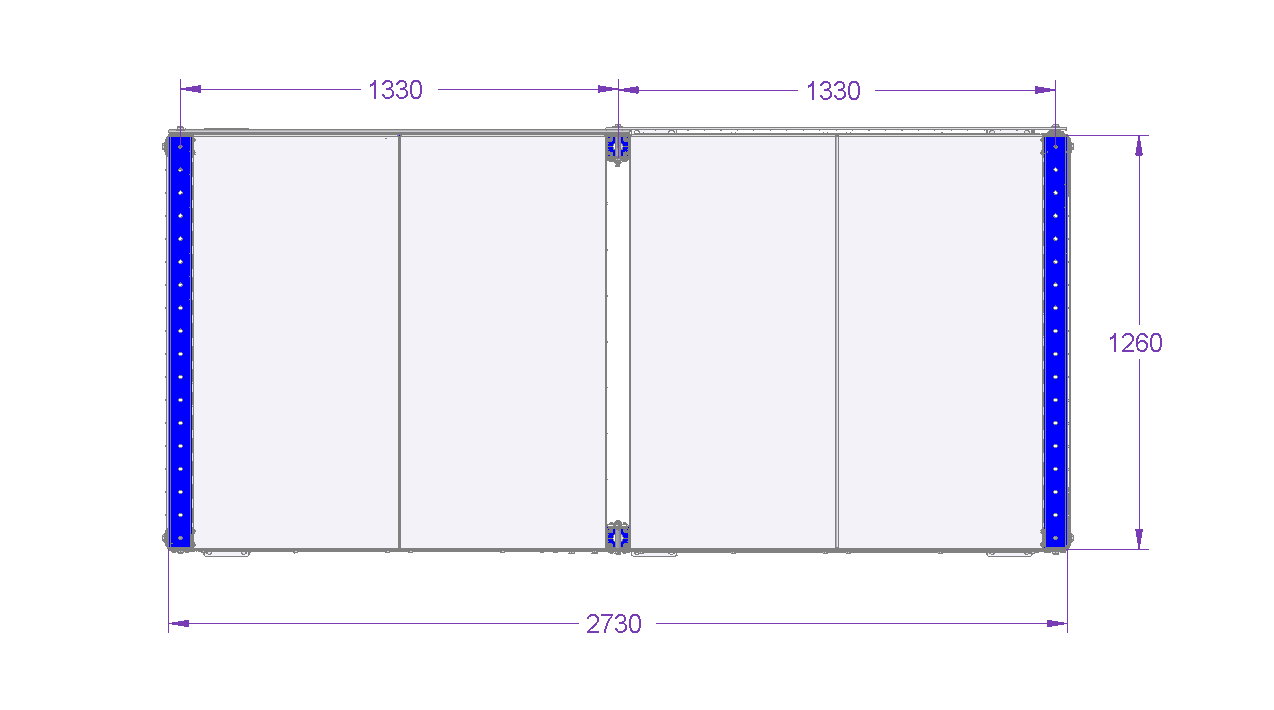

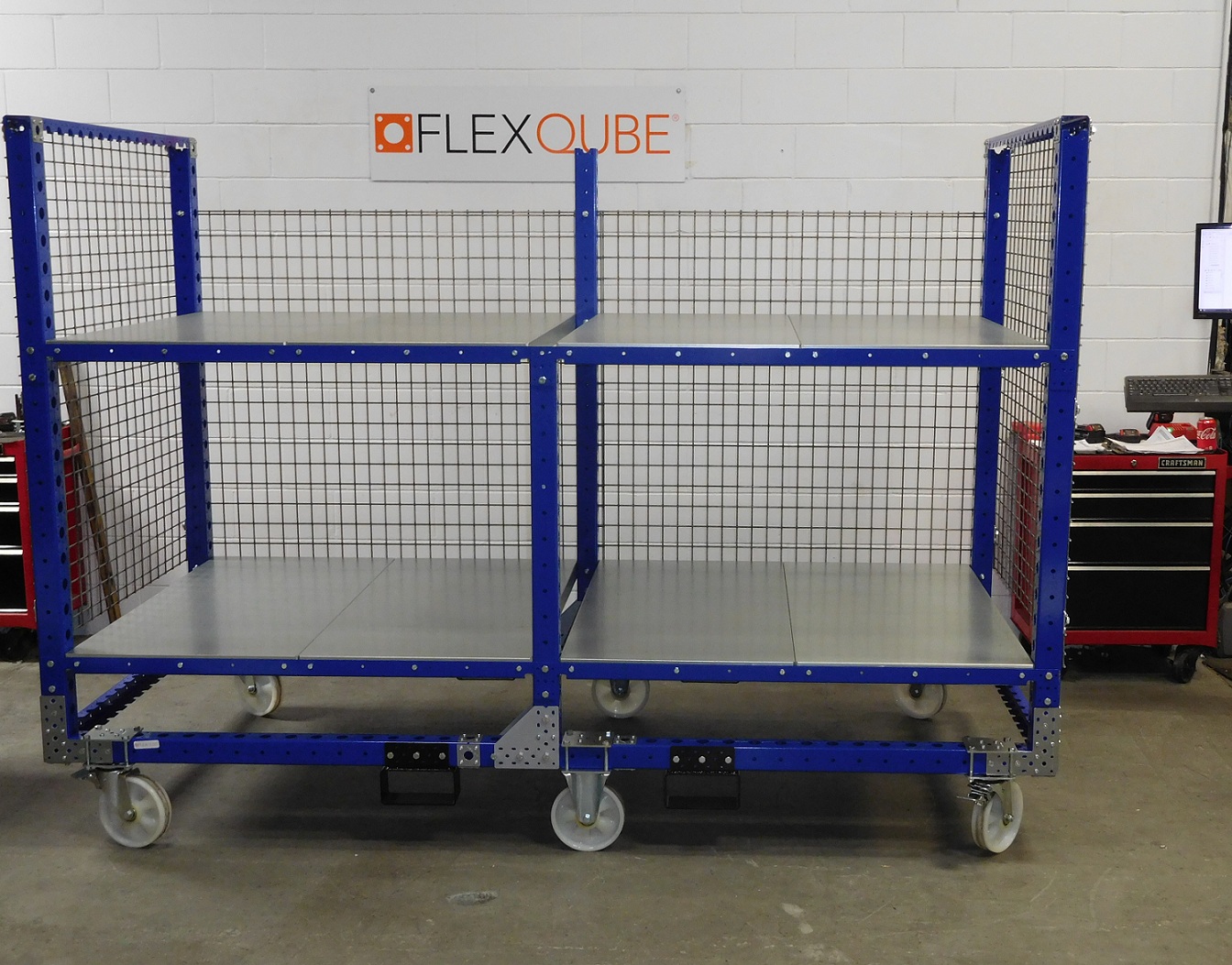

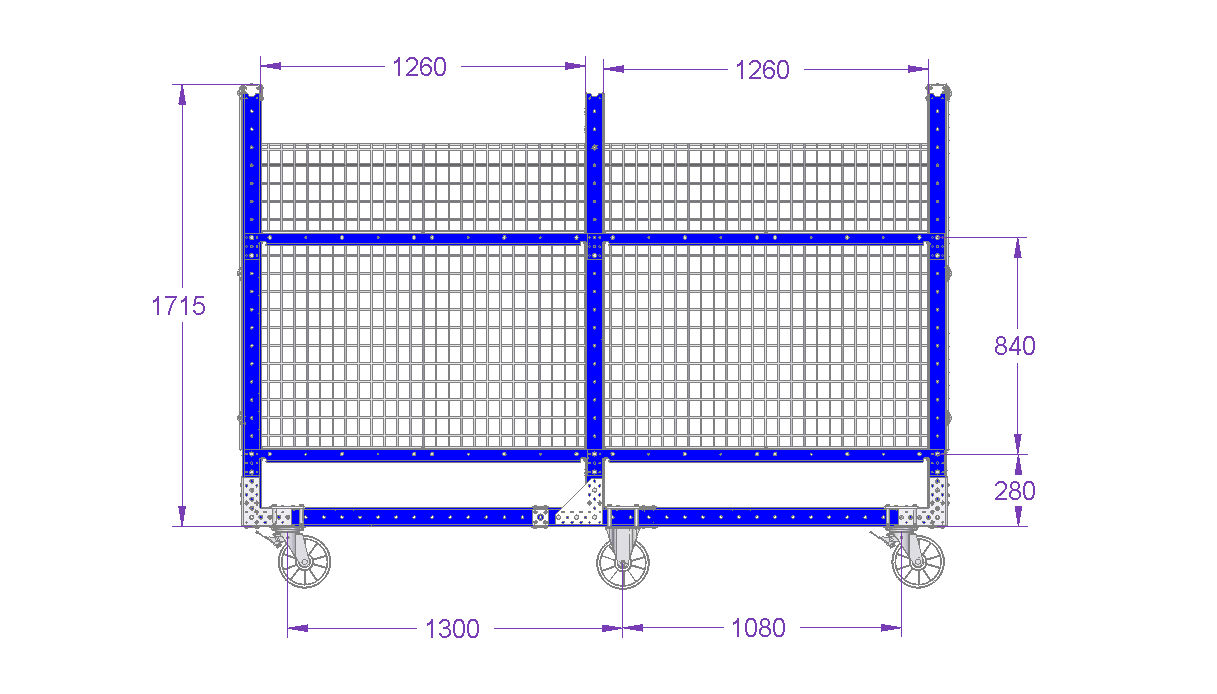

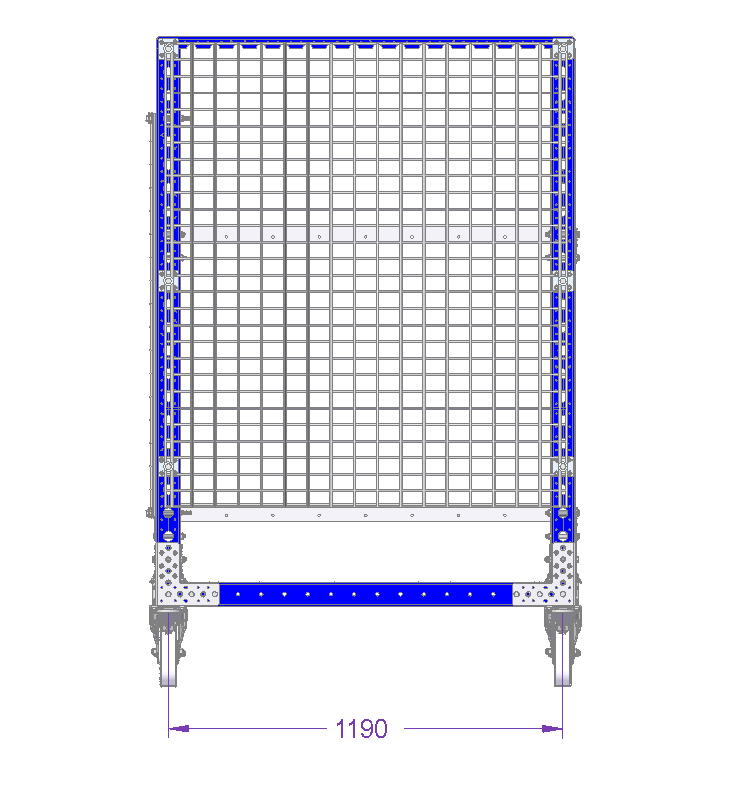

Shelf Cart - 2730 x 1260 mm

Large shelf cart with attached wire mesh.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 107 inch

Width: 50 inch

Levels: 2

Load capacity: 970 lbs

Load Capacity per Level: 485 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Bins, Boxes, Totes

More info

This shelf cart is used to transport bins, totes, and boxes. However, the shelves are very robust and can manage larger containers and other materials. This cart also comes equipped with wire mesh around the outside to keep the materials secure.

Parts included
FlexBeam™ - 1610 mm 10 Q-001-1294
FlexBeam™ - 1540 mm 4 Q-001-1295
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1050 mm 2 Q-001-1302
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 20 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Polyamide Caster 200 mm with Brake 4 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
Wire Mesh - 1210 x 1400 mm 4 Q-005-0247
Triangle Joint 4 Q-005-0483
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 17 Q-005-1426
Washer 10,5 x 30 x 2,5 33 Q-006-1030
Fully Threaded - M10 x 120 mm 6 Q-006-1037
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 93 Q-006-1042
Hex Head - M8 x 16 mm 44 Q-006-1120
Hex Head - M10 x 90 mm 35 Q-006-1132
Locking Nut M8 68 Q-006-1181
M8 Washer 32 Q-006-1183
Hex Head - M10 x 100 mm 8 Q-006-1302
Extra Low Head - M10 x 90 mm 21 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 228 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 36 Q-006-1410
Angled plate - 1388 mm 8 Q-016-0140
Flat Shelf (multiple holes) - 630 x 1260 mm 8 Q-016-0322
