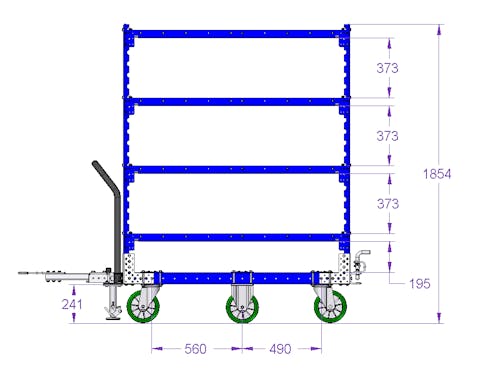

Shelf Cart - 1400 x 840 mm

Four level flat shelf tugger cart equipped with a tow bar, floor brake and six high quality polyurethane casters.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 55 inch

Levels: 4

Load capacity: 1323 lbs

Load Capacity per Level: 331 lbs

Width: 33 inch

Caster size: 8 inch

Caster Type: Polyurethane

Type of tow bar: Tongue and Hitch

More info

Four level flat shelf tugger cart commonly used for transportation of totes/bins/boxes or loose components. The cart is also equipped with a tow bar, floor brake and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 1540 mm FE 4 Q-001-1504
FlexPlate™ 8 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake - 200 mm 1 Q-004-1613
Collet - 35 mm 16 Q-005-0028
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 20 Q-005-1426
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 83 Q-006-1042
Washer M10 10 Q-006-1043
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 64 Q-006-1120
Hex Head - M10 x 90 mm 24 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 64 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 16 Q-006-1343
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 108 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Angled plate - 1388 mm 8 Q-016-0140
Flat Shelf - 1329 x 840 mm 4 Q-016-0141
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
