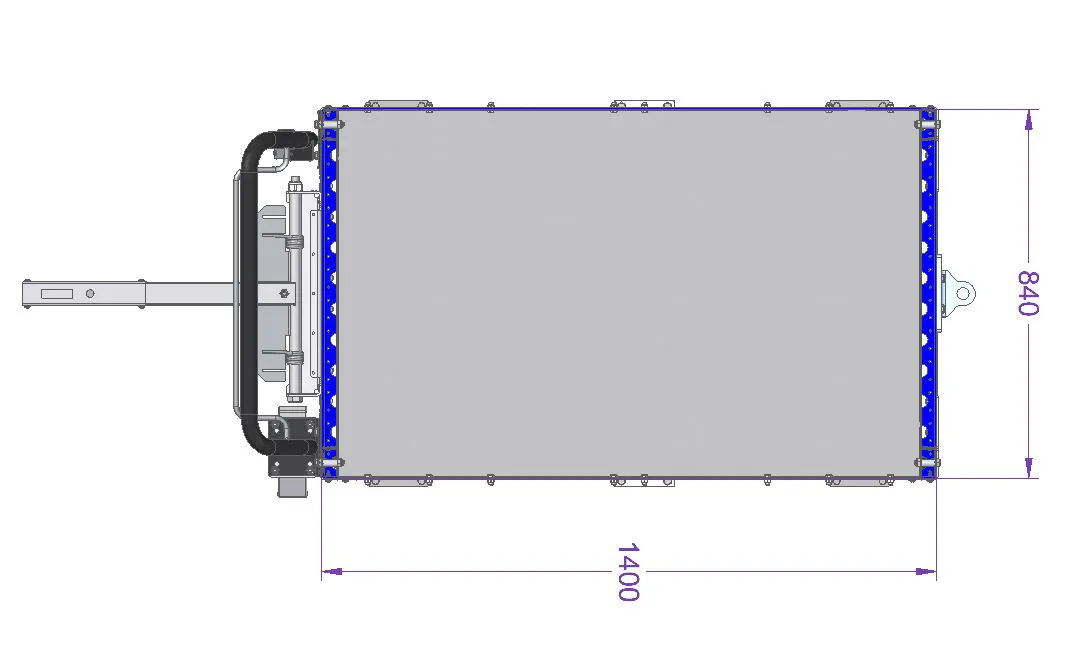

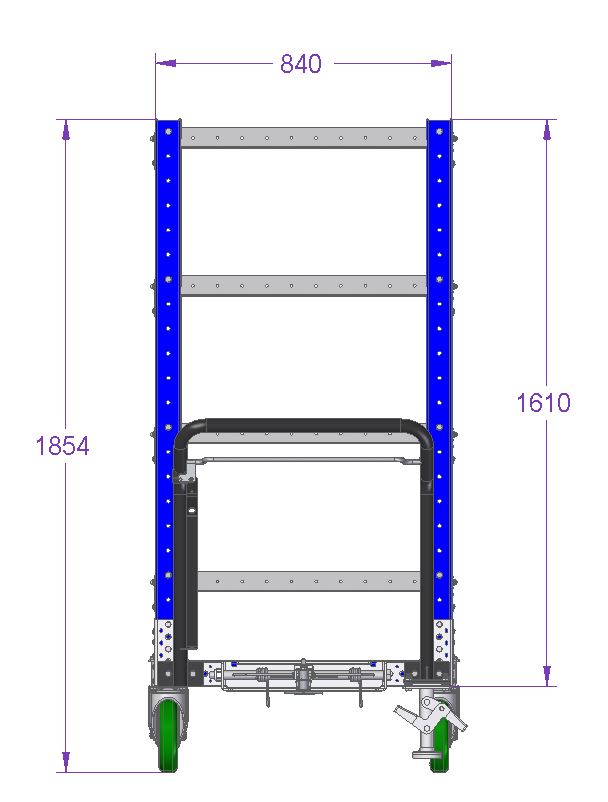

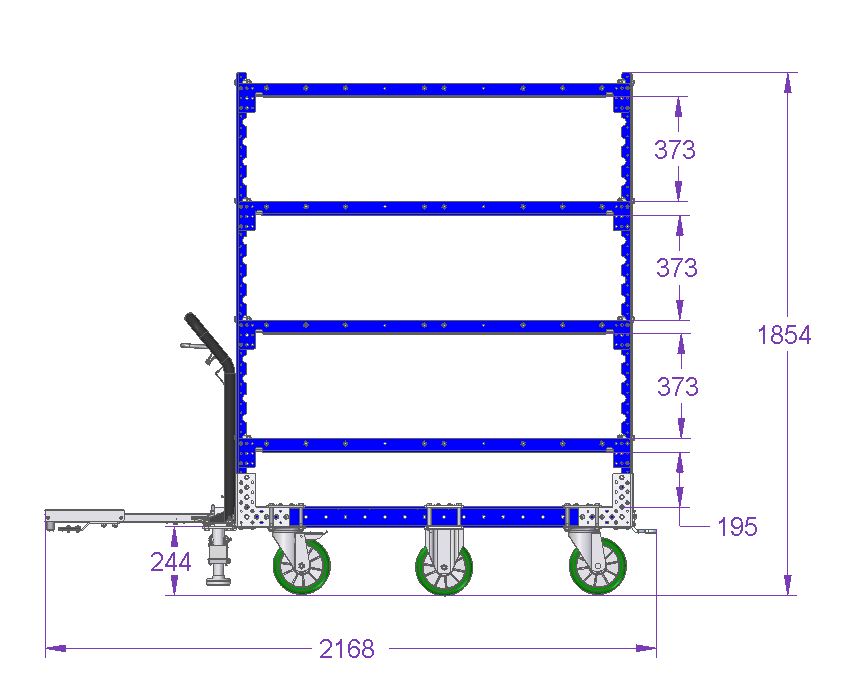

Back Back Q-100-0535 Shelf Cart - 1400 x 840 mm Standard flat shelf cart with added tongue & hitch tow bar developed by FlexQube. Get a quote 100% free. No commitment. Get a quote Close Shelf Cart – 1400 x 840 mm Email Phone Location Comments (optional) Attach a file (optional) Upload Maximum file size is 10mb. We will get back to you within 24 hours. (Unless it’s during holidays.) Create your own cart Boost Efficiency Heavy-duty & modular Technical specifications Transportation method LiftRunner Frames, Manual, Tugger Type of tow bar Tongue and Hitch Industry Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy Length 55 inch Width 33 inch Load capacity 1323 lbs Caster size 8 inch Caster Type Polyurethane Parts included FlexBeam™ - 1330 mm 4 Q-001-1298 FlexBeam™ 840 mm FE 2 Q-001-1405 FlexBeam™ 700 mm FE 2 Q-001-1407 FlexBeam™ 1540 mm FE 4 Q-001-1504 FlexPlate™ 8 Q-002-1001 Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065 Caster Polyurethane 200 mm with Brake 2 Q-004-1099 Caster Polyurethane - 200 mm 2 Q-004-1100 Caster Polyurethane 200 mm Fixed 2 Q-004-1101 Floor Brake LTL - 200 mm 1 Q-004-1359 Collet - 35 mm 16 Q-005-0028 Damper GN352 1 Q-005-1016 Spring Cover Plate 1 Q-005-1025 Wire Guidance Plate 1 Q-005-1026 Spring for Tow Bar 2 Q-005-1070 Beam to Beam Corner Plate 4 Q-005-1356 64 mm FlexBeam™ Collet 16 Q-005-1426 Hex Head - M20 x 500 mm 1 Q-006-1016 Hex Head - M4 x 8 mm 1 Q-006-1028 Locking Nut M10 82 Q-006-1042 Washer M10 20 Q-006-1043 Scissor Sprint 2,5 x 16 FZB 1 Q-006-1077 Hex Head - M10 x 95 mm 10 Q-006-1088 Countersunk - M10 x 70 mm 1 Q-006-1112 Hex Head - M8 x 16 mm 64 Q-006-1120 Hex Head - M10 x 90 mm 22 Q-006-1132 Hex Head - M10 x 30 mm 2 Q-006-1161 Locking Nut M8 64 Q-006-1181 Hex Head - M10 x 40 4 Q-006-1208 Hex Head Fully Threaded - M10 x 50 mm 18 Q-006-1343 Extra Low Head - M10 x 90 mm 14 Q-006-1381 Self Tapping Screw M6 Torx H60 x 16 116 Q-006-1384 M20 Locking Nut 1 Q-006-1405 Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410 Hex Head Fully Threaded - M10 x 60 mm 1 Q-006-1502 Floor Brake Handle (Europe) 1 Q-015-1052 Angled plate - 1388 mm 8 Q-016-0140 Flat Shelf - 1329 x 840 mm 4 Q-016-0141 Countersunk Towing Lock Pin - 25 mm 1 Q-017-0010 Towing Equipment - Locking Lip 1 Q-017-1015 Towing - Spring attachment 1 Q-017-1016 Locking lip attachment 1 Q-017-1043 Trigger Handle 1 Q-017-1050 Rubber Bushing 498030 1 Q-017-1062 Tow Hole 28 mm - Symmetric 1 Q-017-1066 Tow Attachment to Beam 1 Q-017-1080 Show all More info This shelf cart comes equipped with four flat shelves. It is designed to transport totes, bins and boxes. The shelves can be easily adjusted higher and lower depending on your materials. An ergonomic handlebar is also attached for easier manual transportation. A wire release tow bar is attached so the cart can be transported via tugger train. The purpose of the wire release is to improve ergonomics and reduce bending/flexing by the operators.
