Shelf Cart - 1260 x 910 mm

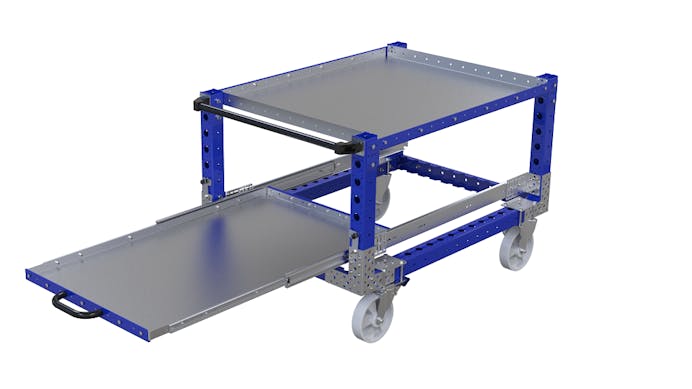

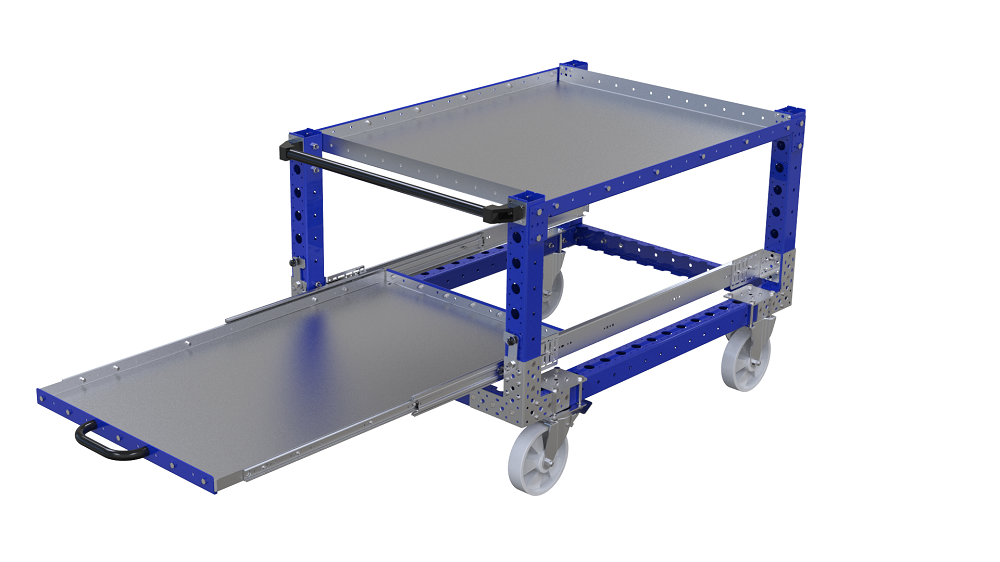

Custom designed shelf cart with one flat shelf and one extendable shelf.

Technical specifications

Category: Extendable Shelf, Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 36 inch

Length: 50 inch

Levels: 2

Load capacity: 201 lbs

Load Capacity per Level: 99 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This shelf cart was designed for transporting engine components throughout the facility. The engine components were placed on the top flat shelf. On the lower extendable shelf tools and ther smaller materials were placed. This cart is equipped with a handlebar to make it easier to transport manually.

Parts included
Outer Tube (No Plate) - 800 mm 1 Q-000-0076
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ 560 mm FE 8 Q-001-1409
Flexplate M10 Countersunk 2 Q-002-0009
FlexPlate™ 6 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
Modular Attachment Plate for Telescopic Lists 4 Q-005-0041
Telescopic Slide 42 inch closed 2 Q-005-0563
Spherical Knob 2 Q-005-1146
Handle for 30 mm Tube 2 Q-005-1240
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 4 Q-005-1426
Locking Handle Plate 2 Q-005-1880
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 56 Q-006-1042
Locking Nut M6 20 Q-006-1050
Round Head - M6 x 12 mm 12 Q-006-1051
Hex Head - M8 x 16 mm 26 Q-006-1120
Hex Head - M10 x 90 mm 24 Q-006-1132
Locking Nut M8 24 Q-006-1181
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 8 Q-006-1385
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handle Bar 210 mm M8 1 Q-015-1037
Telescopic Shelf - 1250 x 649 mm 1 Q-016-0391
Angled plate for telescopic shelf - 639 mm 2 Q-016-0392
Flat Shelf - 1120 x 910 mm 1 Q-016-0416
Angled Plate - 1248 mm 2 Q-016-1238
