Q-100-0738

Shelf Cart - 1260 x 840 mm

Custom designed shelf cart for smaller engine components.

100% free. No commitment.

Automotive 705 lbs
load capacity

Shelf Cart – 1260 x 840 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Flat Shelf
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Width	33 inch
Length	50 inch
Levels	2
Load capacity	705 lbs
Load Capacity per Level	551 lbs, 154 lbs
Transportation method	Manual
Caster size	8 inch
Caster Type	Polyurethane
Type of Load	Bins, Boxes, Totes

More info

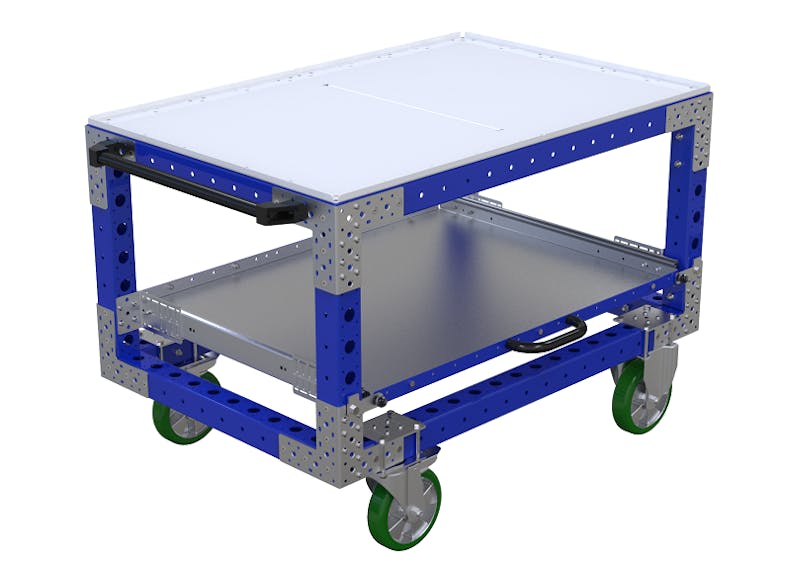

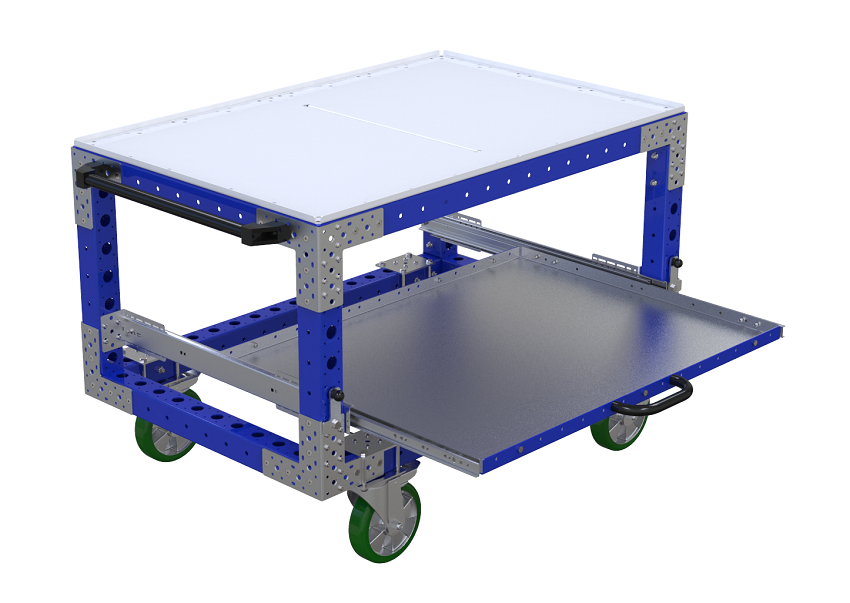

This shelf cart is used for transporting smaller engine componenets. But it is also ideal for transporting bins, totes and boxes. The top shelf is a standard flat shelf, while the lower shelf is extendable. It also comes with a handlebar for easier manual transportation.

Parts included

Outer Tube (No Plate) - 590 mm 1 Q-000-0074

FlexBeam™ 1190 mm 6 Q-001-1300

FlexBeam™ 840 mm FE 4 Q-001-1405

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexBeam™ 490 mm FE 8 Q-001-1410

FlexPlate™ 8 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Caster Polyurethane 200 mm with Brake 2 Q-004-1099

Caster Polyurethane 200 mm Fixed 2 Q-004-1101

Modular Attachment Plate for Telescopic Lists 4 Q-005-0041

Spherical Knob 2 Q-005-1146

Handle for 30 mm Tube 2 Q-005-1240

Beam to Beam Corner Plate 8 Q-005-1356

64 mm FlexBeam™ Collet 8 Q-005-1426

Locking Handle Plate 2 Q-005-1880

M6 x 20 K6S 10.9 Round Head (black) 4 Q-006-1018

Locking Nut M10 78 Q-006-1042

Washer M10 2 Q-006-1043

Locking Nut M6 12 Q-006-1050

Round Head - M6 x 12 mm 8 Q-006-1051

Hex Head - M10 x 95 mm 2 Q-006-1088

Hex Head - M8 x 16 mm 9 Q-006-1120

Hex Head - M10 x 90 mm 16 Q-006-1132

Locking Nut M8 8 Q-006-1181

Hex Head - M10 x 20 mm 4 Q-006-1232

Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361

Extra Low Head - M10 x 90 mm 28 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 36 Q-006-1385

Low Allen Head - M10 x 16 mm 2 Q-006-1409

Extra Low Head Allen - M10 x 25 mm 26 Q-006-1410

Handle Bar 210 mm M8 1 Q-015-1037

Angled Plate for Telescopic Shelf - 1059 mm 2 Q-016-0121

Telescopic Shelf - 1070 x 830 mm 1 Q-016-0341

Top Plate EUR-pallet Cart 2 Q-016-1059
