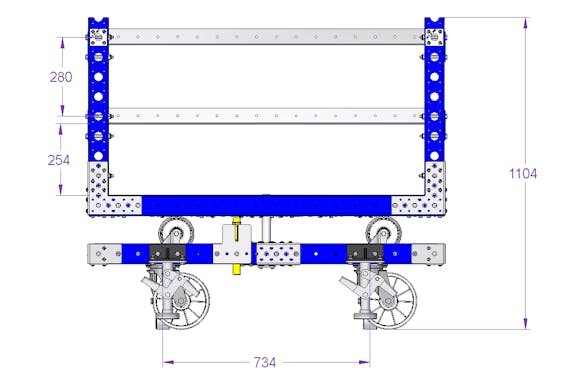

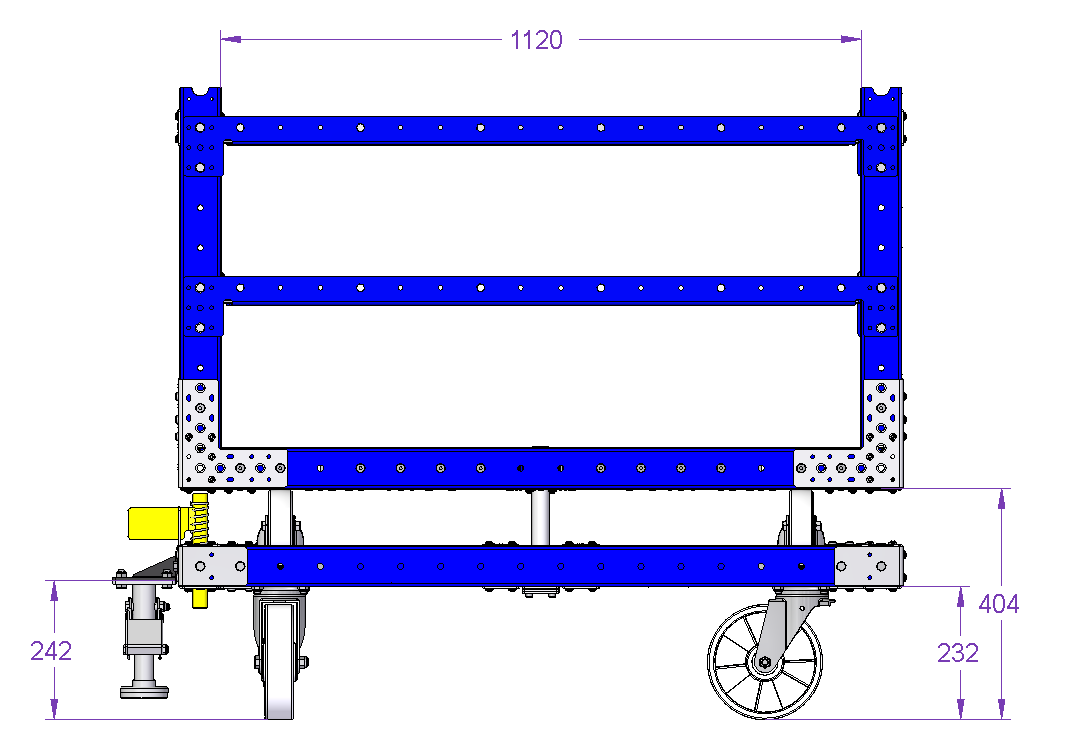

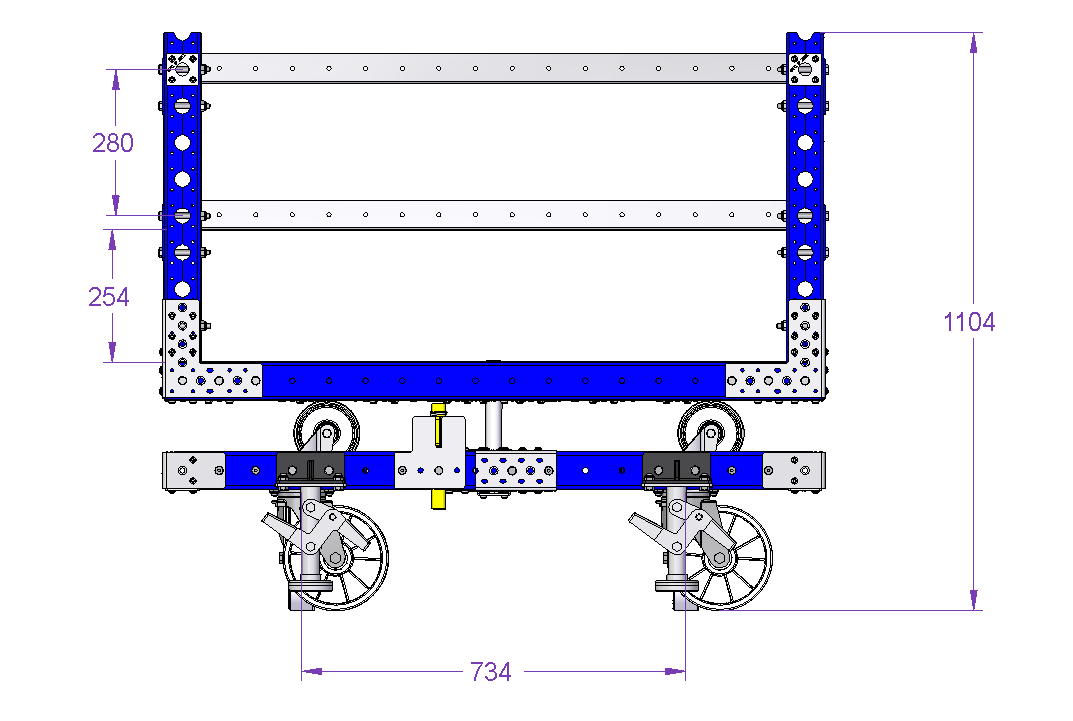

Rotating Shelf Cart - 1260 x 1260 mm
Rotating Shelf Cart - 1260 x 1260 mm
Rotating Shelf Cart - 1260 x 1260 mm
Q-100-0608

Rotating Shelf Cart - 1260 x 1260 mm

Custom designed rotating cart with two flat shelves.

Technical specifications

Category: Flat Shelf, Rotating

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 50 inch

Levels: 3

Load capacity: 595 lbs

Load Capacity per Level: 198 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Totes

More info

This rotating cart was designed to handle large plastic containers. The flat shelf underneath can hold different tools needed at the assembly line. It comes equipped with two floor lock brakes to keep the cart secure when not in use. It also has four polyamide casters for easier movability.

Parts included
Rotation Tube - 249 mm 1 Q-000-0047
FlexTube inner 210 1 Q-000-0060
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 630 mm 8 Q-001-1308
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 12 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ 30,5 mm hole 3 Q-002-1320
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm without Brake 4 Q-004-1352
Polyamide Caster - 125 mm 4 Q-004-1356
Floor Brake LTL - 200 mm 2 Q-004-1359
Rotation Lock Direction Plate 1 Q-005-0051
Wheel Attachment Box 4 Q-005-1079
Triangle Corner Plate 4 Q-005-1145
Beam to Beam Corner Plate 4 Q-005-1356
Floor Brake Plate 2 Q-005-1387
64 mm FlexBeam™ Collet 33 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Rotation Lock 1 Q-005-2020
Allen Head - M6 x 30 mm 4 Q-006-1012
Hex Head - M10 x 25 mm 24 Q-006-1041
Locking Nut M10 132 Q-006-1042
Hex Head - M8 x 16 mm 24 Q-006-1120
Hex Head - M10 x 90 mm 29 Q-006-1132
Hex Head - M10 x 30 mm 16 Q-006-1161
Locking Nut M8 24 Q-006-1181
Extra Low Head - M10 x 90 mm 41 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 226 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 44 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 23 Q-006-1410
69 - 18 mm Spring for 25 mm tube 1 Q-012-1050
US - 50 x 50 inch flat shelf 2 Q-016-0004
Rotating Top plate platform - 50 x 50 inch 1 Q-016-0174
Angled Plate - 1248 mm 4 Q-016-1238
