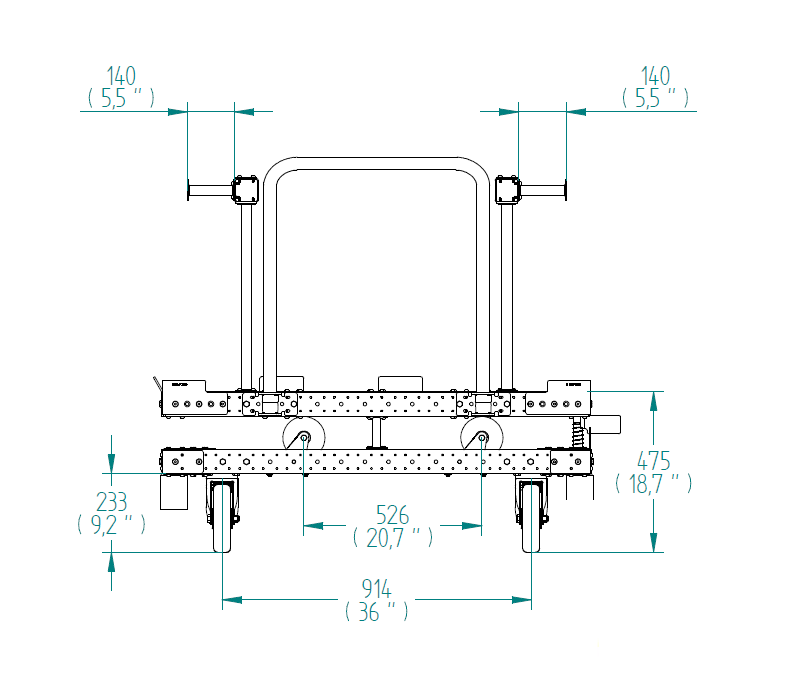

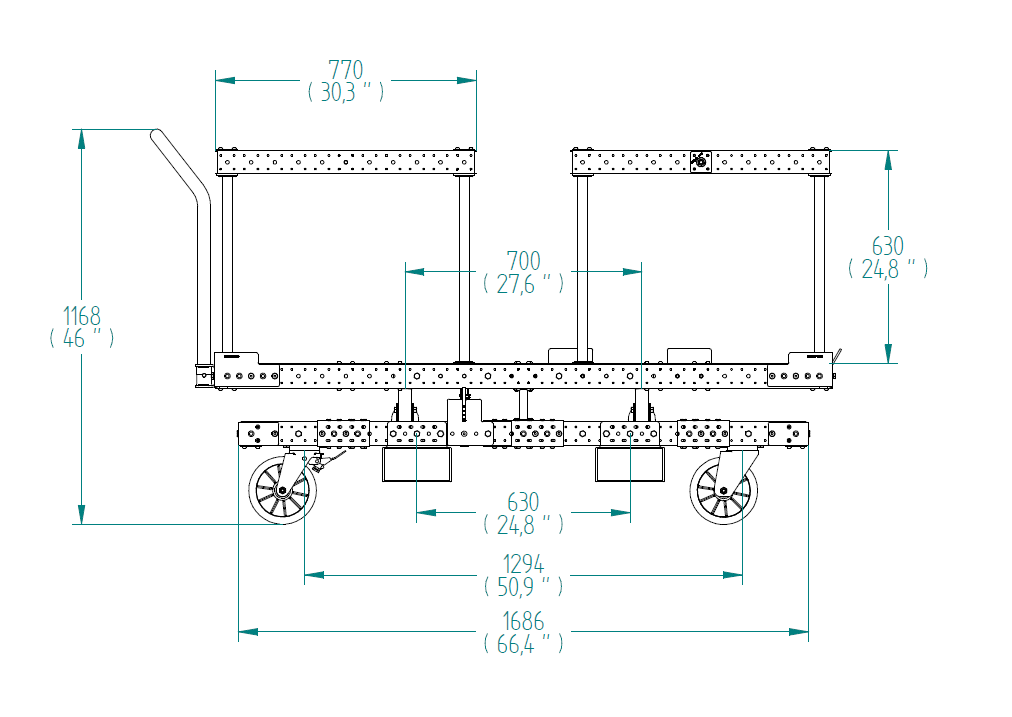

Rotating Platform Cart - 1260 x 1820 mm
Rotating Platform Cart - 1260 x 1820 mm
Rotating Platform Cart - 1260 x 1820 mm
Q-100-1700

Rotating Platform Cart - 1260 x 1820 mm

Rotating cart for parts with attached fork pockets, handlebar and polyurethane casters.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 72 inch

Width: 50 inch

Load capacity: 1499 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Misc parts

More info

This rotating cart is designed to carry parts of different sizes and shapes. The platform has beam & tube structures that help keep parts of irregular shapes in the footprint of the cart. The rotation gives access to the cart in each side allowing the operators to pick the pieces in the order they need for the assembly. The cart is equipped with fork pockets to use with lifting devices, a removable top bent handlebar and polyurethane casters.

Parts included
FlexTube (One Plate) - 76 mm 2 Q-000-0178
Solid Tube - 25,4 x 243 mm 1 Q-000-0179
FlexTube™ 140 mm - Locking Nut 2 Q-000-1102
FlexTube™ 560 mm 4 Q-000-1182
FlexPlate D36 1 Q-002-0018
FlexPlate™ 12 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyurethan 200 mm with Brake IP2 2 Q-004-1210
Caster Polyurethane - 200 mm Swivel 2 Q-004-1211
Polyamide Caster - 125 mm 4 Q-004-1356
L Bracket Joint 4 Q-005-0031
Rotation Lock Direction Plate 1 Q-005-0051
Fork Tunnel US - 80 mm 4 Q-005-0431
Euro Pallet Guide - 130 mm 4 Q-005-0519
Wheel Attachment Box 8 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Triangle Corner Plate 4 Q-005-1145
64 mm FlexBeam™ Collet 74 Q-005-1426
Heavy Duty Joint M10 6 Q-005-1580
Rotation Lock 1 Q-005-2020
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Hex Head - M10 x 25 mm 57 Q-006-1041
Locking Nut M10 167 Q-006-1042
Washer M10 8 Q-006-1043
Locking Nut M6 8 Q-006-1050
Hex Head - M10 x 90 mm 65 Q-006-1132
Extra Low Head - M10 x 90 mm 30 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 340 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 15 Q-006-1410
69 - 18 mm Spring for 25 mm tube 1 Q-012-1050
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate - 910 x 1260 mm 4 Q-016-0974
FlexBeam™ - 1120 mm 4 Q-020-1120
FlexBeam™ FE - 1610 mm 4 Q-020-1610
