Rotating Cart - 1330 x 1540 mm
Rotating Cart - 1330 x 1540 mm
Rotating Cart - 1330 x 1540 mm
Rotating Cart - 1330 x 1540 mm
Rotating Cart - 1330 x 1540 mm
Q-100-1793

Rotating Cart - 1330 x 1540 mm

Rotating cart for pallets/containers, it comes attached with a floor brake and polyurethane casters.

Technical specifications

Category: Rotating

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Width: 52 inch

Length: 61 inch

Load capacity: 2205 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

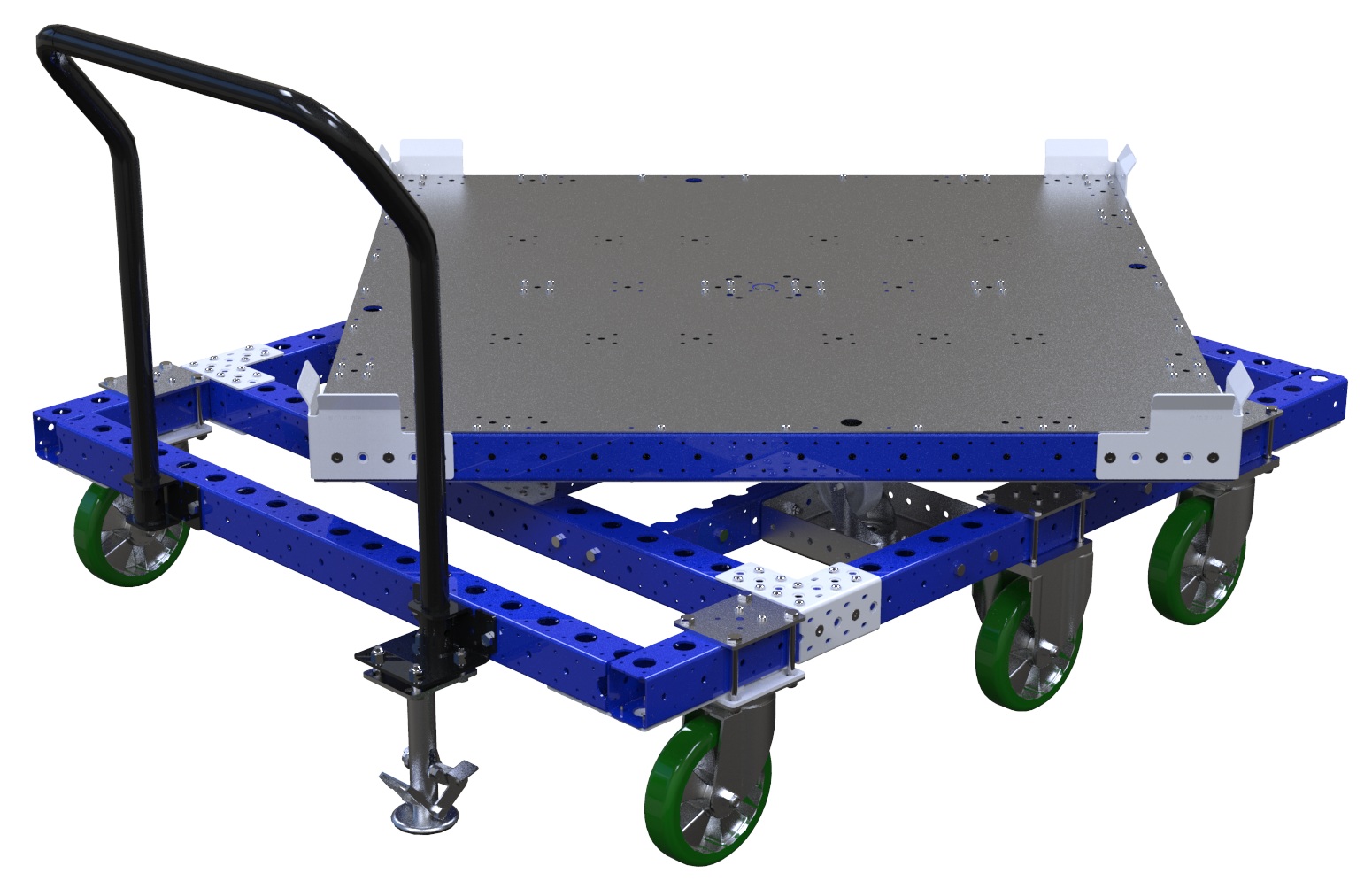

This rotating cart for pallets or containers gives the operators access to both sides of the cart to load from the same standing point thanks to its rotating platform and locking for 180 degrees rotating position. The cart is equipped with a handlebar, corner pallet guides, floor brake and six 200 mm polyurethane casters for heavy duty applications.

Parts included
FlexTube (One Plate) - 76 mm 2 Q-000-0178
Solid Tube - 25,4 x 208,5 mm 1 Q-000-0187
FlexPlate D36 1 Q-002-0018
FlexPlate™ 2 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 16 Q-004-1065
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake - 200 mm 1 Q-004-1613
L Bracket Joint 4 Q-005-0031
Triangle Joint 2 Q-005-0483
Countersunk Wheel Attachment - 105 x 77.5 mm 2 Q-005-0647
Triangle Joint With Notch 4 Q-005-0832
Rotation Lock Short 1 Q-005-0987
Rotation Lock Plate Short 1 Q-005-0989
Wheel Attachment Box 4 Q-005-1079
Angled Corner Plate 4 Q-005-1098
Triangle Corner Plate 4 Q-005-1145
64 mm FlexBeam™ Collet 30 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
M10 Collet - 15 mm 4 Q-006-0027
Fully Threaded - M10 x 120 mm 8 Q-006-1037
Hex Head - M10 x 25 mm 16 Q-006-1041
Locking Nut M10 105 Q-006-1042
Washer M10 8 Q-006-1043
M6 Washer 4 Q-006-1076
Hex Head - M10 x 90 mm 29 Q-006-1132
Locking Nut M8 16 Q-006-1181
Hex Head - M10 x 40 4 Q-006-1208
Hex Head - M10 x 100 mm 16 Q-006-1302
Extra Low Head - M10 x 90 mm 18 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 309 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 4 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 15 Q-006-1410
Spring for 25 mm Tube - 44,5 mm 1 Q-012-0043
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Rotating Platform Top Plate - 50 x 50 Inch 2 Q-016-0020
FlexBeam™ - 1120 mm 4 Q-020-1120
FlexBeam™ - 1190 mm 8 Q-020-1190
