Rotating Cart - 1260 x 1260 mm
Rotating Cart - 1260 x 1260 mm
Rotating Cart - 1260 x 1260 mm
Rotating Cart - 1260 x 1260 mm
Rotating Cart - 1260 x 1260 mm
Q-100-1818

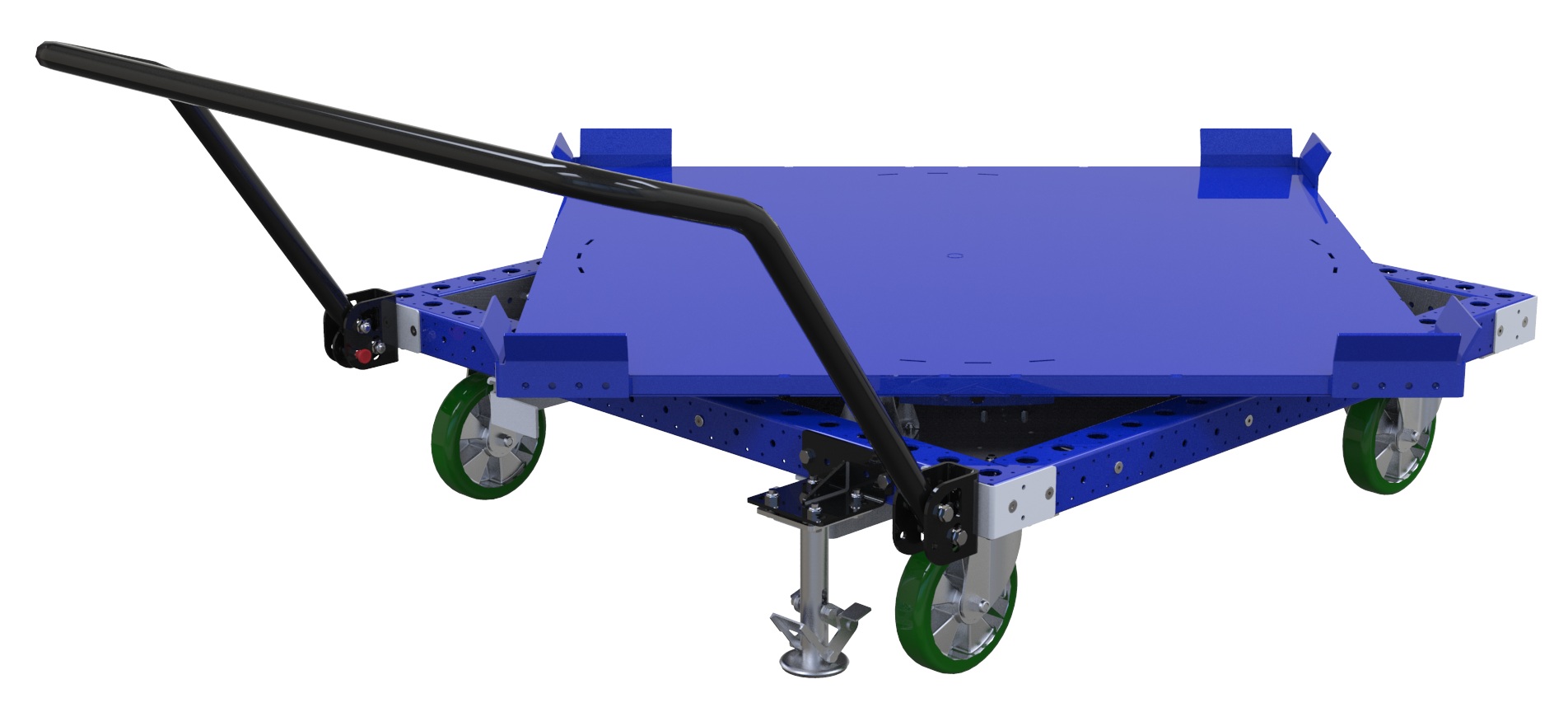

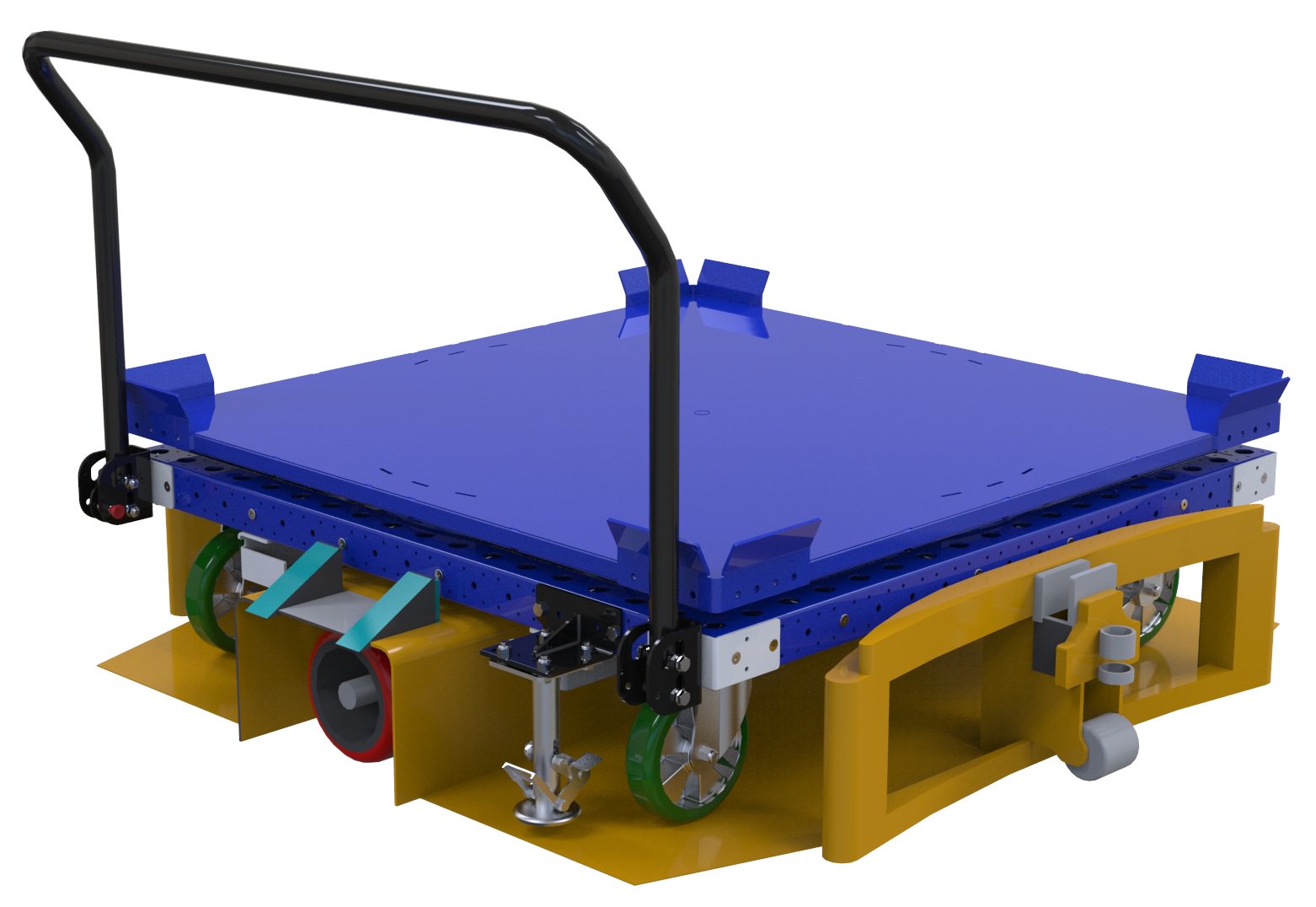

Rotating Cart - 1260 x 1260 mm

This rotating cart is designed to transport pallets, boxes or containers. The rotating platform allows operators to access the materials from all sides.

Technical specifications

Category: Flat Deck, Rotating

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 50 inch

Load capacity: 2205 lbs

Transportation method: Manual

Caster size: 8 inch

More info

This cart can transport parts, boxes or pallets with light to medium loads. The platform is a rotating platform with corner pallet guides. This rotating platform makes it easier for operators to access the materials from all sides. A handlebar with two positions is attached and allows the rotation of the platform, and a floor friction brake and polyurethane casters are also equipped to the cart.

Parts included
FlexTube (One Plate) - 76 mm 1 Q-000-0178
FlexPlate D36 1 Q-002-0018
FlexPlate™ 8 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Caster Nylon - 80 mm (Low Bracket) 6 Q-004-0088
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 200 mm Swivel 2 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake - 200 mm 1 Q-004-1613
M10 - Collet - 6 mm 8 Q-005-0105
Indexing plunger GN 717-8-M12x1,5-B-ST 1 Q-005-0713
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 28 Q-005-1426
Rotating Platform Welded- 1260 x 1260 mm 1 Q-005-2426
Wheelbox Weld Assembly 2 Q-005-2427
Rotation Locking Fixture 1 Q-005-2429
Hex Head - M10 x 75 mm 4 Q-006-0077
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M10 x 25 mm 18 Q-006-1041
Locking Nut M10 63 Q-006-1042
Washer M10 32 Q-006-1043
Locking Nut M6 9 Q-006-1050
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 20 Q-006-1181
Countersunk Allen Head - M6 x 16 mm 8 Q-006-1197
Extra Low Head - M10 x 90 mm 29 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 40 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 20 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 6 Q-006-1410
Lift Table Guide Left - 1260 mm 1 Q-008-0007
Lift Table Guide Right - 1260 mm 1 Q-008-0008
Rotation Pin Lock - 150 x 19 mm 1 Q-011-0009
Compression Spring - 2 1 Q-012-0045
Rotation Handlebar - 1174 mm 1 Q-015-0136
Rotation Handlebar Attachment 2 Q-015-0138
FlexBeam™ - 1120 mm 2 Q-020-1120
FlexBeam™ - 1190 mm 4 Q-020-1190
