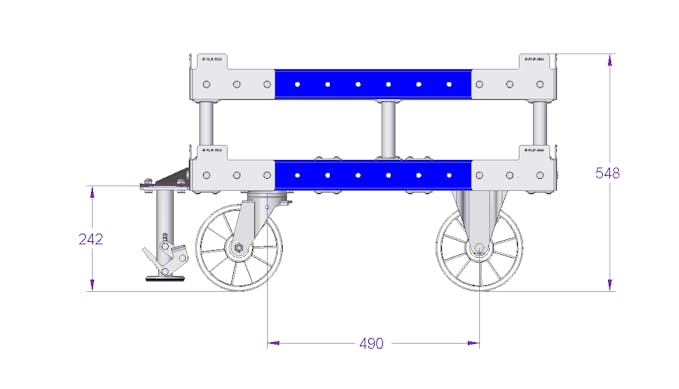

Push Cart - 1260 x 840 mm
Push Cart - 1260 x 840 mm
Push Cart - 1260 x 840 mm
Push Cart - 1260 x 840 mm
Q-100-0793

Push Cart - 1260 x 840 mm

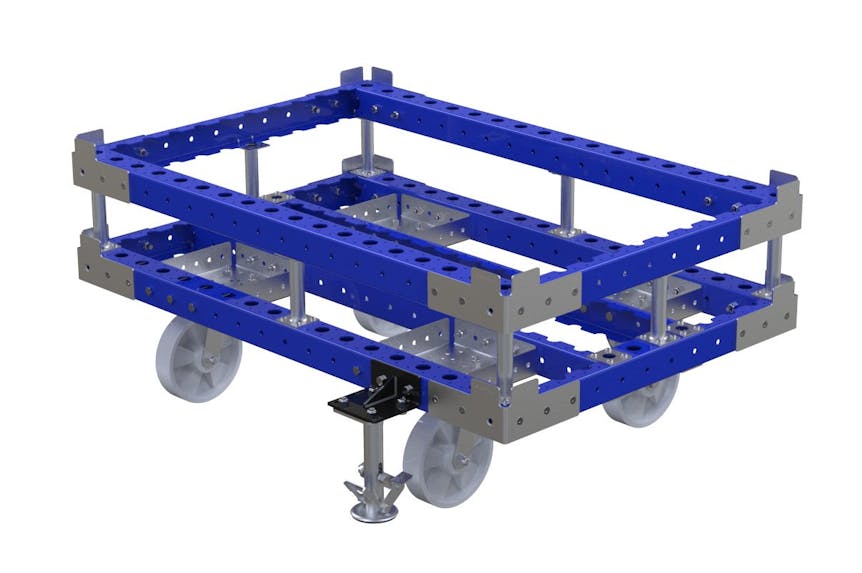

Custom designed push cart with added top structure.

Technical specifications

Category: Standard

Industry: Automotive, Distribution, Industrial Machinery

Width: 33 inch

Length: 50 inch

Load capacity: 992 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This push cart is a narrower version of Q-100-0789. It is designed for transporting smaller containers, bins and boxes. It comes equipped with a floor lock brake to keep the cart secure when not in use. This cart can have a tow bar and handlebar added for improved transportation.

Parts included
FlexTube™ 140 mm - Locking Nut 8 Q-000-1102
FlexBeam™ 1190 mm 10 Q-001-1300
FlexBeam™ 210 mm 2 Q-001-1314
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexPlate™ 12 Q-002-1001
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
US Floor Brake - 200 mm 1 Q-004-1613
Wheel Attachment Box 4 Q-005-1079
Pallet Guide Corner Plate 8 Q-005-1096
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 20 Q-005-1426
Hex Head - M10 x 25 mm 32 Q-006-1041
Locking Nut M10 84 Q-006-1042
Washer M10 4 Q-006-1043
Hex Head - M10 x 90 mm 12 Q-006-1132
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 108 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
