Pallet Trolley - 1260 x 840 mm
Pallet Trolley - 1260 x 840 mm for STILL Liftrunner B-frame US Version
Pallet Trolley - 1260 x 840 mm for STILL Liftrunner B-frame US Version
Pallet Trolley - 1260 x 840 mm for STILL Liftrunner B-frame US Version
Pallet Cart - 1260 x 840 mm
Q-100-0492

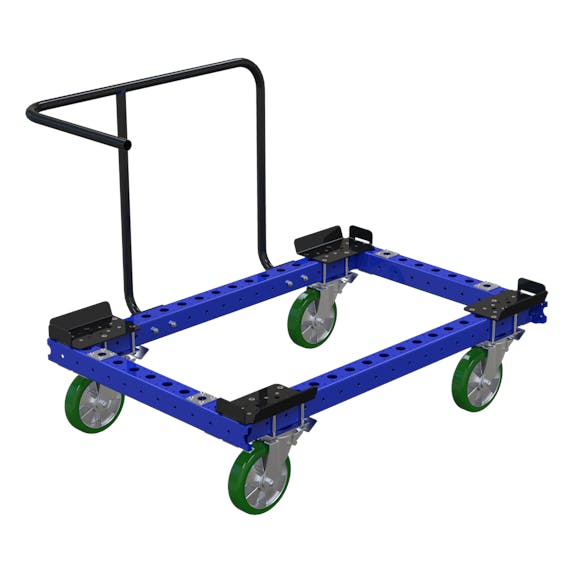

Pallet Trolley - 1260 x 840 mm

Standard push cart for transporting pallets in STILL Liftrunner B-frame US Version.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 50 inch

Load capacity: 1102 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Pallets and Containers

More info

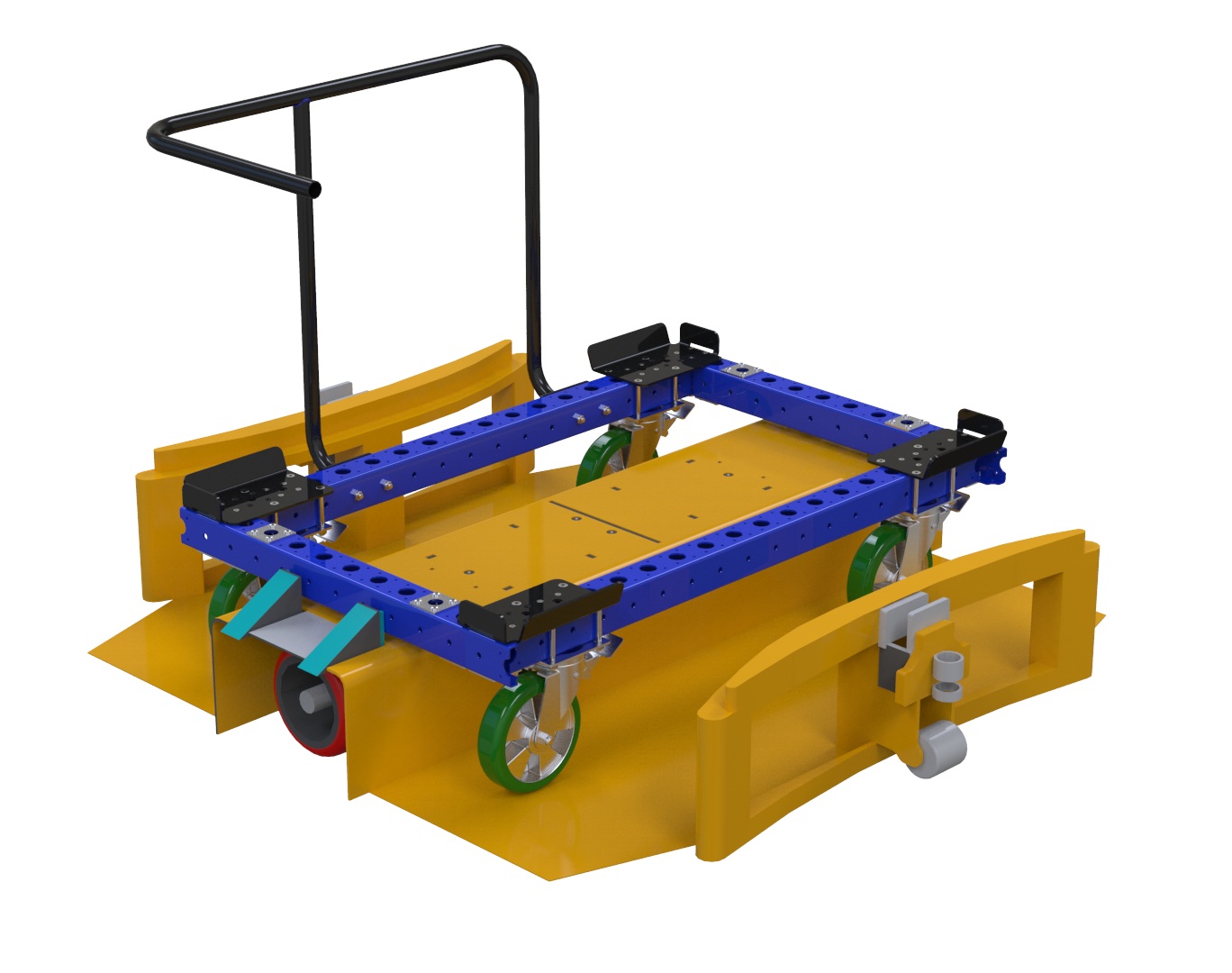

This pallet cart was designed without steel flat deck and is used for pallets and containers. It is equipped with an ergonomic handlebar for easier manual transportation. It is compatible with the B-Frame in the STILL Liftrunner Tugger Train system. It has four high quality polyurethane casters for easier manual handling.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 840 mm 2 Q-001-1305
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexPlate™ 12 Q-002-1001
Polyurethan 200 mm with Brake IP2 4 Q-004-1210
Pallet Guide Wheel Attachment Right 2 Q-005-0062
Pallet Guide Wheel Attachment Left 2 Q-005-0063
64 mm FlexBeam™ Collet 4 Q-005-1426
Locking Nut M10 20 Q-006-1042
Hex Head - M10 x 90 mm 4 Q-006-1132
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 48 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 32 Q-006-1385
Two-Sided Handle 1190 FlexBeam™ 1 Q-015-1025
