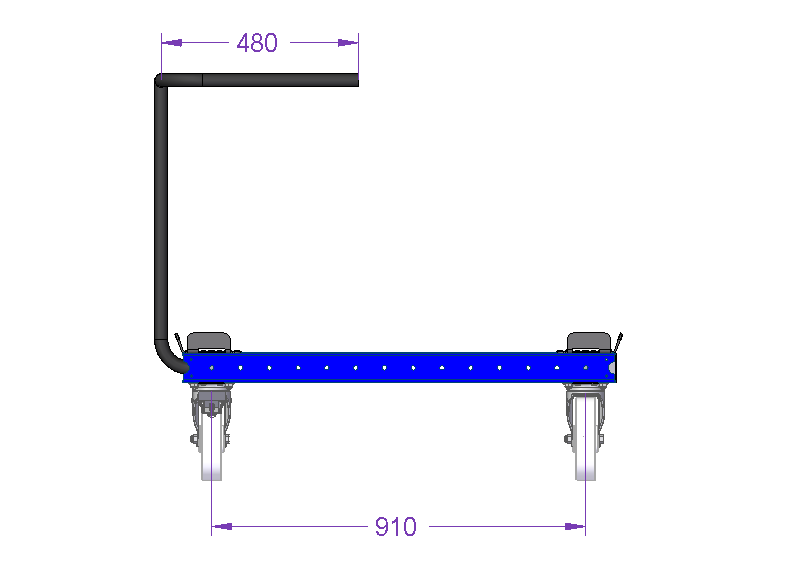

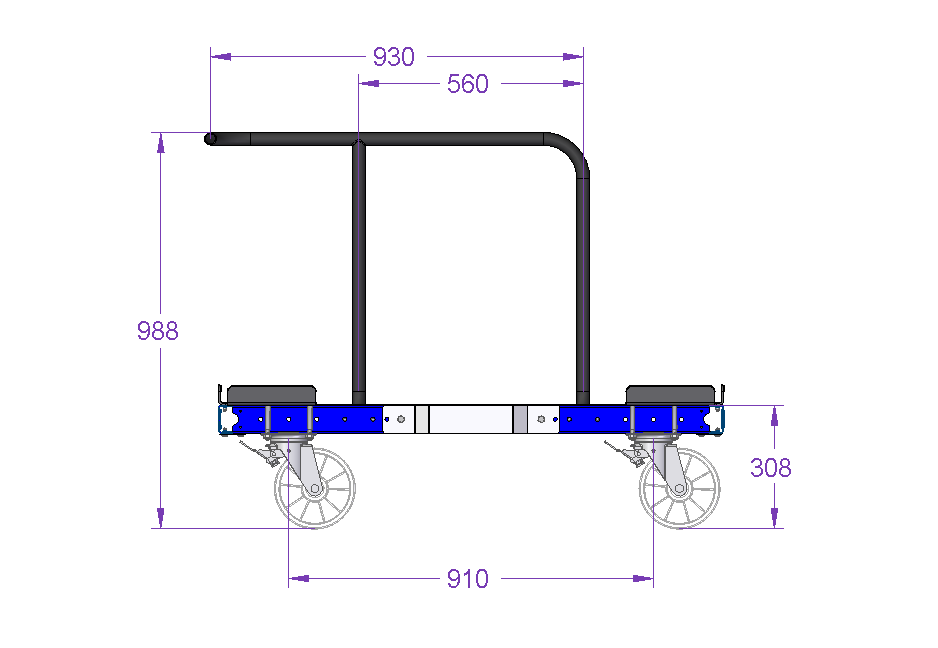

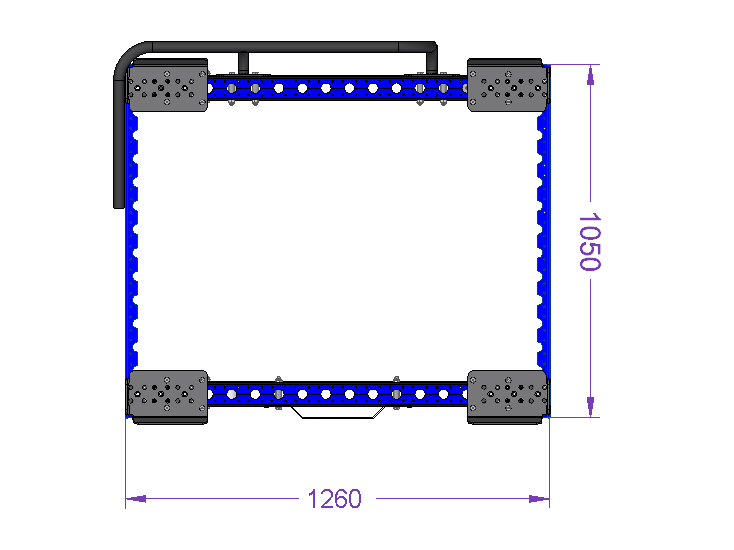

Pallet Trolley 1260 x 1050 mm
Pallet Trolley 1260 x 1050 mm
Pallet Trolley 1260 x 1050 mm
Pallet Trolley 1260 x 1050 mm
Q-100-0504

Pallet Trolley 1260 x 1050 mm

Standard pallet trolley without steel flat deck.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 41 inch

Length: 50 inch

Load capacity: 1102 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Polyamide

Type of Load: Pallets and Containers

More info

This pallet cart is designed to transport pallets and containers. It is equipped with an ergonomic handlebar for easier manual transportation. This cart is compatible with the STILL LiftRunner Tugger Train System. it has four high quality polyamide casters attached for easier handling. Donaldson Filtration Solutions uses this solution in Italy.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1050 mm 2 Q-001-1302
FlexPlate™ 4 Q-002-1001
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Pallet Guide Wheel Attachment Right 2 Q-005-0062
Pallet Guide Wheel Attachment Left 2 Q-005-0063
64 mm FlexBeam™ Collet 6 Q-005-1426
Locking Nut M10 22 Q-006-1042
Hex Head - M10 x 90 mm 6 Q-006-1132
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 32 Q-006-1385
Two-Sided Handle 1190 FlexBeam™ 1 Q-015-1025
Tugger Train Opener - 38 mm 1 Q-019-1002
