Pallet Cart - 770 x 840 mm
Pallet Cart - 770 x 840 mm
Pallet Cart - 770 x 840 mm
Pallet Cart - 770 x 840 mm
Q-100-1165

Pallet Cart - 770 x 840 mm

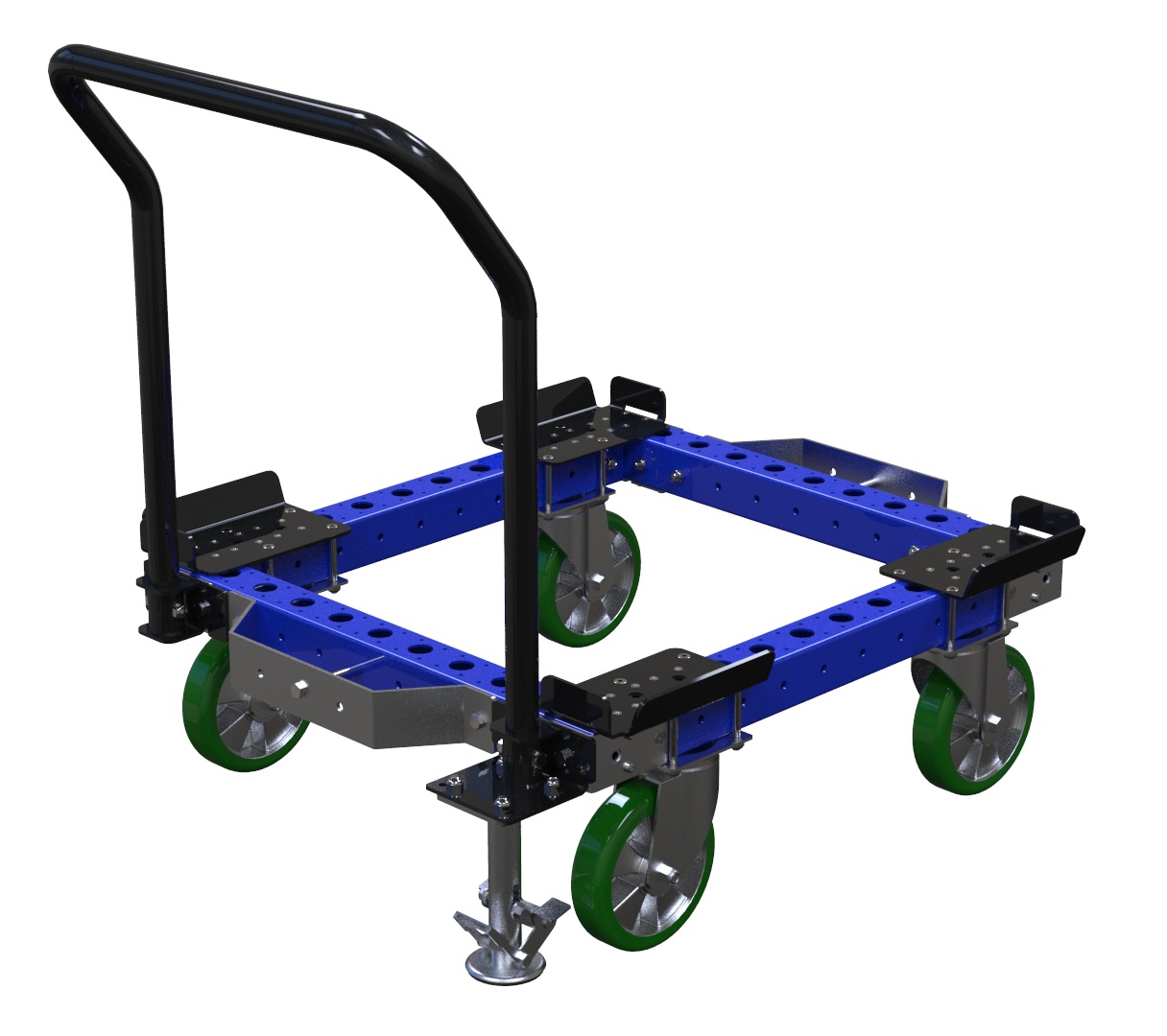

Pallet push cart equipped with a handlebar and four polyurethane swivel casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 33 inch

Load capacity: 2425 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

Push cart used for the transportation of pallets and containers, can also be used in a frame. The cart is equipped with a handlebar, floor brake and four polyurethane swivel casters making it easy to move manually.

Parts included
FlexBeam™ 770 mm 2 Q-001-1306
FlexBeam™ 700 mm 2 Q-001-1307
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 8 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
US Floor Brake - 200 mm 1 Q-004-1613
Pallet Guide Wheel Attachment Right 2 Q-005-0062
Pallet Guide Wheel Attachment Left 2 Q-005-0063
64 mm FlexBeam™ Collet 12 Q-005-1426
Fully Threaded - M10 x 120 mm 2 Q-006-1037
Hex Head - M10 x 25 mm 6 Q-006-1041
Locking Nut M10 40 Q-006-1042
Hex Head - M10 x 90 mm 6 Q-006-1132
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 40 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 48 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
