Pallet Cart 2380 x 1050 mm
Pallet Cart 2380 x 1050 mm
Pallet Cart 2380 x 1050 mm
Q-007-1912

Pallet Cart 2380 x 1050 mm

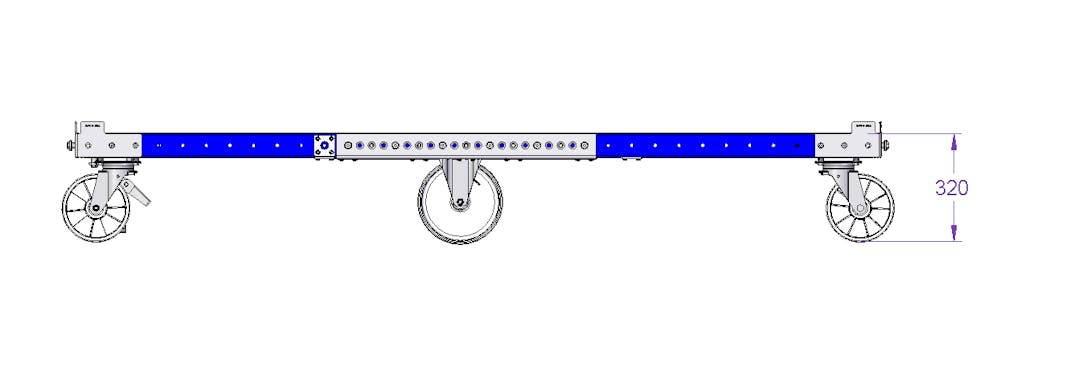

Large pallet cart without flat deck designed for long/large materials.

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 41 inch

Length: 94 inch

Load capacity: 2205 lbs

Transportation method: Manual

Caster size: 8 inch, 10 inch

Caster Type: Nylon

More info

This large pallet cart is used to transport long/large parts but can also be used to transport pallets and containers. It is equipped with six high quality polyamide casters for easier manual transportation. It also has a floor lock brake to keep the cart secure when not in use.

Parts included
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexPlate™ 8 Q-002-1001
Fixed Polyamide Caster - 250 mm 2 Q-004-1290
Floor Brake LTL - 200 mm 1 Q-004-1359
Wheel Box Support - 908 mm 2 Q-005-1020
Wheel Attachment Box 7 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Reinforcement Plate - 770 mm 2 Q-005-1112
Triangle Corner Plate 4 Q-005-1145
Caster Distance Collet - 18 mm 16 Q-005-1396
64 mm FlexBeam™ Collet 12 Q-005-1426
Hex Head - M10 x 25 mm 32 Q-006-1041
Locking Nut M10 88 Q-006-1042
Washer M10 8 Q-006-1043
Countersunk - M10 x 100 mm 12 Q-006-1136
Hex Head - M10 x 40 32 Q-006-1208
Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 72 Q-006-1384
Washer - 30 x 5 mm 16 Q-015-1046
Collet - 10 mm 16 Q-015-1047
Polyamide Caster 200 mm without Brake 4 Q-004-1352
