Pallet Cart - 1540 x 840 mm
Pallet Cart - 1540 x 840 mm
Pallet Cart - 1540 x 840 mm
Pallet Cart - 1540 x 840 mm
Q-100-0518

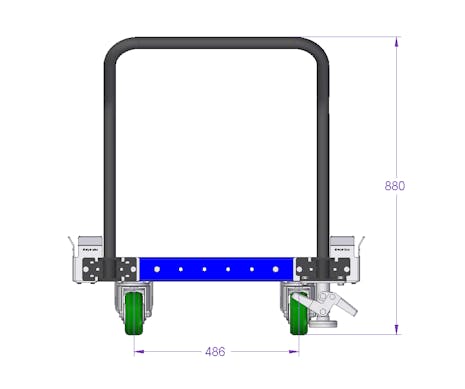

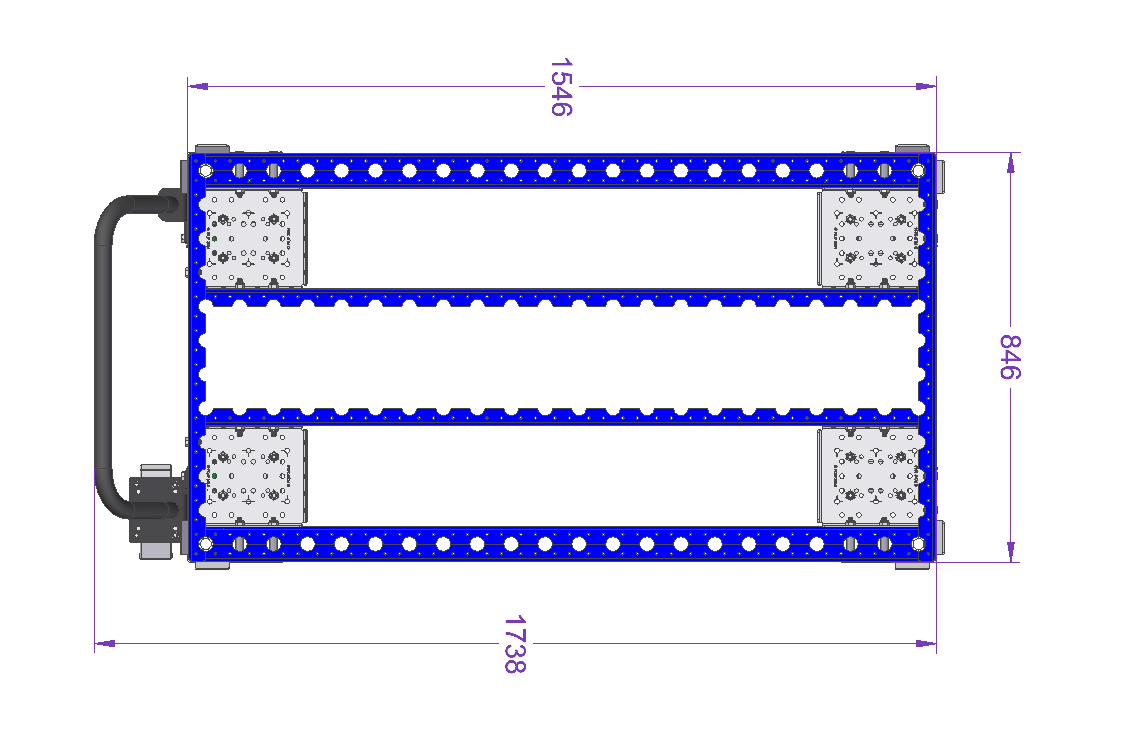

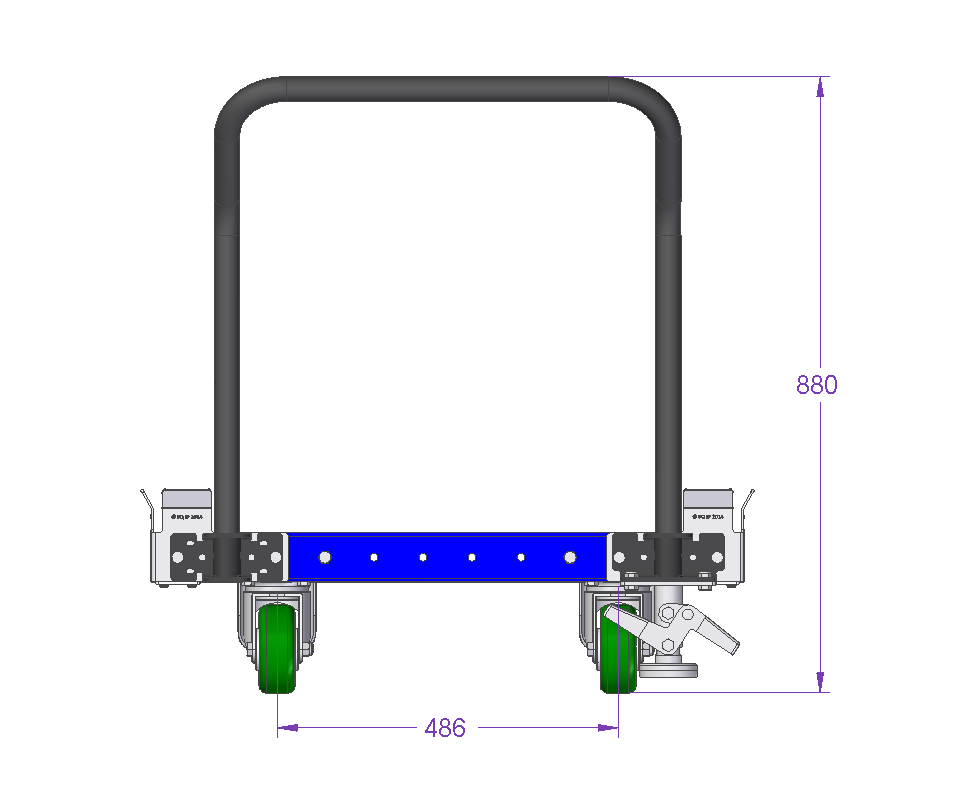

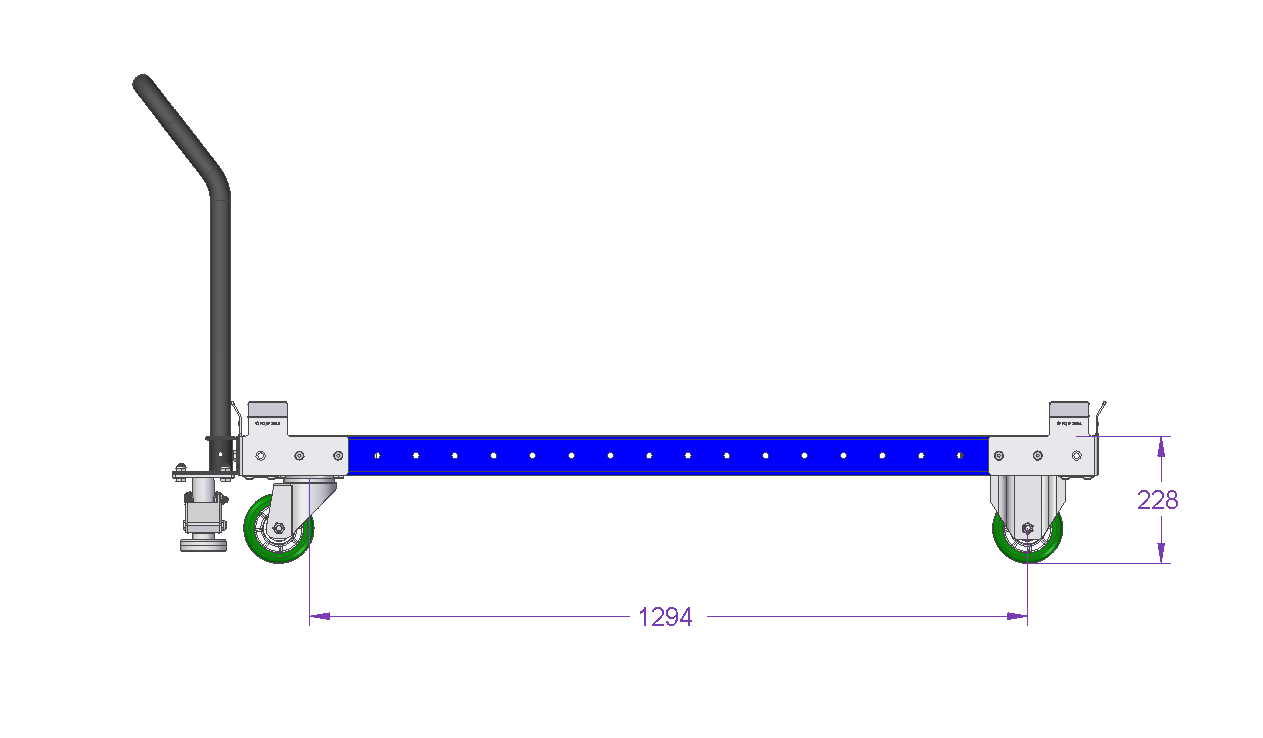

Pallet Cart - 1540 x 840 mm

Standard pallet cart without steel flat deck

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 61 inch

Width: 33 inch

Load capacity: 1102 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This pallet cart was designed to improve the transportation of pallets, but can also transport containers. It comes equipped with an ergonomic handlebar for easier manual transportation. There are four high quality polyurethane casters for easier handling. A floor lock brake is also attached to keep the cart secure when not in use.

Parts included
FlexBeam™ - 1470 mm 6 Q-001-1296
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 4 Q-002-1001
Caster Polyurethane - 125 mm 2 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Floor Brake LTL - 125 mm 1 Q-004-1360
Wheel Attachment Box 4 Q-005-1079
Angled Corner Plate 4 Q-005-1098
64 mm FlexBeam™ Collet 8 Q-005-1426
Hex Head - M10 x 25 mm 34 Q-006-1041
Locking Nut M10 48 Q-006-1042
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 6 Q-006-1410
Handlebar Attachment EUR 1 Q-015-0026
Handlebar / Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
