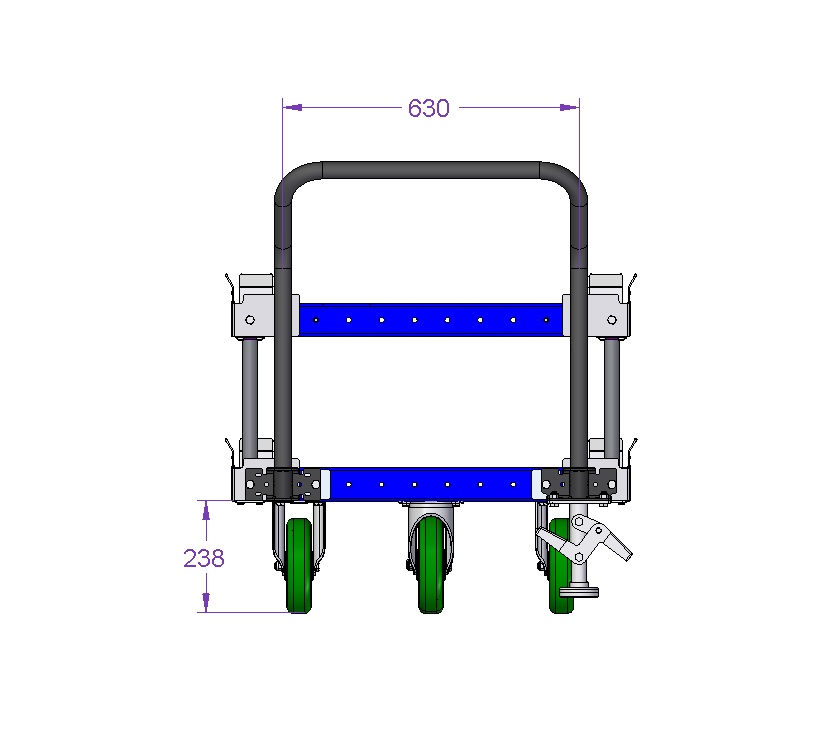

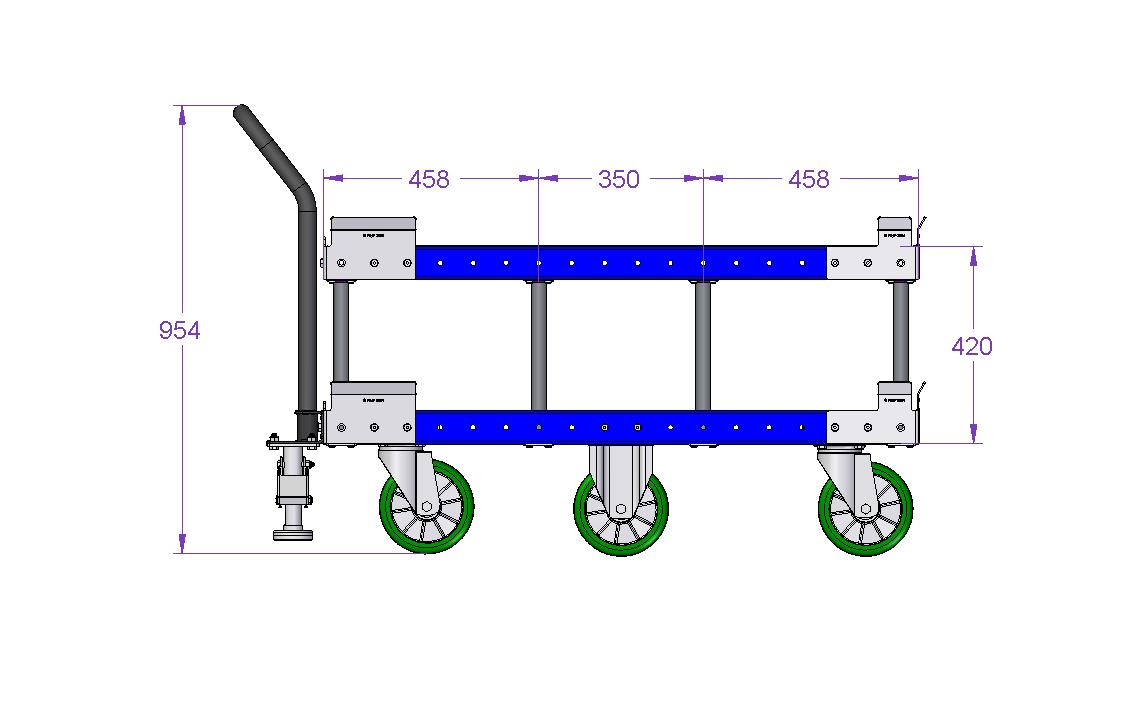

Pallet cart 1280 x 840 mm
Pallet cart – 1280 x 840 mm
Pallet cart – 1280 x 840 mm
Pallet cart – 1280 x 840 mm
Q-100-0398

Pallet cart 1260 x 840 mm

Pallet push cart with a raised platform. The cart is equipped with a handlebar, floor brake and four polyurethane casters.

Technical specifications

Category: Standard

Industry: Appliances & Electronics, Automotive, Defense Equipment, Distribution, Industrial Machinery

Length: 50 inch

Load capacity: 1764 lbs

Transportation method: Manual

Width: 33 inch

Caster size: 8 inch

Caster Type: Polyurethane

More info

Pallet push cart with a raised platform which gets the pallet into a more ergonomic loading height. The cart is equipped with a handlebar, floor brake and four polyurethane casters, two fixed and two swivel making it very easy to maneuver in tight areas.

Parts included
Outer tube (One Plate) 350 mm 8 Q-000-1414
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 840 mm FE 4 Q-001-1405
Flexplate™ M10 10 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 3 Q-004-1065
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
Wheel Attachment Box - 700 mm 2 Q-005-1004
Wheel Attachment Box Middle - 700 mm 1 Q-005-1005
Left Angle Corner Plate 2 Q-005-1097
Angled Corner Plate 4 Q-005-1098
Right Angle Corner Plate 2 Q-005-1099
64 mm FlexBeam™ Collet 20 Q-005-1426
Hex Head - M10 x 25 mm 28 Q-006-1041
Locking Nut M10 60 Q-006-1042
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 64 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handlebar Attachment EUR 1 Q-015-0026
Handlebar / Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
